Side DK-12
S
T
-H T
ransduc
er –
DRIFTSVEJLEDNI
NG
7ML19985Q
K82
mmmm
m
Dan
sk

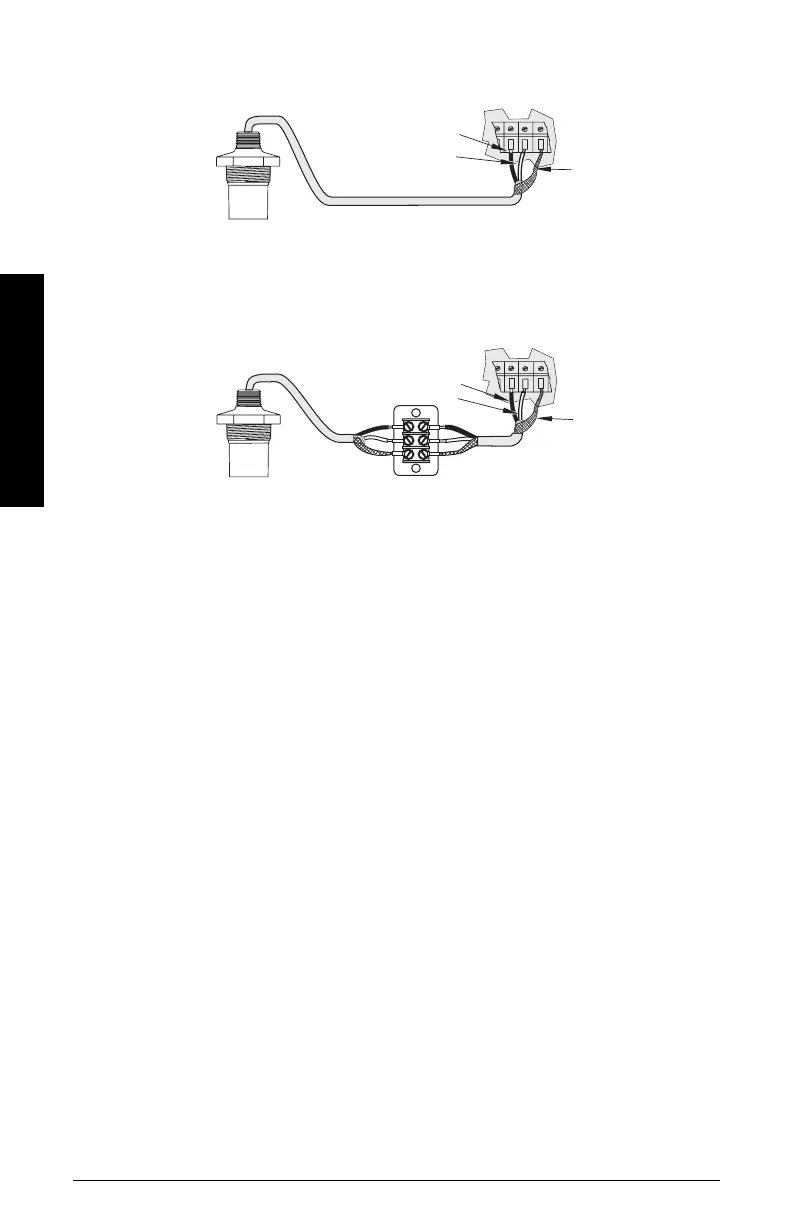

3-terminal direkte t
ilslutning*
3-terminal forlængelse*
* Kun for SITRANS LUC500, MultiRanger 10
0/20
0 og Hydr
oRanger 20
0
hvid
sort
skærm
hvid
sort
skærm
Forlæng kablet vha. 0
,823 mm
2
(18 A
WG) afskærmet/par
snoet kabel.
25
27
Table of Contents
Safety Guidelines
3
General Guidelines
5
Instructions Specific to Hazardous Area Installations (Reference European ATEX Directive 94/9/EC, Annex II, 1/0/6)
6
Safety Precautions
7
Specifications
8
Outline and Dimensions
9
Mounting - Solids Applications
10
Mounting - Liquids Applications
11
Direct Connection
13
Coaxial Extension
13
Generel Vejledning
17
Tekniske Data
20
Omrids Og Dimensioner
21
Montage
22
Montage - Anvendelser Med Faste Stoffer
22
Montage - Anvendelser Med Væsker
23
Direkte Forbindelse
25
Koaksial Forlængelse
25
Sicherheitstechnische Hinweise
27
Allgemeine Richtlinien
29
Technische Daten
32
Montage - Applikationen mit Schüttgütern
34
Montage - Applikationen mit Flüssigkeiten
35
Direkter Anschluss
37
Manual del Usuario ST-H
51
Indicaciones de Seguridad
51
Indicaciones Generales
53
Precauciones de Seguridad
55
Datos Técnicos
56
Esquema de Dimensiones
57
Montaje
58
Montaje - Aplicaciones con Sólidos
58
Montaje - Aplicaciones con Líquidos
59
Conexión Directa
61
Extensión Coaxial
61
Conexión Directa, 3 Bornes
62
Extensión 3 Bornes
62
Consignes de Sécurité
63
Consignes Générales
65
Mesures de Sécurité
67
Caractéristiques Techniques
68
Montage
70
Montage - Applications Avec des Solides
70
Montage - Applications Avec des Liquides
71
Connexion Directe
73
Extension Coaxiale
73
Connexion Directe 3 Bornes
74
Manuale Operativo del Trasduttore ST-H
75
Indicazioni DI Sicurezza
75
Indicazioni Generali
77
Precauzioni Consigliate
79
Caratteristiche Tecniche
80
Sagoma E Dimensioni
81
Montaggio - Applicazioni in Solidi
82
Montaggio - Applicazioni in Liquidi
83
Collegamento Diretto
85
Estensione Coassiale
85
Collegamento Diretto 3 Morsetti
86
Estensione 3 Morsetti
86
Algemene Richtlijnen
89
Maatschets en Afmetingen
93
Montage - Stortgoedtoepassingen
94
Montage- Vloeistoftoepassingen
95
Directe Aansluiting
97
Coax Verlenging
97
ST-H Manual de Operações
99
Instruções de Segurança
99
Instruções Gerais
101
Precauções de Segurança
103
Esboço E Dimensões
105
Montagem - Aplicações Com Sólidos
106
Montagem - Aplicações Com Líquidos
107
Conexão Direta
109
Extensão Coaxial
109
Yleiset Periaatteet
113
Räjähdysvaarallisten Tilojen Asennusta Koskevat Ohjeet (ATEX-Direktiivi 94/9/EY, Liite II, Kohta 1/0/6)
114
Tekniset Tiedot
116
Muoto Ja Mitat
117
Asennus - Kiintoainesovellukset
118
Asennus - Nestesovellukset
119
Suora Liitäntä
121
Riktlinjer För Säkerhet
123
Allmänna Riktlinjer
125
Översikt Och Dimensioner
129
Montering - Tillämpningar Med Fasta Ämnen
130
Montering - Tillämpningar Med Vätskor
131
Koaxial Förlängning
133
