12 SDG1000 Service Manual
Set the Output Amplitude
The following steps show you how to change the amplitude to 100mVrms.
1. Press the Ampl/HLevel softkey
The displayed amplitude is either the power-on value or the amplitude
previously selected. When you change the function, the same amplitude is
used if the current value is valid for the new waveform. If you want to set the
HLevel for the waveform, press the softkey again, to switch the HLevel
parameter(The current operation is displayed in inverse color)

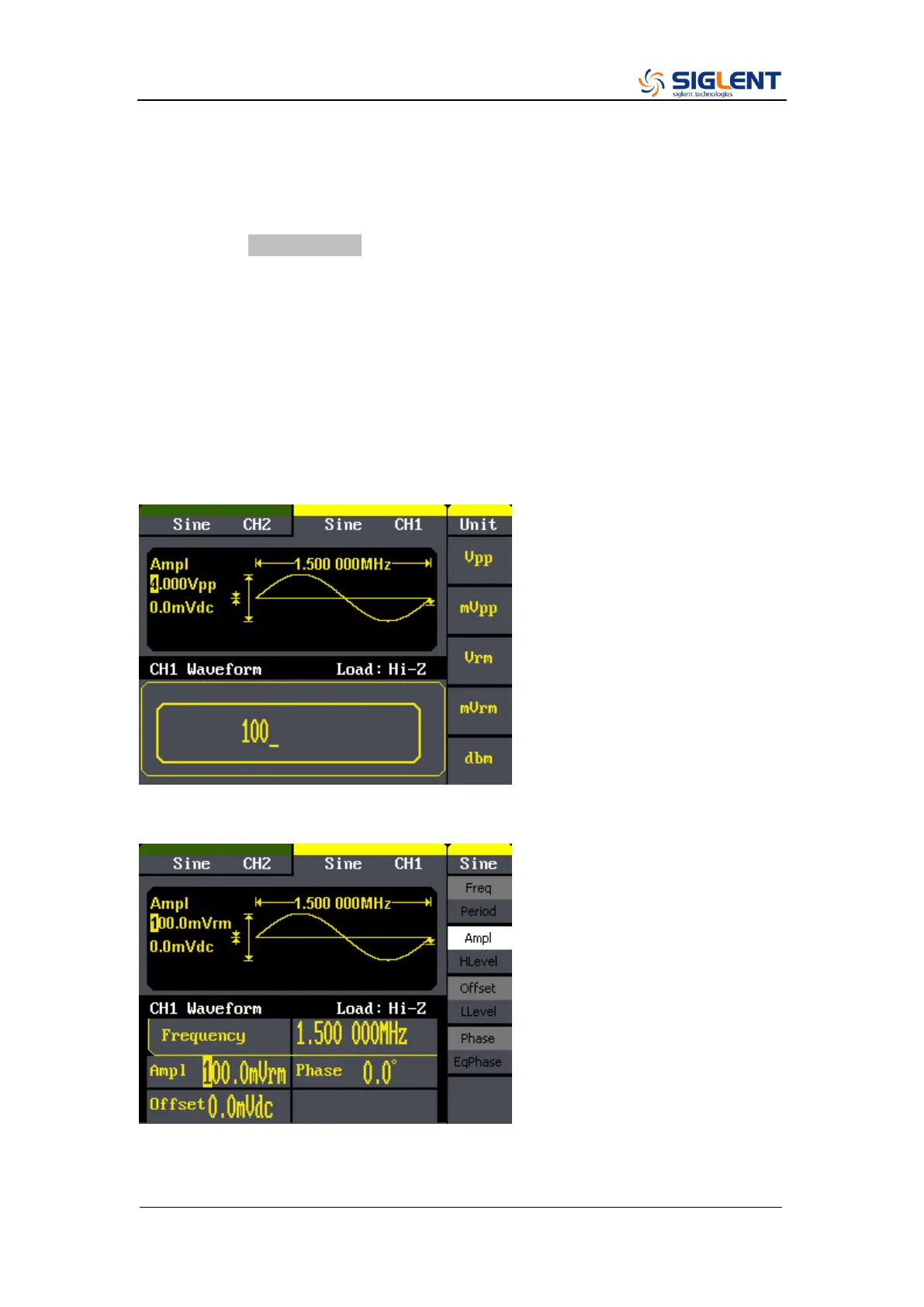

2. Input the desired amplitude
Use the digital keypad to input the value directly, enter the value “100”.
Then press the corresponding softkey to select the desired unit. For example,
press mVrm.
Note: You can also enter the desired value using the knob and direction keys.
To Next Page
