16 SDG1000 Service Manual

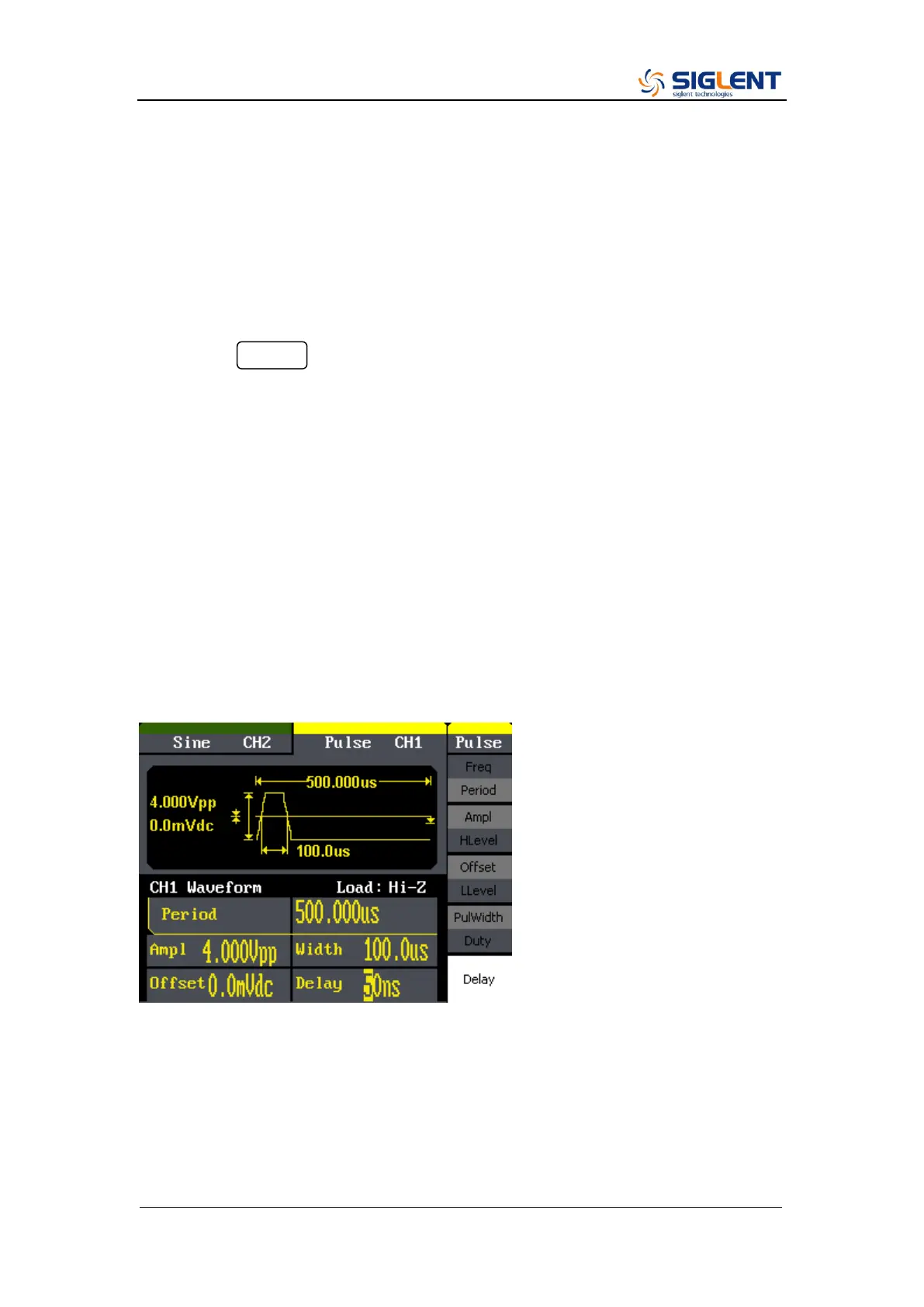

Generate a Pulse Waveform
You can set the generator to output a pulse waveform with variable width and
delay time. The following steps show you how to generate a 500 µs pulse
waveform with a pulse width of 100 µs and delay time of 50 ns.
1. Select the pulse function
Press the Pulse button to select the pulse function and output a pulse
waveform with the default parameters.
2. Set the Pulse period
Press the Period softkey and then set the pulse period to 500 µs.
3. Set the Pulse Width
Press the PulWidth softkey and then set the pulse width to 100 µs. The pulse
width represents the time from the 50% threshold of the rising edge to the 50%
threshold of the next falling edge.
4. Set the Pulse Delay
Press the Delay softkey and then set the pulse delay to 50 ns.
