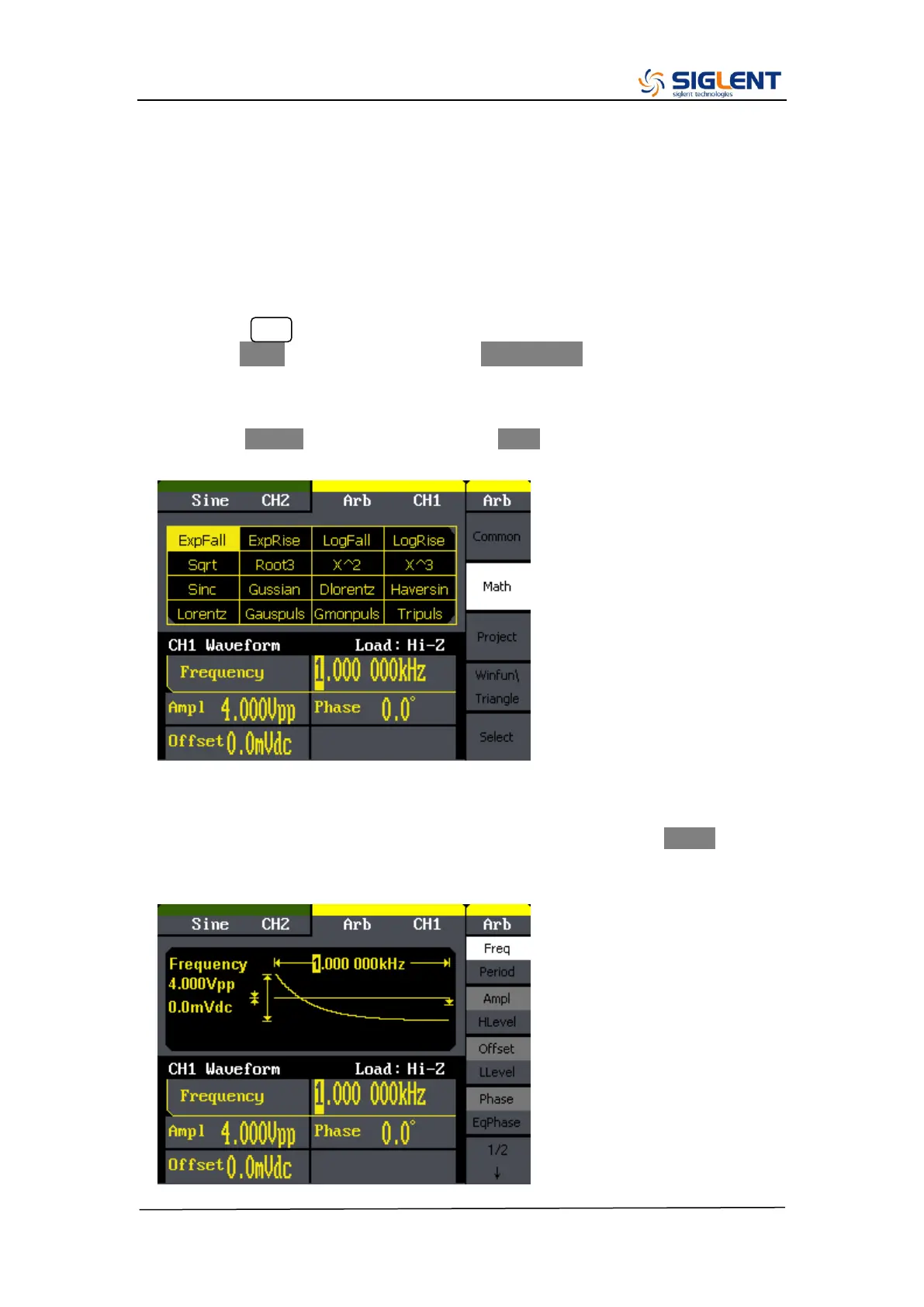

SDG1000 Service Manual 19
Output a Built-In Arbitrary Waveform
There are 48 built-in arbitrary waveforms stored in non-volatile memory. The
following steps show you how to output the built-in “exponential fall” waveform
from the front panel.
1. Select the arbitrary waveform function
Press the Arb button to select the arbitrary waveform function. Then
press the 1/2↓ softkey, and press the Load Wform softkey.
2. Select the built-in waveform
Press the Built-In softkey and press the math softkey to enter the arbitrary
waveform interface. You will see the mathematic waveform as below.
3. Output the exponential fall waveform
Use the knob to select the ExpFall waveform and press the Select softkey.
The waveform is output using the present settings for frequency, amplitude
and offset unless you change them.
