36 SDG1000 Service Manual

Removing the Main Body

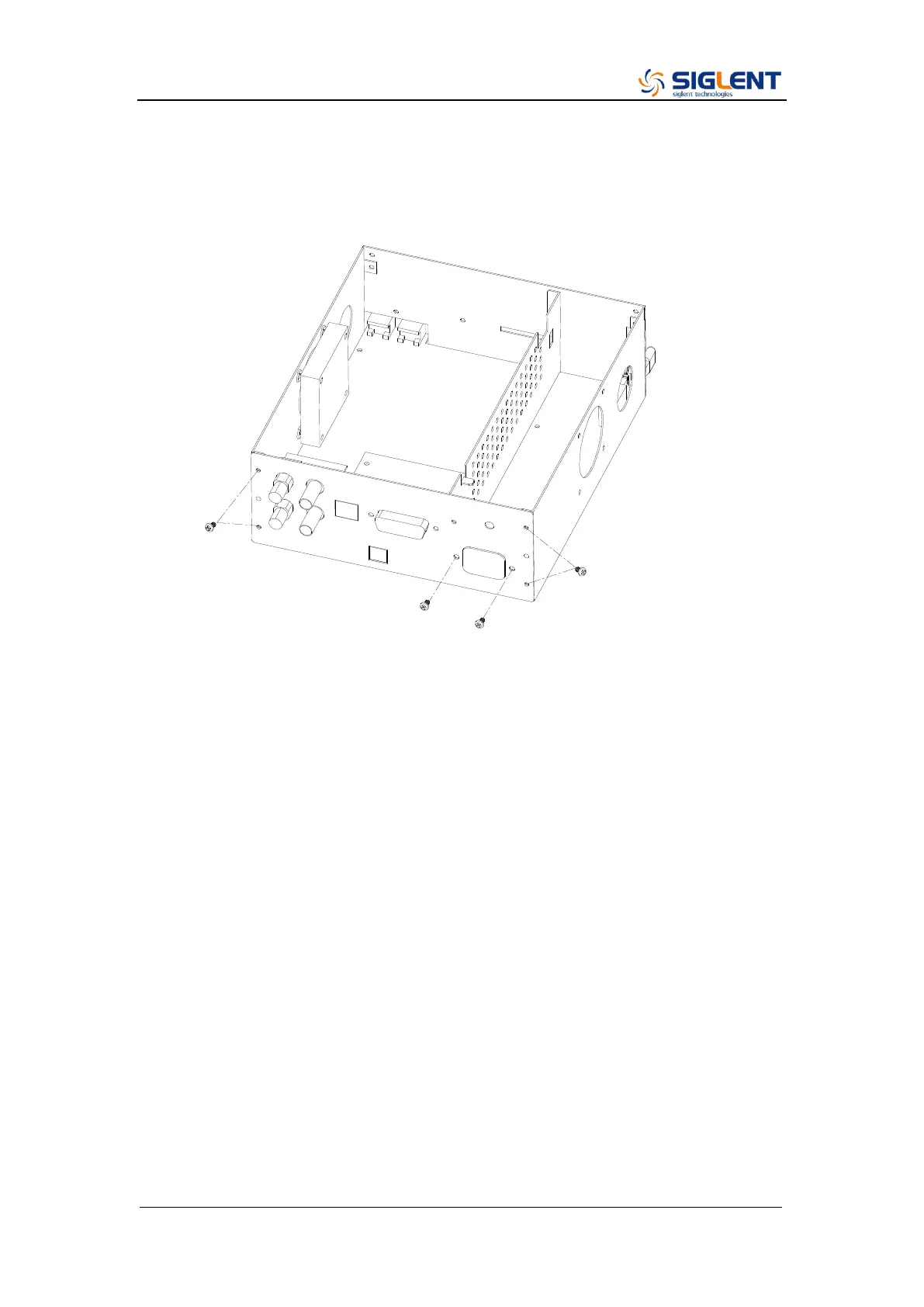

Table 4-10 Removing the main body

Removing steps:

1. Remove the screws from the rear metal cover using the screw driver.

2. Remove the rear metal cover from the main body of the generator.

3. Remove the screws from the main board and power supply board and

using the screw driver.

4. Separate the rear metal cover, main board and power supply in sequence

board from the main body of the generator.

To install the main body, please operate as the reverse steps.
