26 SDG1000 Service Manual
AC Amplitude Verification
This test checks the ac amplitude output accuracy at the frequency of 100 kHz
using a Power Meter.
1. Turn on the generator and choose CH1 as the operating channel. Set the
load to 50Ω in OUTPUT SETUP system under the Utility menu.

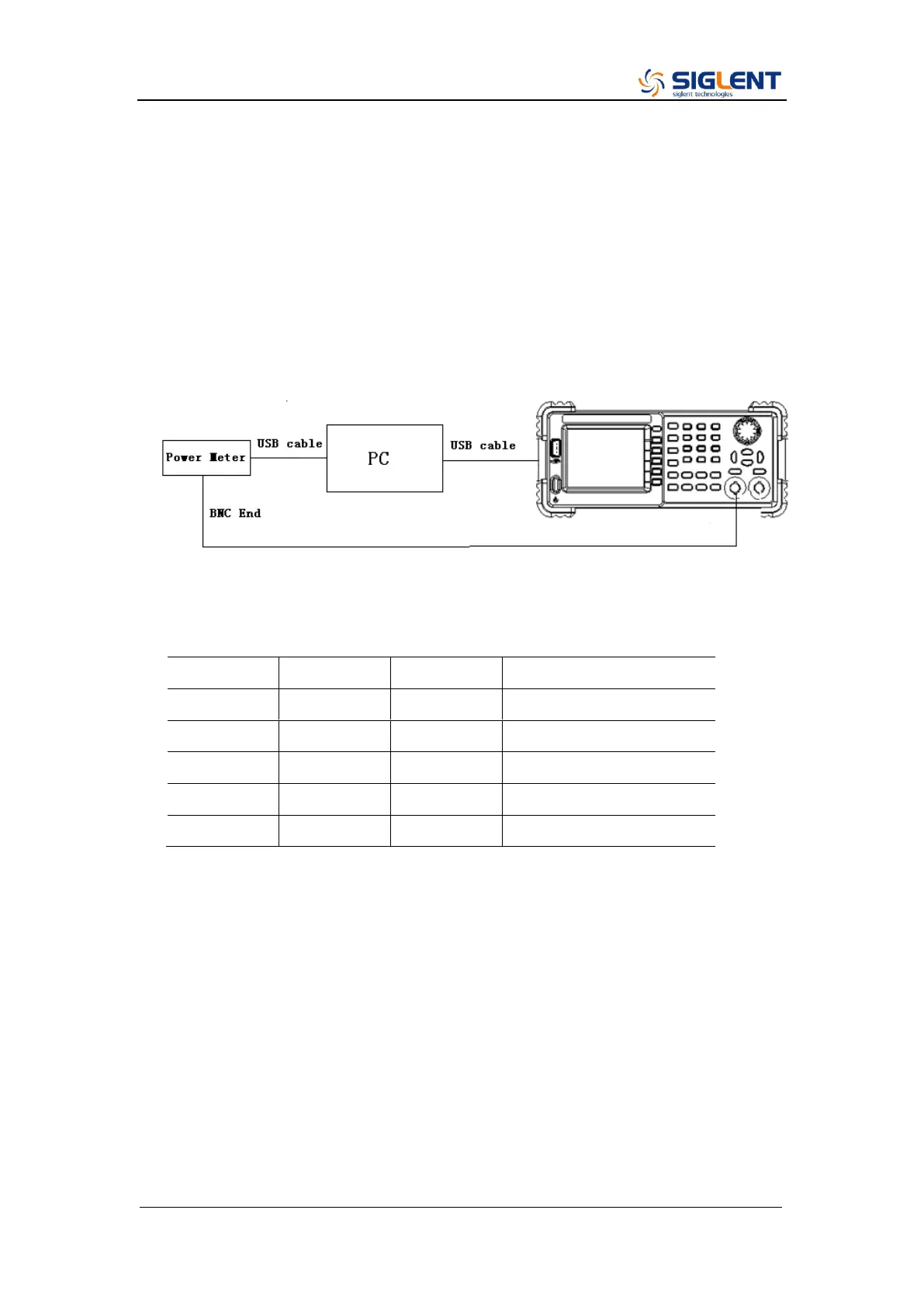

2. Connect the Power Meter, PC and generator as shown below.
3. Select Sine waveform of the generator and set the amplitude to the values
listed below in sequence.
4. Remove the BNC cable to CH2 output and perform the same verification as
channel1.
5. Compare the value measured from Power Meter to the spec range shown in
the table above.
