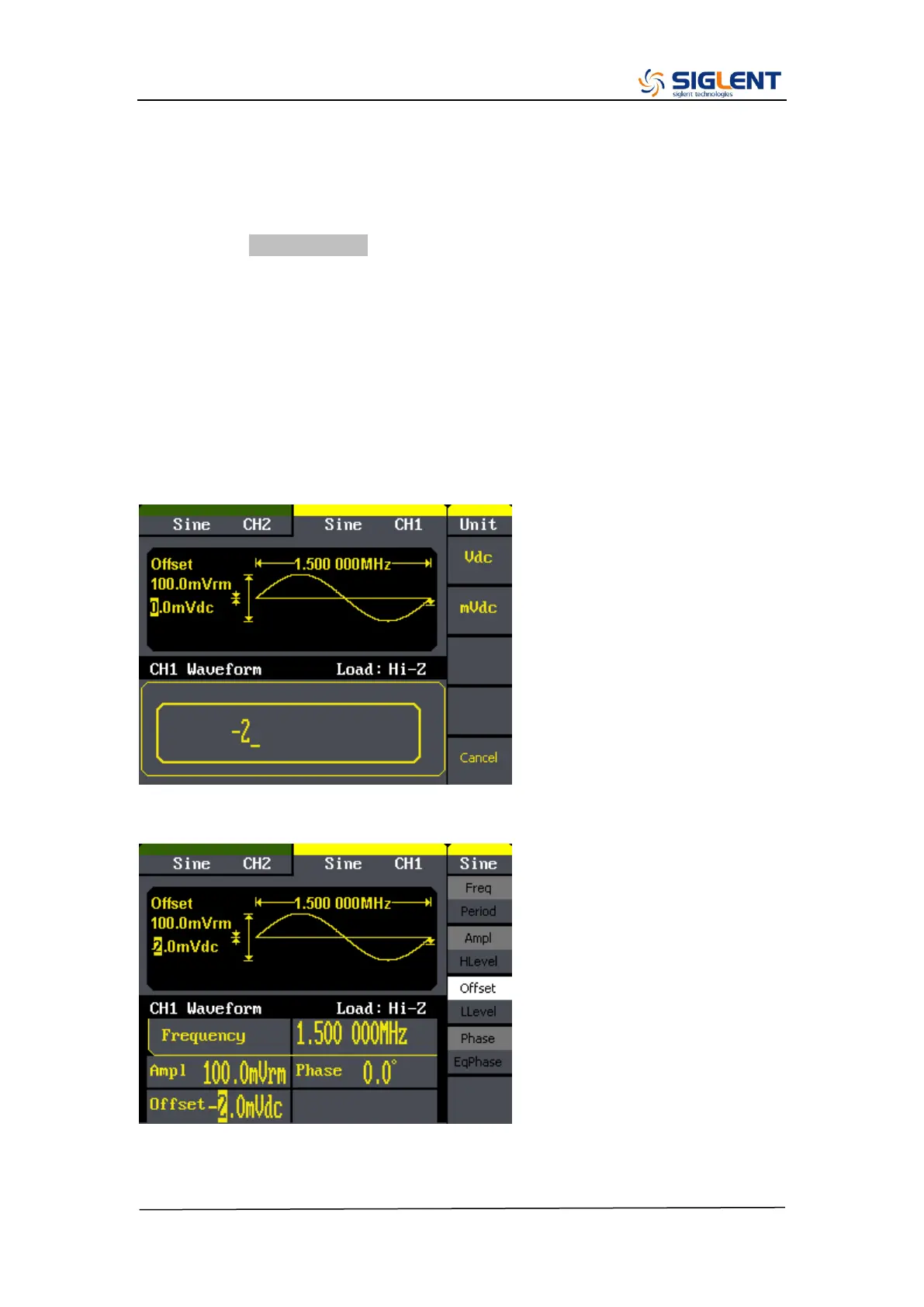

SDG1000 Service Manual 13
Set the DC offset
The following steps show you how to change offset to -2mVdc.
1. Press the Offset/LLevel softkey
The displayed offset is either the power-on value or the offset previously
selected. When you change the function, the same offset is used if the current
value is valid for the new waveform. If you want to set the LLevel for the
waveform, press the softkey again, to switch the LLevel parameter(The current
operation is displayed in inverse color)
2. Input the desired offset
Use the digital keypad to input the value directly, enter the value “-2”.
Then press the corresponding softkey to select the desired unit. For example,
press mVdc.
Note: You can also enter the desired value using the knob and direction keys.
