SDG1000 Service Manual 25
Frequency Response Verification
This test checks if the value in dB format translated from output amplitude is
within the spec range response to different frequency using a Power Meter.
1. Turn on the generator and choose CH1 as the operating channel. Set the
load to 50Ω in OUTPUT SETUP system under the Utility menu.

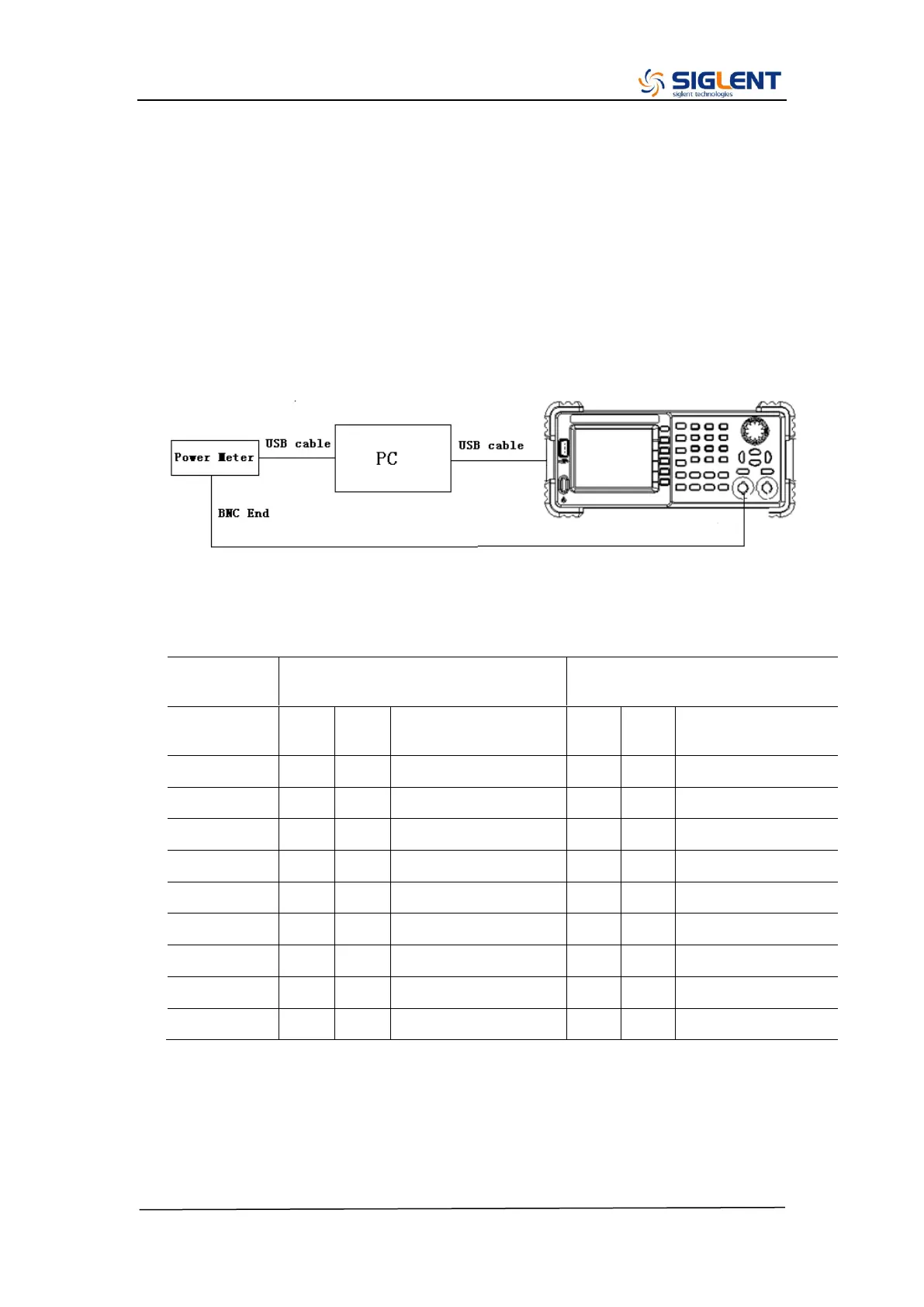

2. Connect the Power Meter, PC and generator as shown below.
3. Select Sine waveform of the generator and set the amplitude to 1V and
2.5V, frequency to the values listed below in sequence.
Output
Voltage
1V
2.5V
Frequency
CH1
CH2
the Spec Range
(dBm)
CH1
CH2
the Spec Range
(dBm)
10KHz
3.8794 ~ 4.0794
11.84 ~12.04
100KHz
3.8294 ~ 4.1294
11.79 ~12.09
1MHz
3.8294 ~ 4.1294
11.79 ~12.09
5MHz
3.6794 ~ 4.2794
11.64 ~12.24
10MHz
3.6794 ~ 4.2794
11.64 ~12.24
15MHz
3.6794 ~ 4.2794
11.64 ~12.24
20MHz
3.6794 ~ 4.2794
11.64 ~12.24
25MHz
3.6794 ~ 4.2794
11.64 ~12.24
50MHz
3.6794 ~ 4.2794
11.64 ~12.24
4. Remove the BNC cable to CH2 output and perform the same verification as
channel1.
5. Compare the value measured from Power Meter to the spec range shown in
the table above.
