DC Output Verification
This test checks if the DC offset listed in the table below are within the spec
range using a DMM.

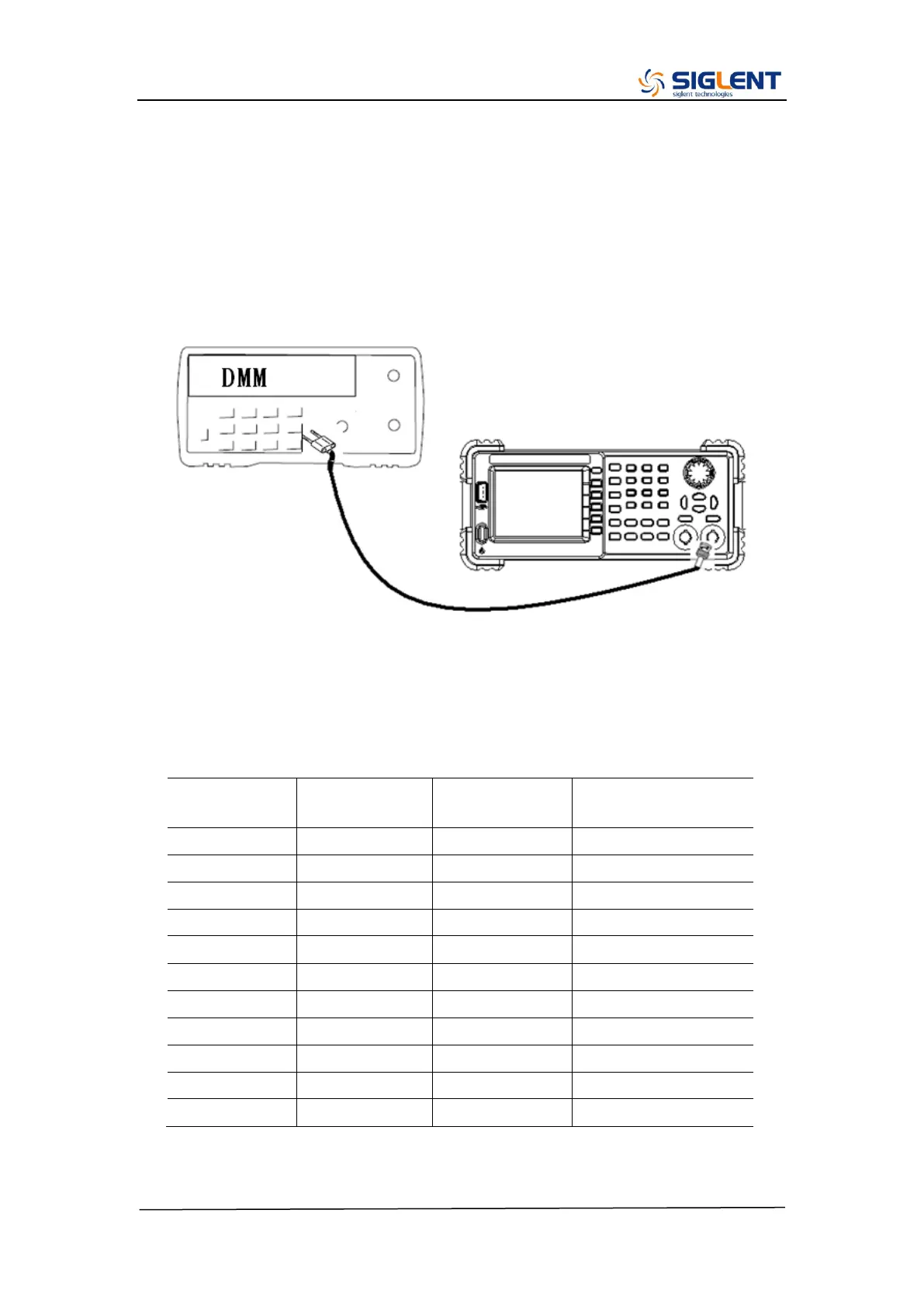

1. Set the DMM to measure DC voltage. Connect the DMM to the channel 1
output of the generator as shown below.
2. Turn on channel 1 and select DC system under the Utility menu.
3. Set the instrument to each output value described in the table below and
measure the output voltage with the DMM. Be sure the generator output
impedance is set to High–Z and the output is enabled.
DC Offset
CH1
CH2
Spec Range
± (1%+3mv)
0mv
-3mv ~ 3mv
10mv
6.9mv ~ 13.1mv
100mv
96mv ~ 104mv
1v
0.987v ~ 1.013v
3v
2.967v ~ 3.033v
10v
9.897v ~ 10.103v
-10mv
-13.1mv ~ 6.9mv
-100mv
-104mv ~ 96mv
-1v
-1.013v ~ 0.987v
-3v
-3.033v ~ 2.967v
-10v
-10.103v ~ 9.897 v
4. Compare the measured voltage to the spec range shown in the table above.
