SIGLENT
124 SDG2000X User Manual
2.13.9 Mode
Press Utility → Page 1/2 → Mode to enter the mode setup Interface, as shown
in Figure 2-76.

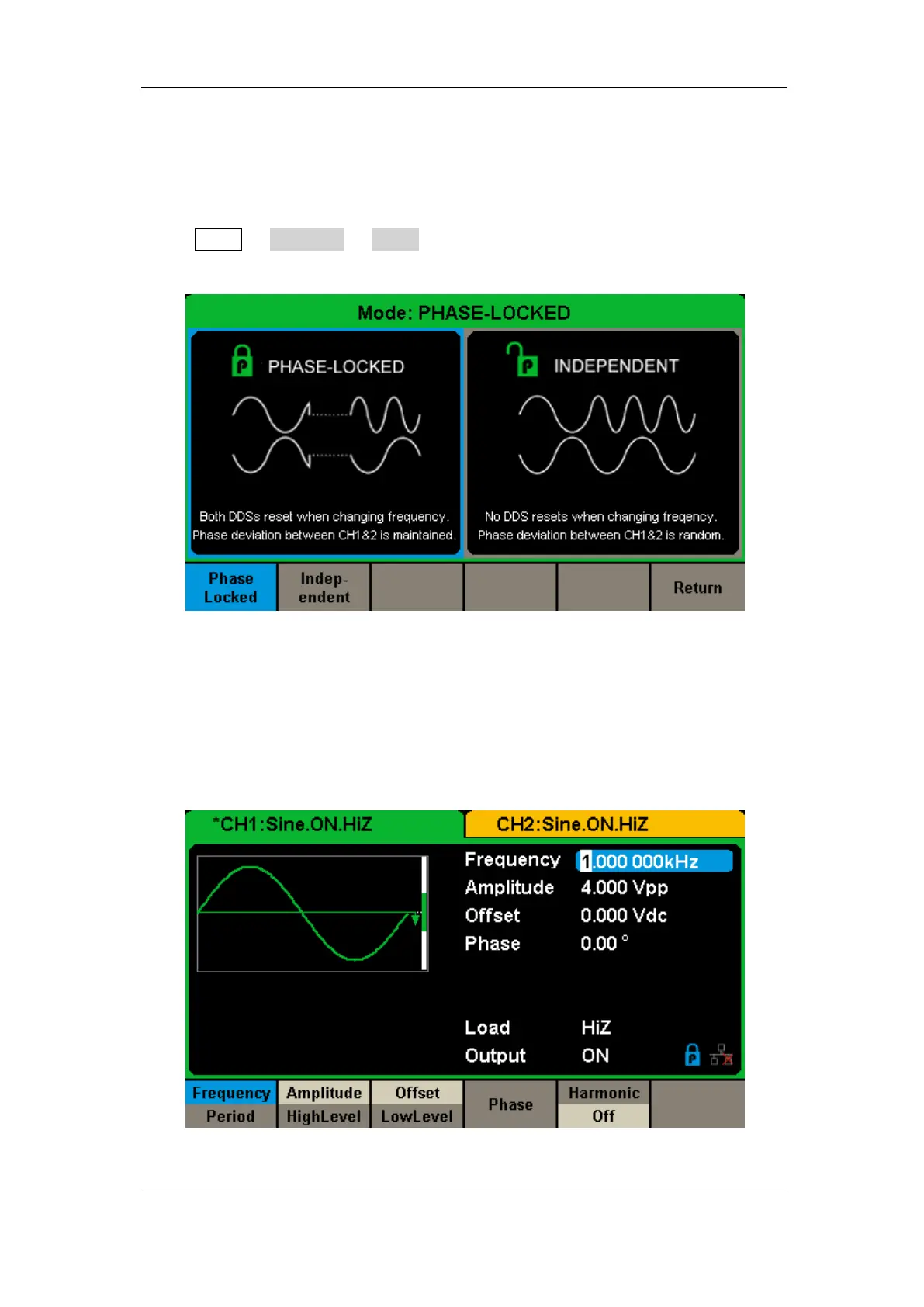

Figure 2-76 Mode Setup Interface
Phase-locked Mode
When changing the frequency, the DDSs of both channels reset, and the
phase deviation between CH1 and CH2 is maintained.
Figure 2-77 Phase-locked Mode
