2.13.10 Overvoltage Protection
Choose Utility → Page 1/2 → OverVoltage Protection to turn on or off the function,
as shown in the following figure.

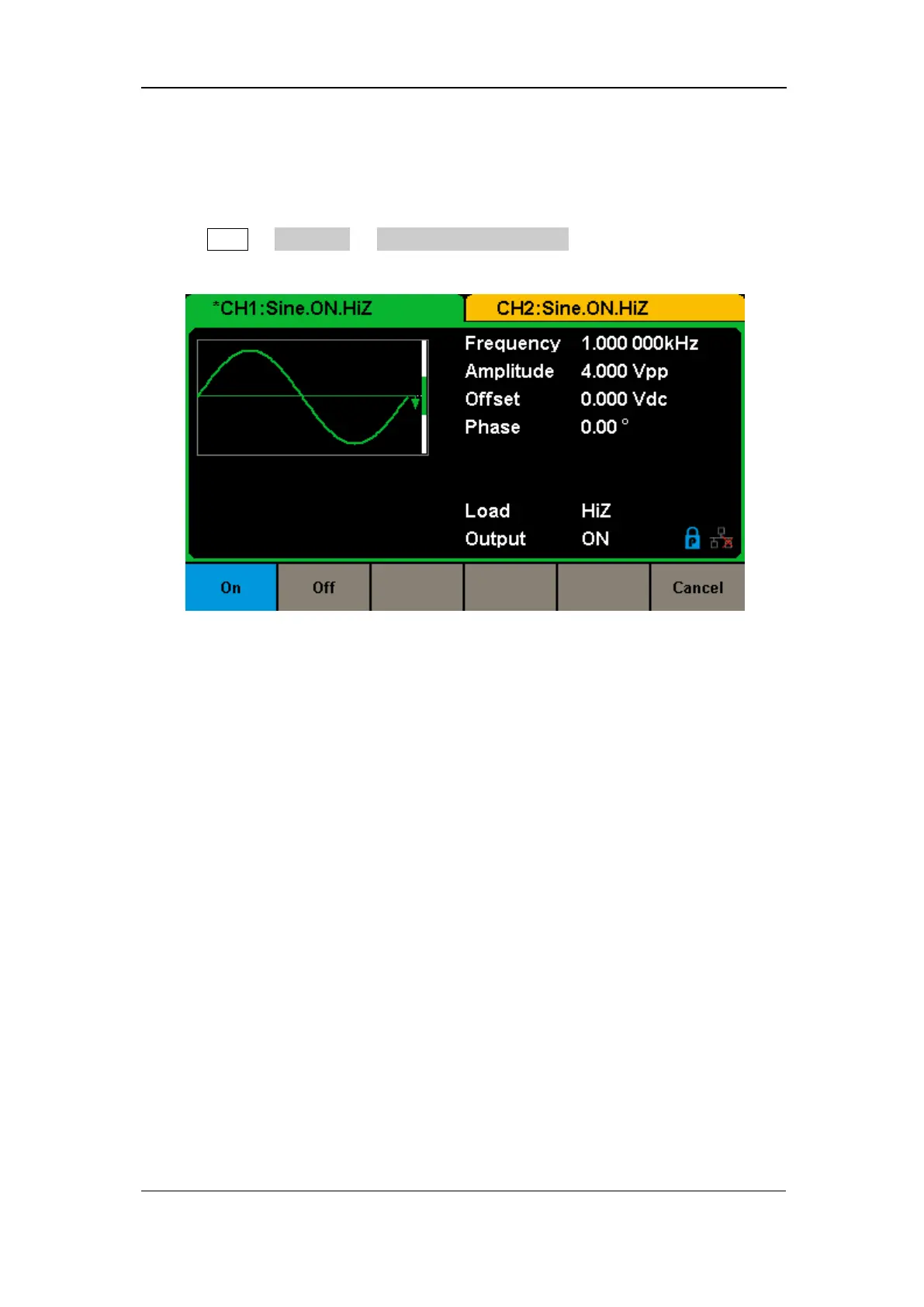

Figure 2-79 Overvoltage Protection Interface
If the state is set to ON, overvoltage protection of CH1 and CH2 will take effect
once any of the following conditions is met. When overvoltage protection
occurs, a message will be displayed and the output is disabled.
The absolute value of input voltage is higher than 11V±0.5V when the
amplitude of the generator is higher than or equal to 3.2Vpp or the DC
offset is higher than or equal to |2VDC|.
The absolute value of input voltage is higher than 4V±0.5V when the
amplitude of the generator is lower than 3.2Vpp or the DC offset is lower
than |2VDC|.
To Next Page
