2.9.6 ASK
When using ASK (Amplitude Shift Keying), the carrier frequency and key
frequency will need to be set. The key frequency is the shift rate of modulated
waveform amplitude.
Press Mod → Type → ASK, the parameters of ASK modulation are shown in
Figure 2-29.

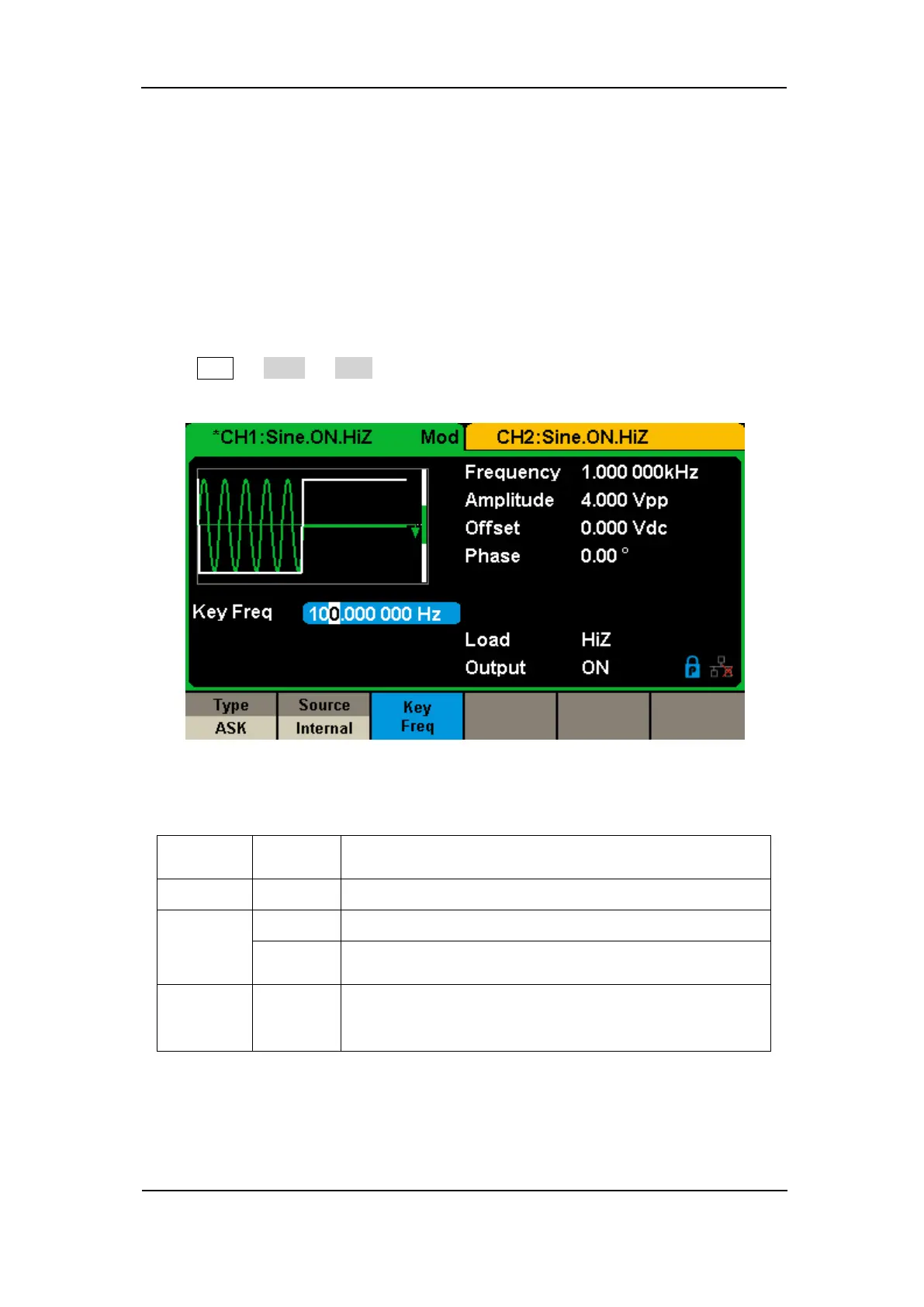

Figure 2-29 Setting Interface of ASK Modulation
Table 2-15 Menu Explanations of the ASK Parameters
Amplitude shift keying modulation.
The source is external. Use the [Aux In/Out] connector at
the rear panel.
Set the frequency at which the output amplitude shifts
between the carrier amplitude and zero (internal
modulation only): 1mHz~1MHz.
Note:
