SDG2000X User Manual 55
2.9.2 DSB-AM
DSB-AM is an abbreviation for Double-Sideband Suppressed Carrier –
Amplitude Modulation. Press Mod → Type → DSB-AM. The parameters of
DSB-AM modulation are shown in Figure 2-25.

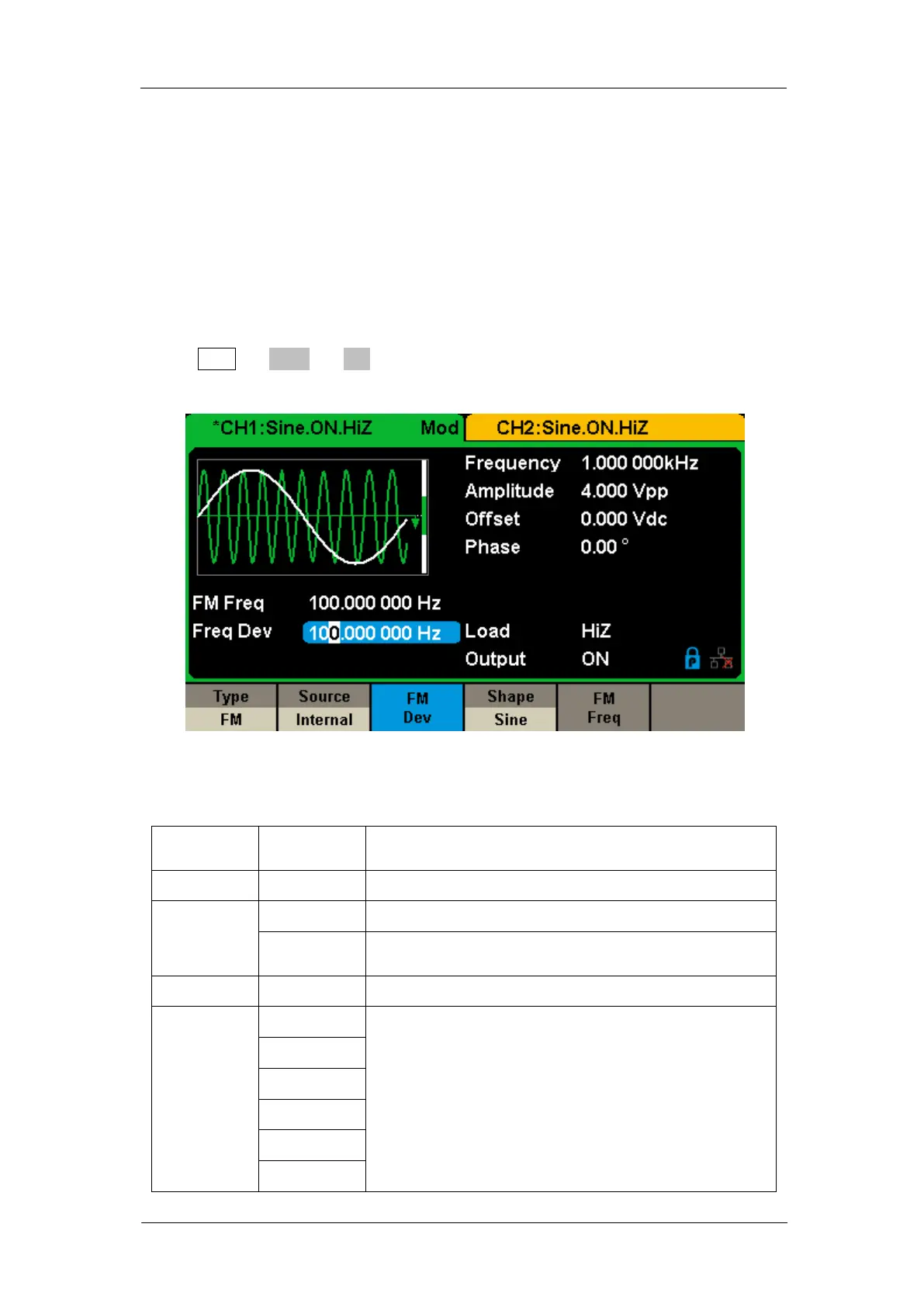

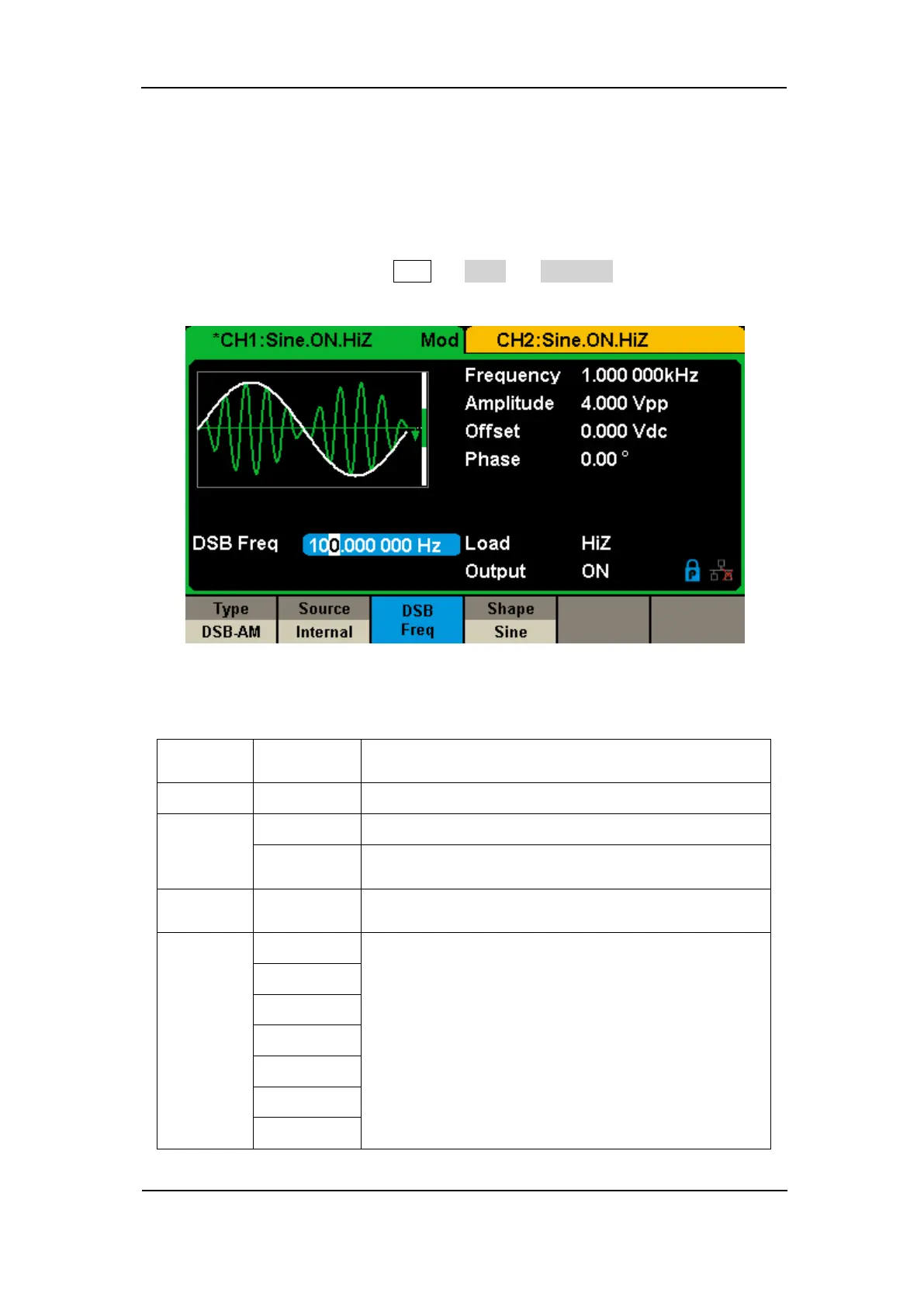

Figure 2-25 Setting Interface of DSB-AM Modulation
Table 2-11 Menu Explanations of the DSB-AM Parameters
Function
Menu
Settings
Explanation
Type
DSB-AM
DSB Amplitude modulation.
Source
Internal
The source is internal.
External
The source is external. Use the [Aux In/Out] connector
at the rear panel.
DSB Freq
Set the modulating waveform frequency. Frequency
range: 1mHz~1MHz (internal source only).
Shape
Sine
Choose the modulating waveform.
Square
Triangle
UpRamp
DnRamp
Noise
Arb
