3.6 Example 6: Generate a DC Waveform
Generate a DC waveform with 3Vdc offset,
 Steps:
 Choose the DC waveform.
1. Press Waveforms →Page 1/2→ DC, to choose the DC waveform.
 Set the Offset.
1. Press Offset and choose Offset which will display in blue color.
2. Input ‘3’ from the keyboard and choose the unit ‘Vdc’. The DC offset is set
to 3Vdc.
When the DC offset is set, the waveform generated is shown in Figure 3-6.

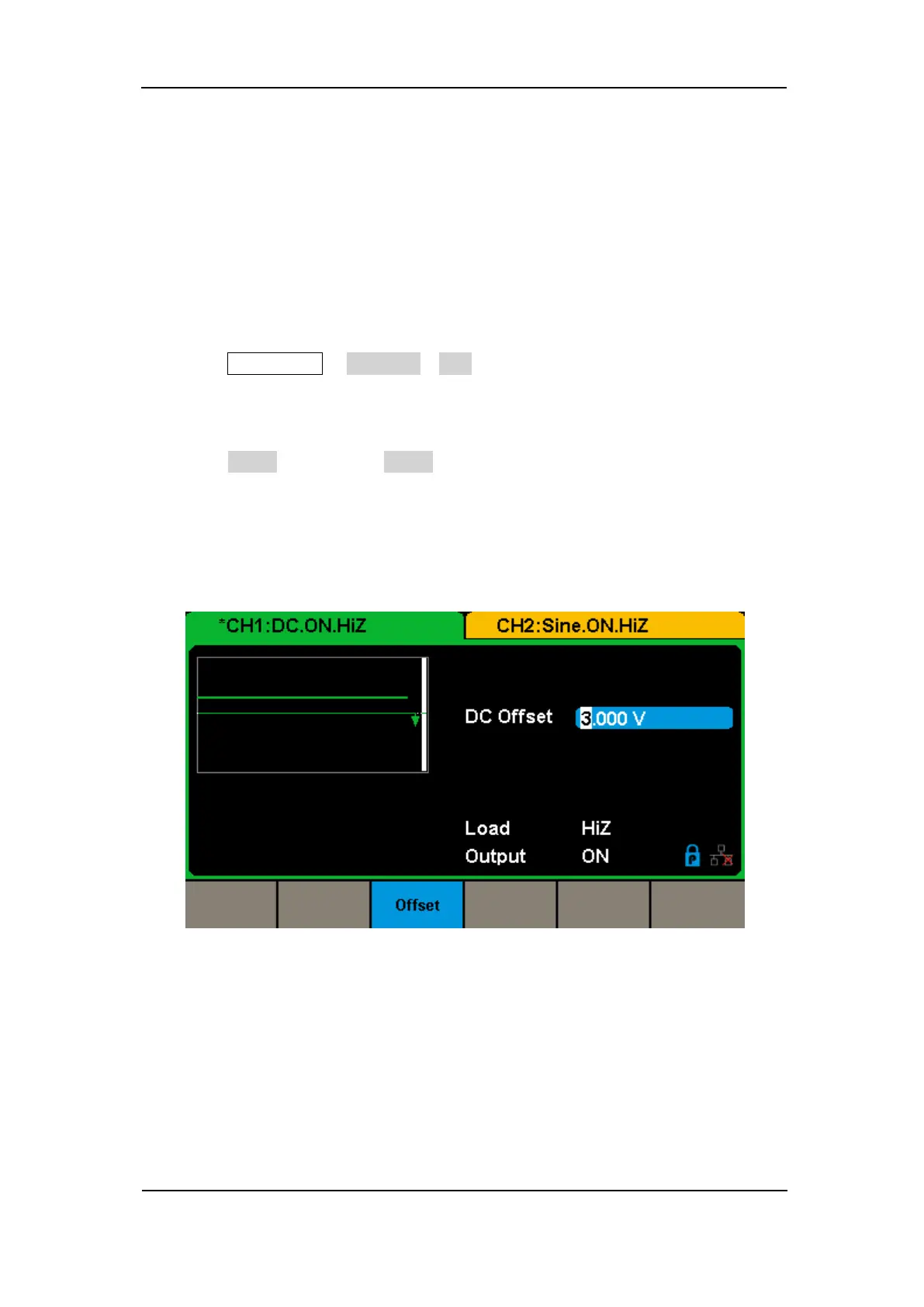

Figure 3-6 Generate a DC Waveform
