3.4 Example 4: Generate a Pulse Waveform
Generate a pulse waveform with 5kHz frequency, 5V high level, -1V low level,
40μs pulse width and 20ns delay.
Steps:
Set the Frequency.
1. Press Waveforms → Pulse → Frequency/Period and choose Frequency,
which will display in blue color.
2. Input ‘5’ from the keyboard and choose the unit ‘kHz’. The frequency is set
to 5 kHz.
Set the HighLevel.
1. Press Amplitude/HighLevel and choose the HighLevel which will display in
blue color.
2. Input ‘5’ from the keyboard and choose the unit ‘V’. The high level is set to
5V.

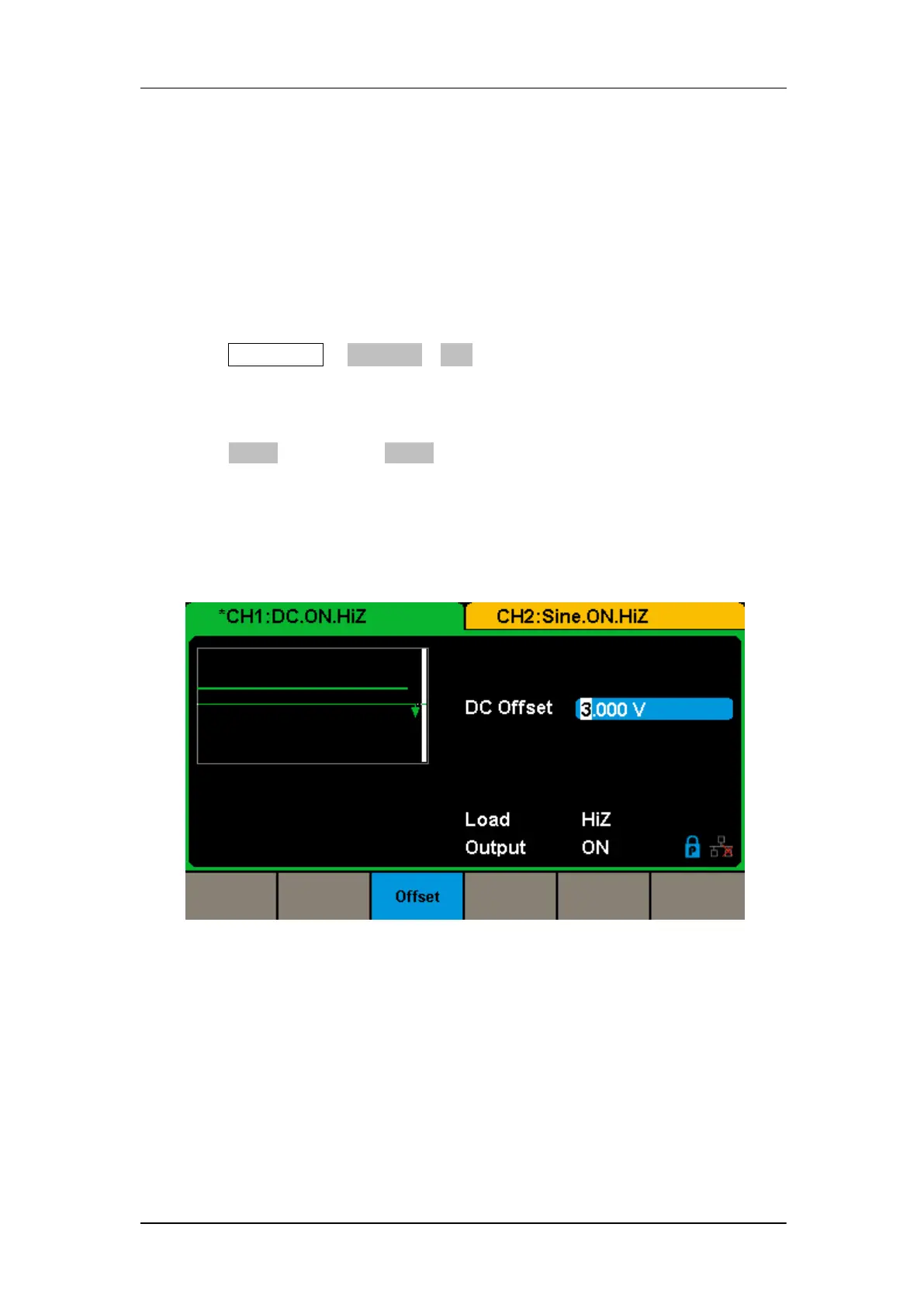

Set the LowLevel.
1. Press Offset/LowLevel and choose the LowLevel which will display in blue
color.
2. Input ‘-1’ from the keyboard and choose the unit ‘V’. The low level is set to
-1V.
Set the PulWidth.
1. Press PulWidth/DutyCycle and choose PulWidth which will display in blue
color.
2. Input ‘40’ from the keyboard and choose the unit ‘μs’. The pulse width is
set to 40μs.
Set the Delay.
1. Press Delay to choose Delay which will display in blue color.
