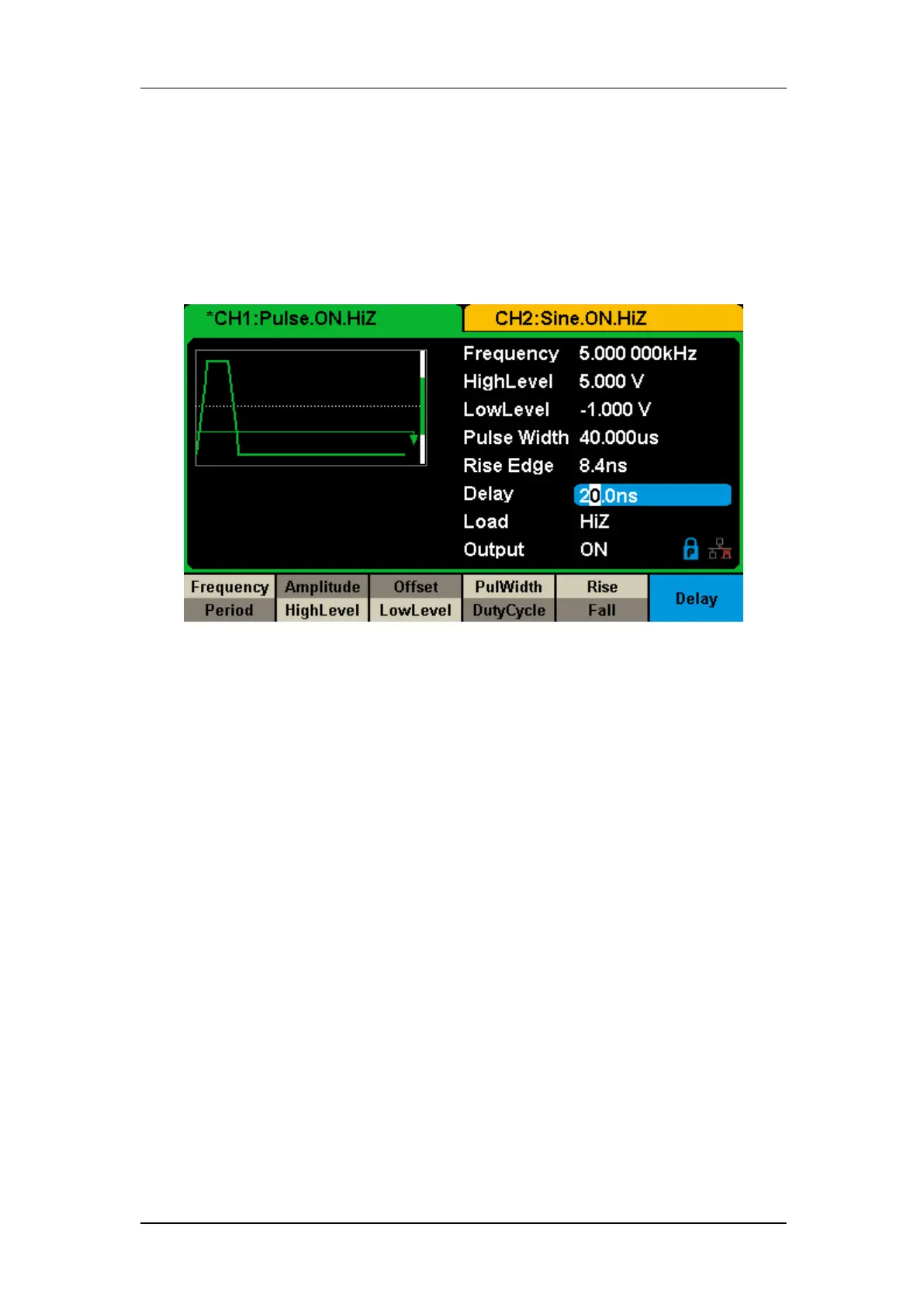

3.3 Example 3: Generate a Ramp Waveform
Generate a ramp waveform with 10μs period, 100mVpp amplitude, 20mVdc
offset, 45° phase and 30% symmetry.
 Steps:
 Set the Period.
1. Press Waveforms → Ramp → Frequency/Period and choose Period
which will display in blue color.
2. Input ‘10’ from the keyboard and choose the unit ‘μs’. The period is set to
10μs.
 Set the Amplitude.
1. Press Amplitude/HighLevel to choose Amplitude which will display in blue
color.
2. Input ‘100’ from the keyboard and choose the unit ‘mVpp’. The amplitude
is set to 100mVpp.
 Set the Offset.
1. Press Offset/LowLevel to choose Offset which will display in blue color.
2. Input ‘20’ from the keyboard and choose the unit ‘mVdc’. The offset is set
to 20mVdc.
 Set the Phase.
1. Press Phase to choose Phase which will display in blue color.
2. Input ‘45’ from the keyboard and choose the unit ‘°’. The phase is set to
45°.
 Set the Symmetry.
1. Press Symmetry to choose Symmetry which will display in blue color.
2. Input ‘30’ from the keyboard and choose the unit ‘30%’. The symmetry is
set to 30%.
