SIGLENT
SDG2000X User Manual 135
2. Input ‘20’ from the keyboard and choose the unit ‘ns’. The delay is set to
20ns.

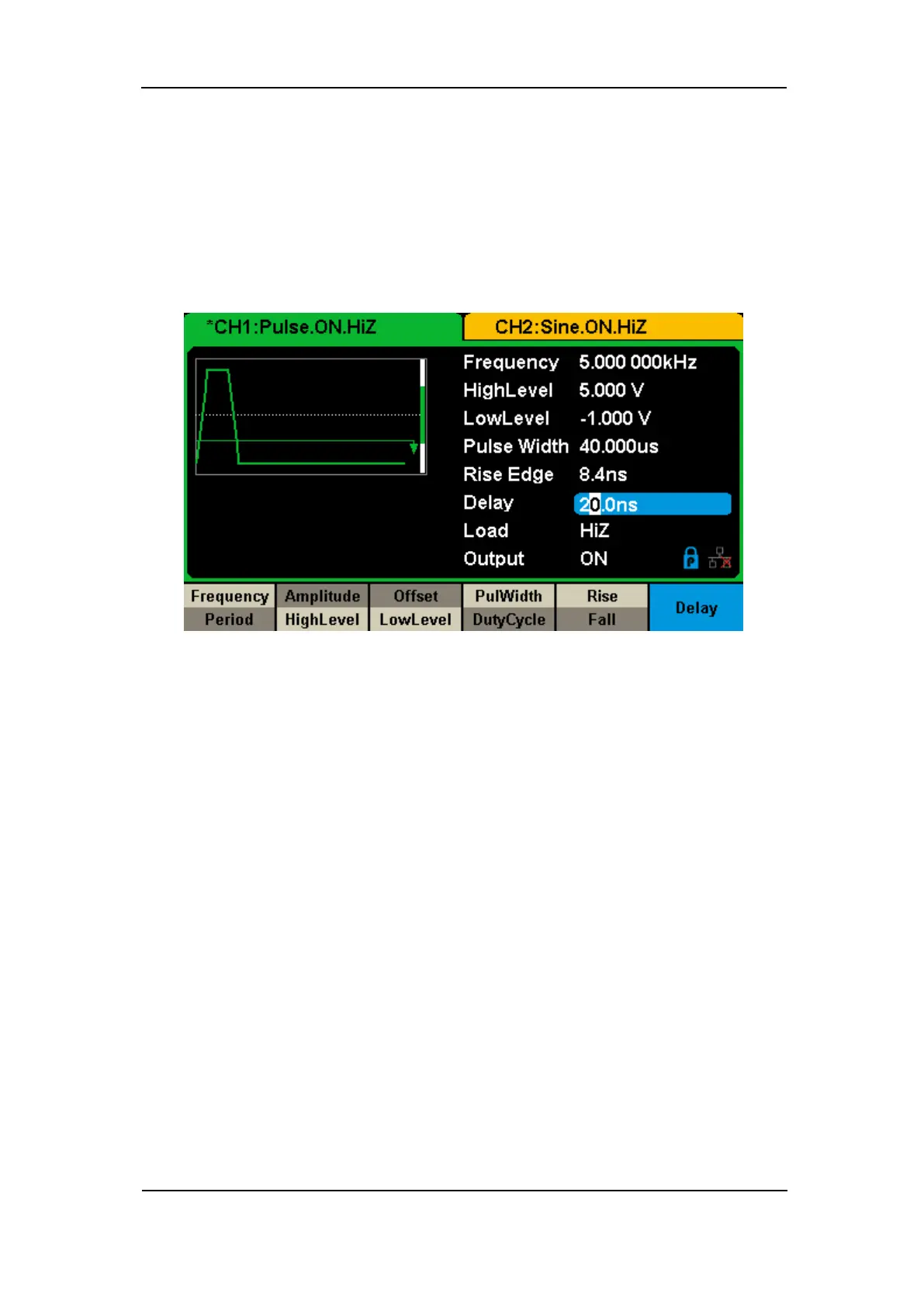

When the frequency, high level, low level, pulse width and delay are set, the
waveform generated is shown in Figure 3-4.
Figure 3-4 Generate a Pulse Waveform
