SIGLENT
SDG2000X User Manual 11

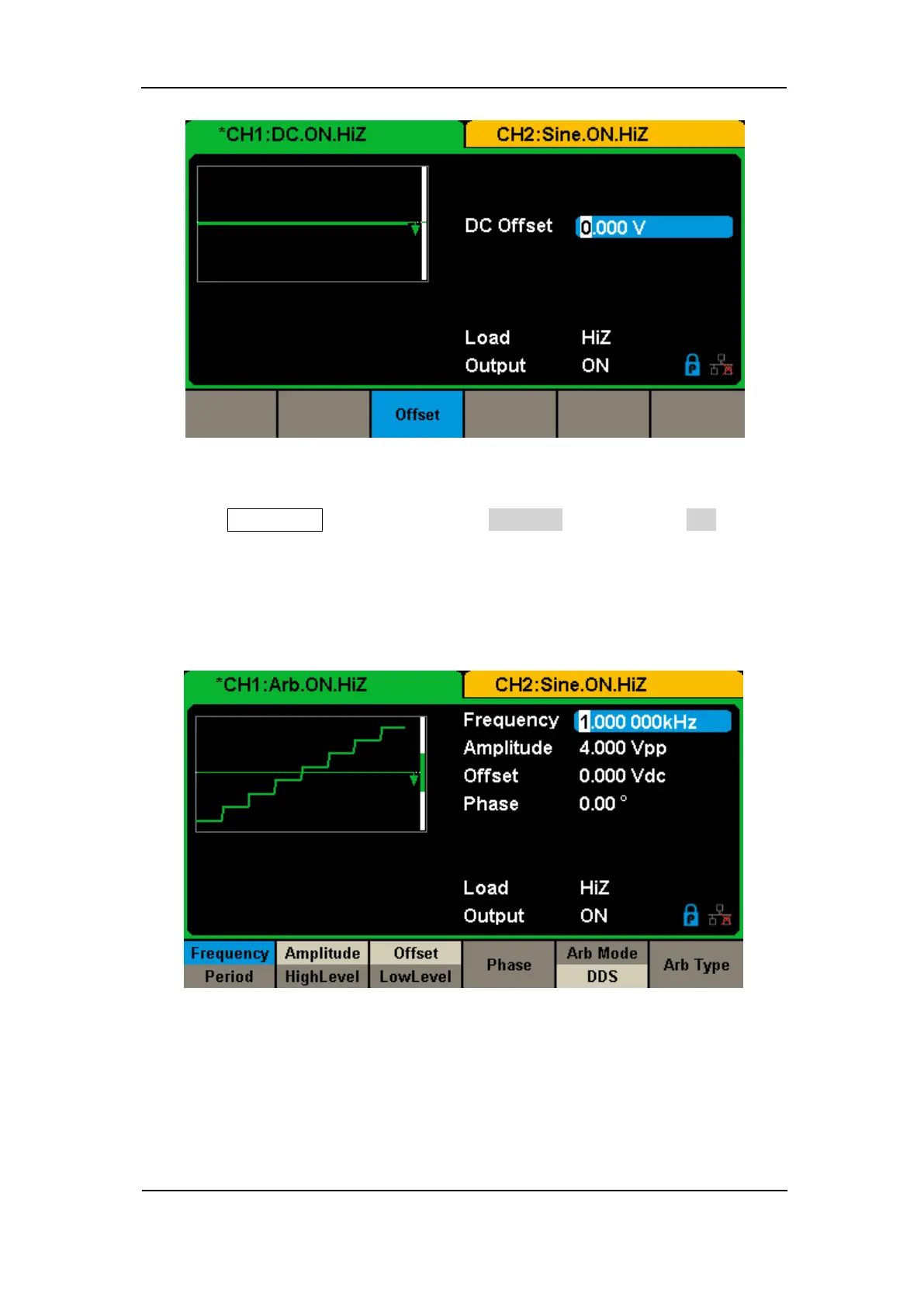

Figure 1-11 DC Display Interface
7. Press Waveforms key and then press Page 1/2, last press the Arb softkey.
The generator can generate repeatable arbitrary waveforms with length
from 8 to 8M points and frequencies up to 20MHz. By setting
Frequency/Period, Amplitude/High level, Offset/Low level, Phase and Arb
Mode, an arbitrary signal with different parameters can be generated.
Figure 1-12 Arbitrary Waveform Display Interface
