Mounting
13 / 60
5.4 Mounting SiDis AD 40

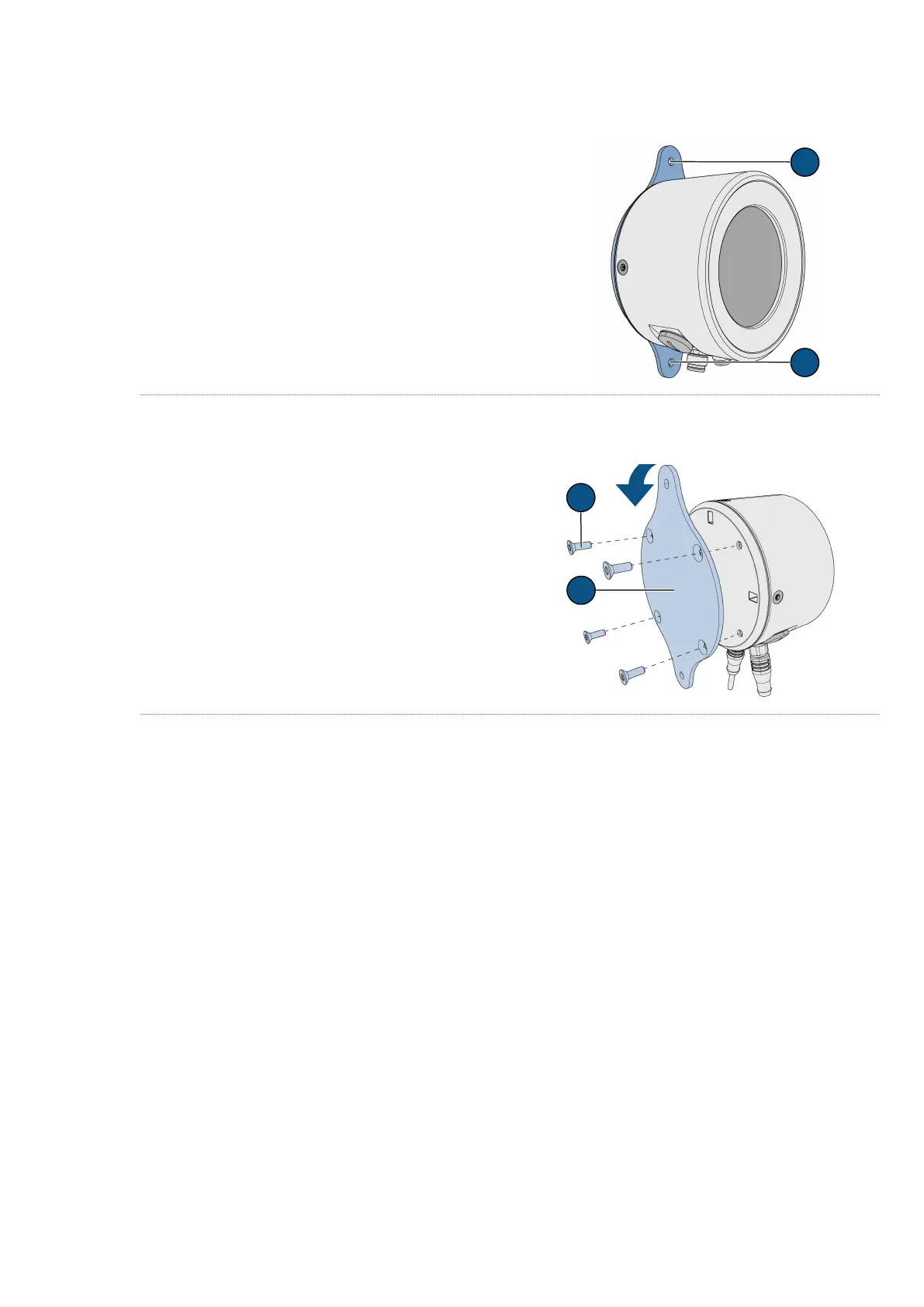

5.4.1 Wall mounting
u
Mount SiDis AD 40 on the wall with two screws (1)
according to the dimension drawing.
1
1
5.4.2 Rotate mounting plate
If necessary, the mounting plate can be rotated by 90° as follows:
u
Loosen four screws (2).
u
Turn the mounting plate (1) in the desired position.
u
Fasten with four screws (2).
2
1
