Settings
40 / 60
Parameter Values Default value
«Offset» -5000 ... 999999 0,000
Offset value is added to the measured value.
«Scaling» EBC:1.000, NTU:4.000/
FTU:4,000
1,000
Set the scaling factor for a customer-specific unit of measurement or for adaptation to laboratory values. The
scaling factor is multiplied by the measured value. The unit can be set separately Set unit [}40].
«Integration» 0 ... 60000 s 10 s
Set the integration time for the forming of measured values.
The integration is done via a low-pass filter. The set integration time corresponds to the step response of the
measured value from 0 ... 90 %.
«Designation» ... Channel-specific
Enter the name to identify this channel (max. 7 characters).
«Unit» ... EBC
Set character string for a customer-specific unit (max. 7 characters).
9.4.14 Menu: Math. Channels
Math. Channels M1 ... Mn
Parameter Values Default value
«Function» Inactive
a*C1+...
10^(a*logC1+...
C1/C2
(C1-C2)/ C1
Device-specific

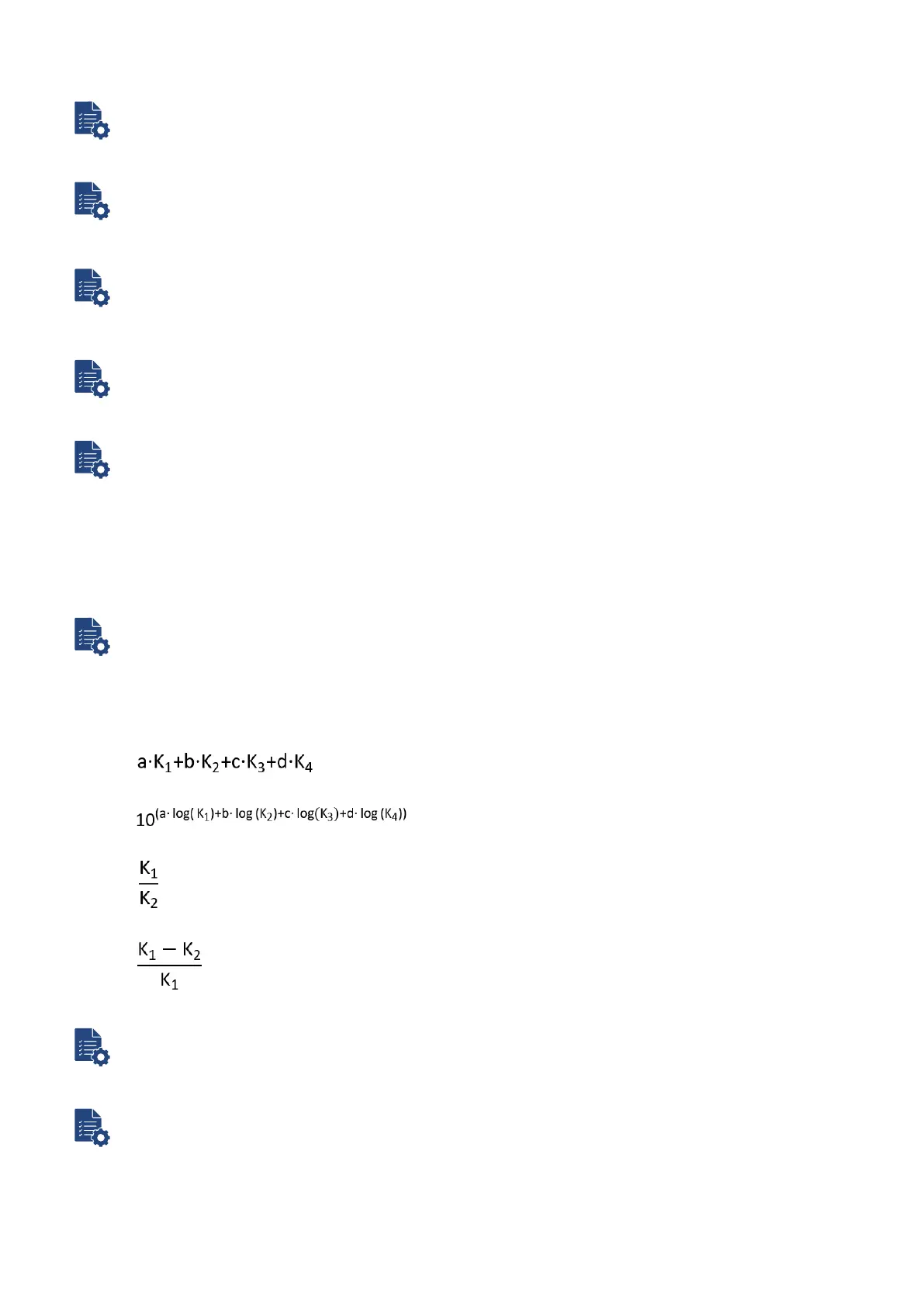

Selection of a predefined function for calculating different channels:
l
(Weighted addition of channels set to extinctions (log))
l
(Weighted addition of channels set to transmission (Lin))
l
(Formation of quotients for second channels)
l
(Difference of two channels in relation to the first channel)
«Offset» -5000 ... 999999 0,000
Offset value is added to the measured value.
«Scaling» -5000 ... 999999 1,000
Set the scaling factor for adaptation to laboratory values. The scaling factor is multiplied by the measured value.
