Parameter Values Default value
«Integration» 0 ... 60000 s 10 s
Set the integration time for the forming of measured values.
The integration is done via a low-pass filter. The set integration time corresponds to the step response of the
measured value from 0 ... 90 %.
«Designation» ... Device-specific
Enter the designation to identify this channel (max. 7 characters).
«Unit» ...
Enter the unit (max. 7 characters).
«Coeff. a/b/c/d» -5000 ... 999999 Device-specific
Set the coefficient value a/b/c/d within the function.
9.4.15 Menu: Measuring info
Parameter Values Default value
«Measuring info» - -
View various values of the current measuring operation.
Measured values C1..C4/ Math values M1..M2/ Inner temperature/ LED temperature/ Humidity value/ +5V ana-
logue voltage/ -10V analogue voltage
9.4.16 Menu: History
See Simple configuration mode\ History [}31]
9.4.17 Menu: System info
See Simple configuration mode\ System info [}31]
9.5 Logger diagram

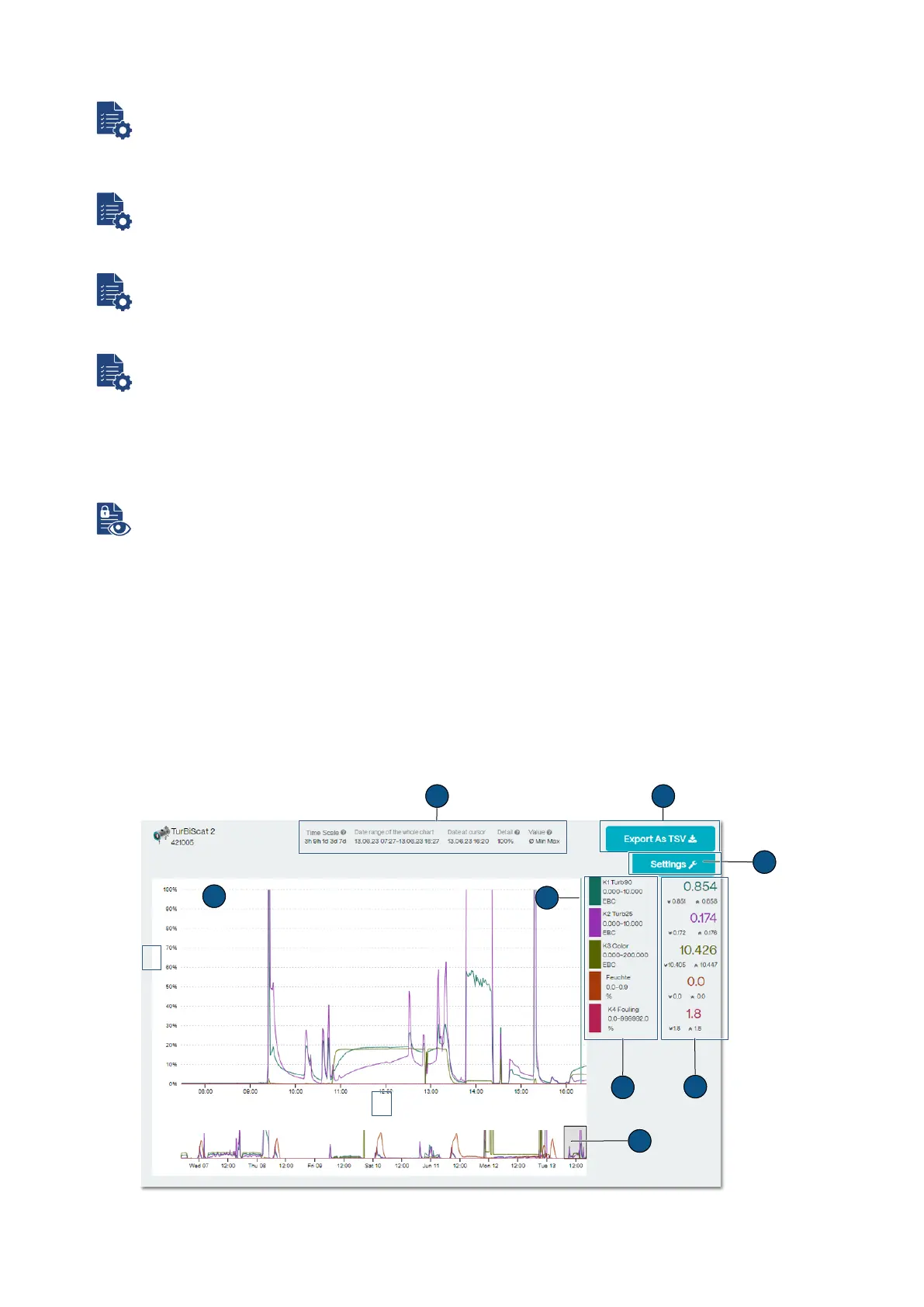

Detailed graphic display of measured values over the last seven days.
1
2
3
4
5
7
6
8
X
Y
