Electrical installation
15 / 60
Digital input 5-28 VDC
Function Designation Plug pin no. Colour
IN 1 IO1 7 blue
IN 2 IO2 5 grey
Digital output "High Side Switch" max. 20mA
Function Designation Plug pin no. Colour
Out 1 IO1 7 blue
Out 2 IO2 5 grey
Out 3 IO3 6 pink
Out 4 IO4 4 yellow
Current output 0/4 ... 20 max. 700 Ω
Function Designation Plug pin no. Colour
Current 1 IO3 6 pink
Current 2 IO4 4 yellow
Current 3 IO5 8 red
Current 4 IO6 3 green

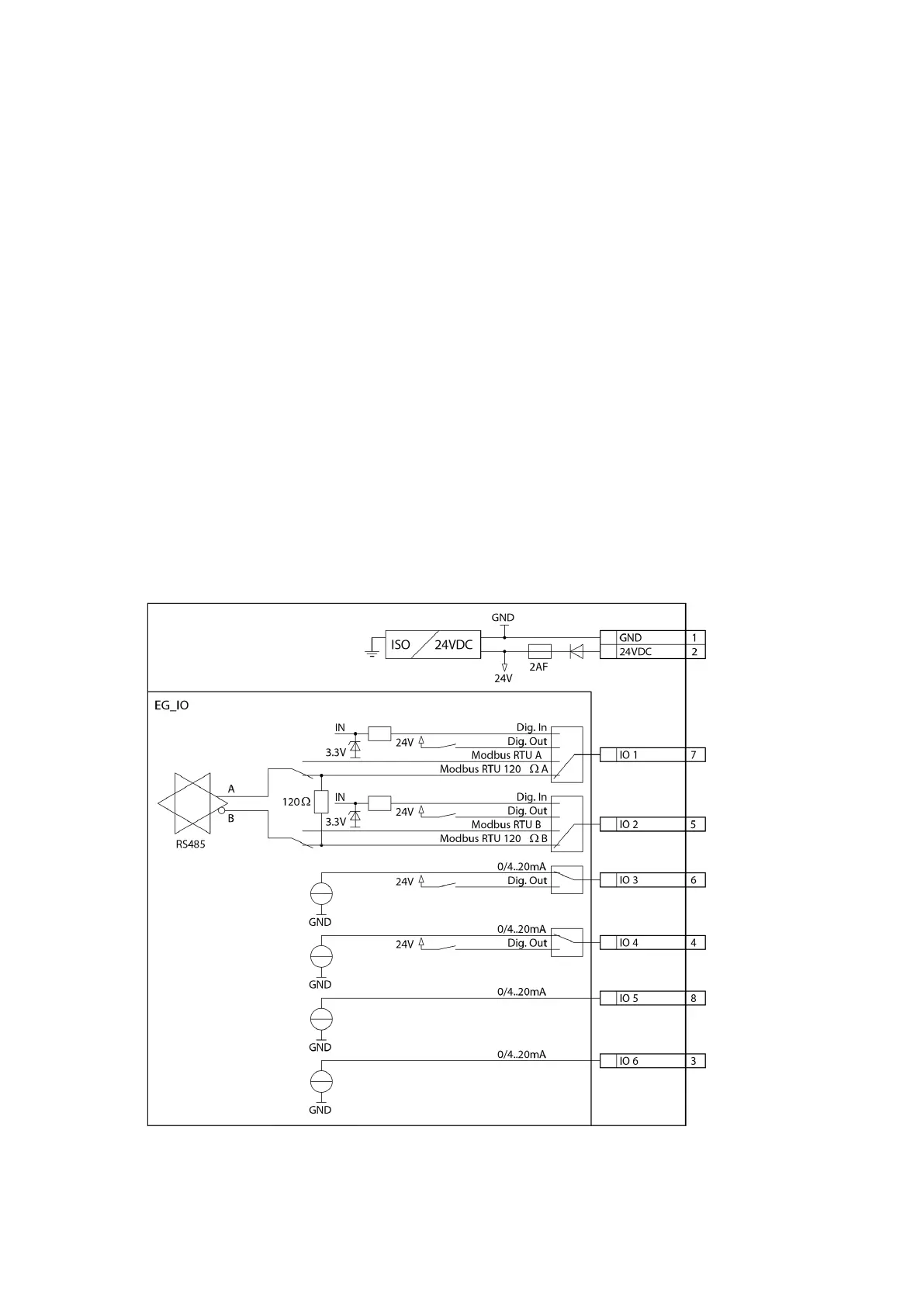

Wiring diagram EG_IO
