Siklu EtherHaul 710 - 1.3 Technical Specifications

EH-500/600 Installation Manual
Page 16
Packet
Forwarding
Ethernet
MAC 3
Control
processor
Memory
controller
Peripherals
Ethernet
MAC 1
Modem & Packet
Proc.
QoS
FLASH SDRAM
AFE
DAC
ADC
Network Processor
Baseband ASIC
PHY1
1
RJ45
CLK1
PHY3
3
RJ45
CLK3
PWR
PoE
DC/DC
RF Controller
SyncE
AUX RSSI
CLK1 CLK4
x3
x4
x3
(RJ45)
x4
Upconverter PA
LNADownconverter
RX/TX
Switch
RFIC
PLL-VCO

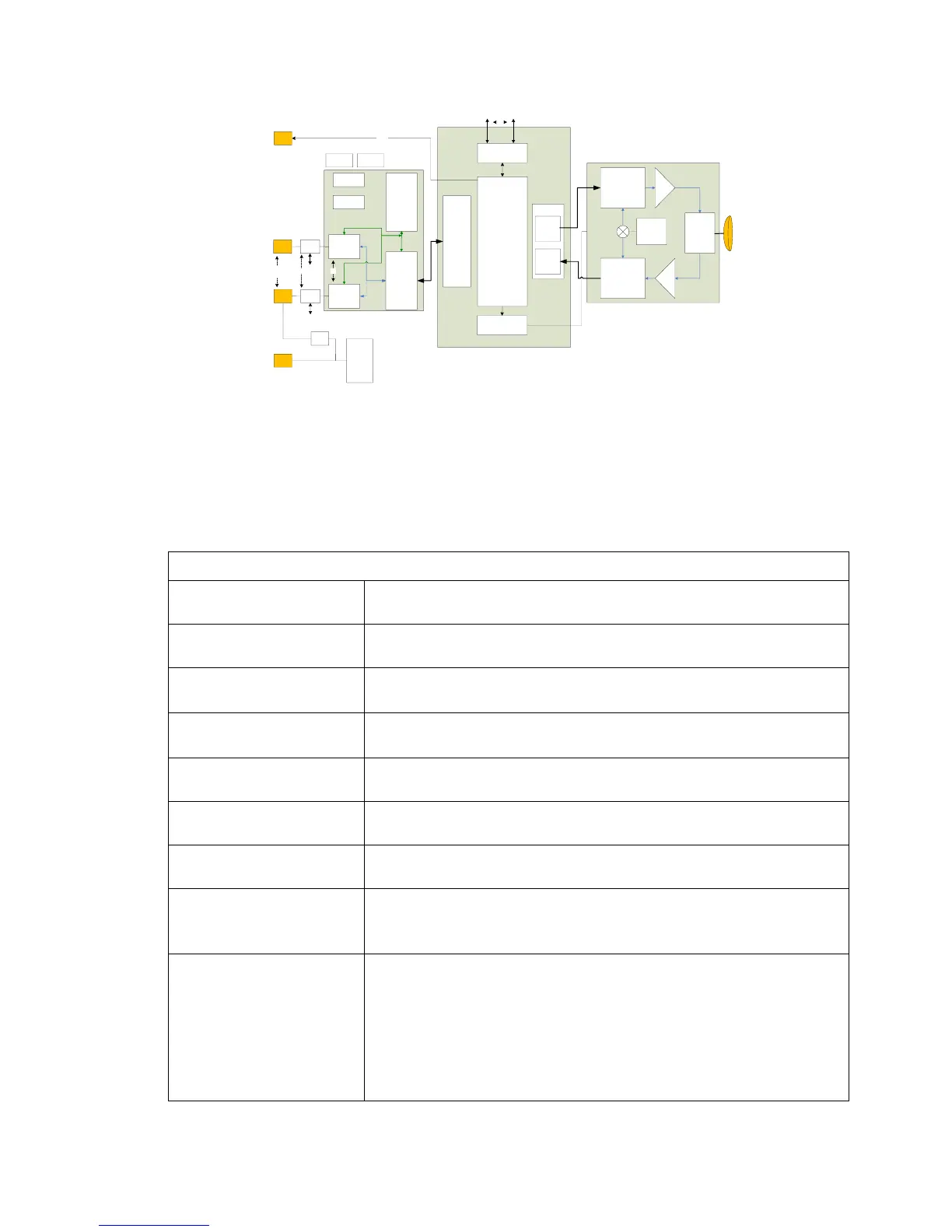

Figure 1-2 V-Band Functional Block Diagram
1.3 Technical Specifications
For detailed technical specifications please refer to the datasheet.
For detailed supported features list please refer to the product’s release notes.
V-Band
Technology and frequency
 TDD, 57-71GHz
Modulation
 QPSK/QAM16/QAM64
Adaptive modulation
 Hitless adaptive bandwidth, coding and modulation, boosting system
gain by 25dB
Over-the-air throughput
 Up to 1000Mbps aggregated (with asymmetric downlink/uplink rate
support)
Typical link distance
 Up to 1000m
Interfaces
 3x100/1000 base-T
Antenna
 Integrated, 36dBi min. typical 37dBi
Power options
 PoE+ (IEEE 802.3at)
 2x PSE Outputs – total 53W on Eth2 and Eth3:
2 x 26W or 40W+13W
Ethernet features
 VLAN (IEEE 802.1q) and VLAN stacking (Q-in-Q, IEEE 802.1ad Provider
Bridge)
 IEEE 802.1d Transparent Bridging
 Advanced QoS &Traffic management- 802.1p, DSCP & MPLS EXP
o Scheduling, Shaping, Policing
 MEF 9,14 and 21 compliant
 Ethernet OAM and CFM (IEEE 802.1ag / ITU-T Y.1731 / IEEE 802.3ah)
