EH-500/600 Installation Manual
Page 30
Note:
Switch both sides to Alignment mode only in cases where you fail to achieve optimal
alignment after considerable tries. Switching the ODU to Alignment mode can be
done using the web-based management or by short-press on the push button on
Eth3 port, toggling the ODU between Adaptive and Alignment modes (following
system reboot).
Connect the RJ45 connector of the Alignment RSSI adapter cable for DVM that can be
found in the box to Eth3 port to get RSSI reading.

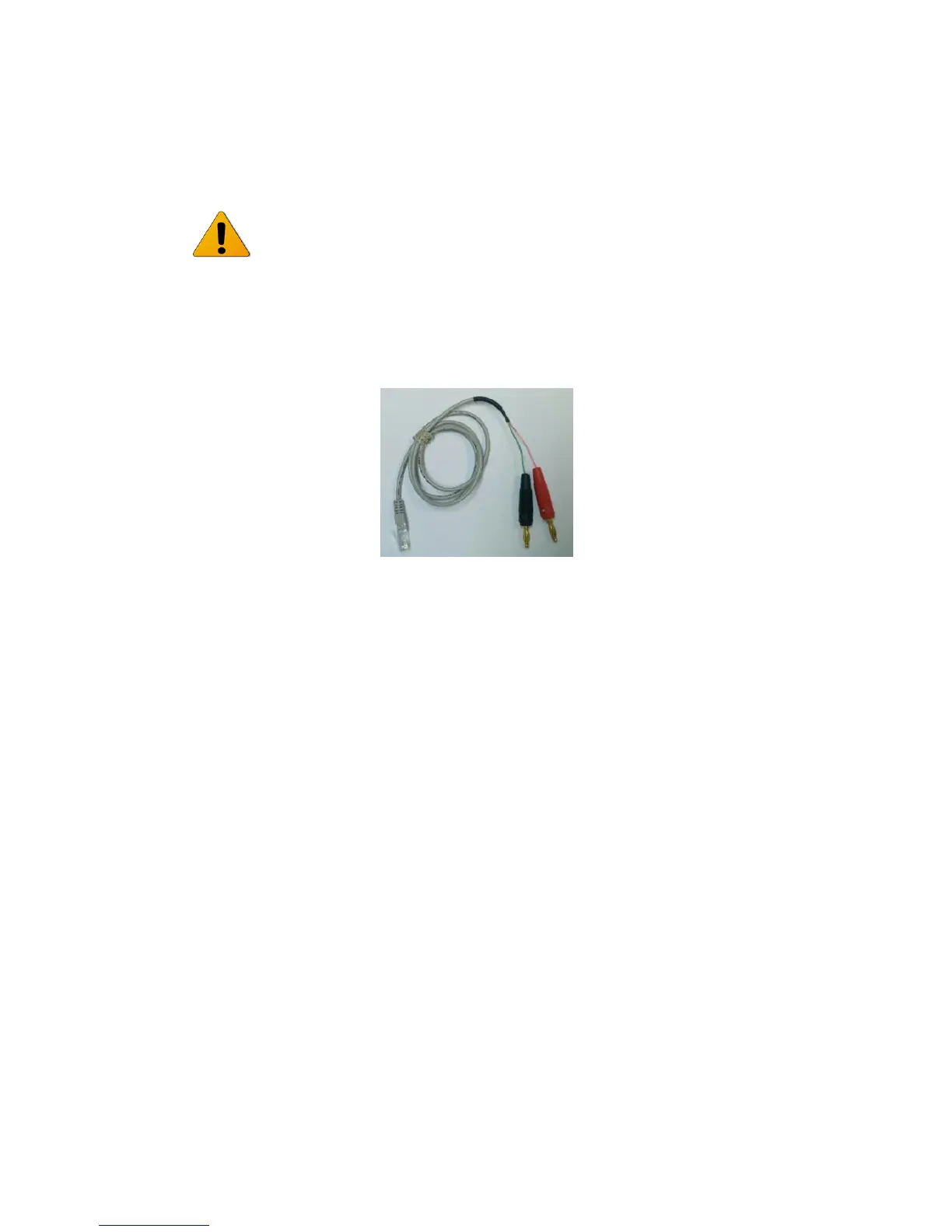

Figure 2-6 RSSI RJ45 Adapter
