Mute – checkbox to mute the transmitter with timeout in seconds. When
muted, the ODU will not transmit.
3.5.4 Modulation Table

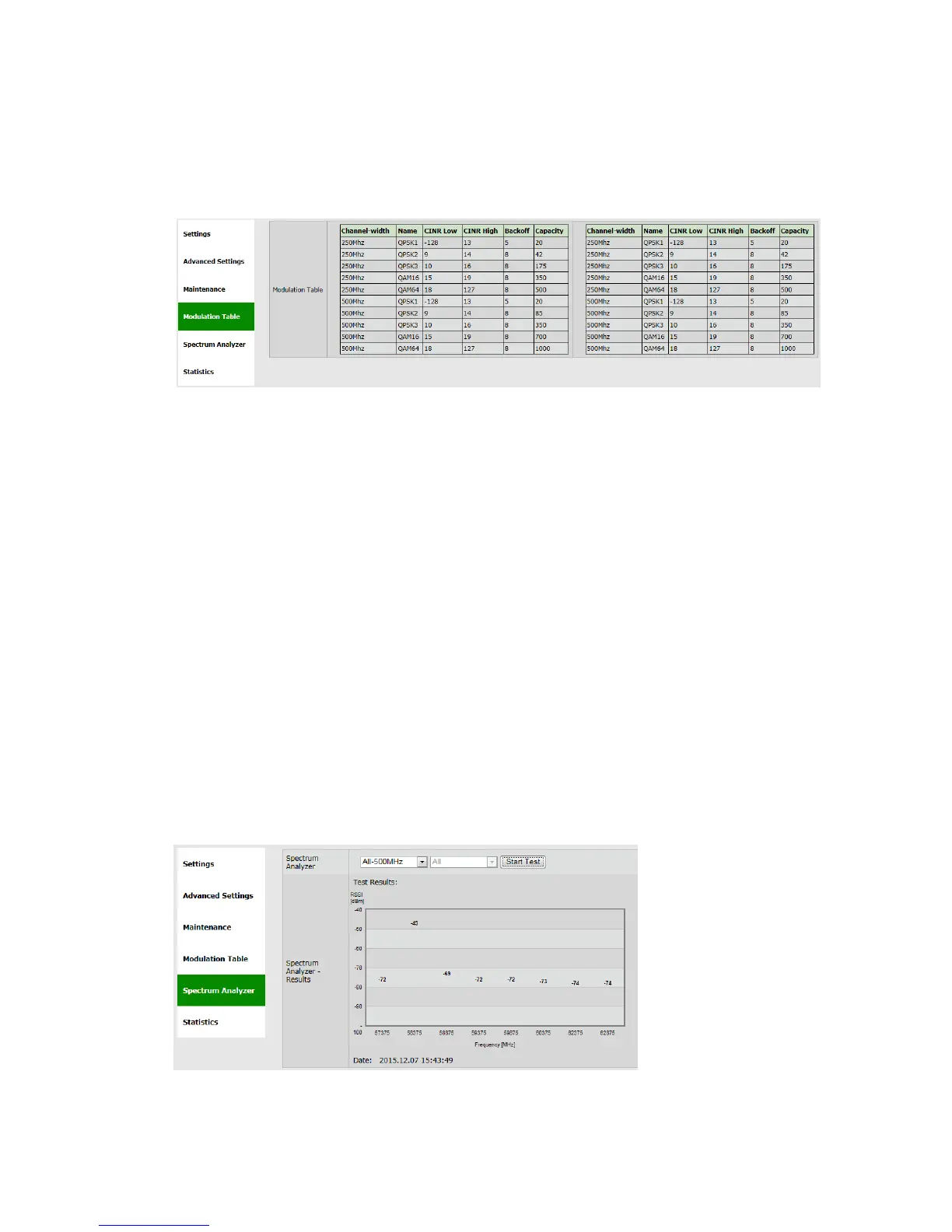

Figure 3-12 Radio Page: Modulation Table
The modulation table presents the available modulation profiles. The radio can be
configured only to one of the profiles available in the table.
CINR Low – Lower threshold for stepping down in modulation profile (Adaptive
Mode).
CINR High – Upper threshold for stepping up in modulation profile (Adaptive
Mode).
Note that different modulation tables may apply according to product used, the
frequency channel used and ARQ status.
The modulation profiles and thresholds are optimized and should not be modified
(can be configured via CLI only after consulting Siklu support).
3.5.5 Spectrum Analyzer
Site survey option to allocate free and un-interfered channels.
Radio link will go down and the ODU will scan all selected channels (about 1 minute
per channel) and display a report of the spectrum scan.
Figure 3-13 Radio Page: Spectrum Analyzer
