EH-500/600 Installation Manual
Page 26
2.7.1 Power Options
To power up the EtherHaul using PoE, connect the cable to Eth#1. Both AC or DC PoEs
can be used.
For direct DC feed, you may use RJ45-DC adapter (Siklu P/N: EH-PoE-DC-adaptor-10) to
provide DC to the ODU over RJ-45 connector (should be connected to Eth#1). Note that
in such case, Eth#1 will be used for power only (no data).

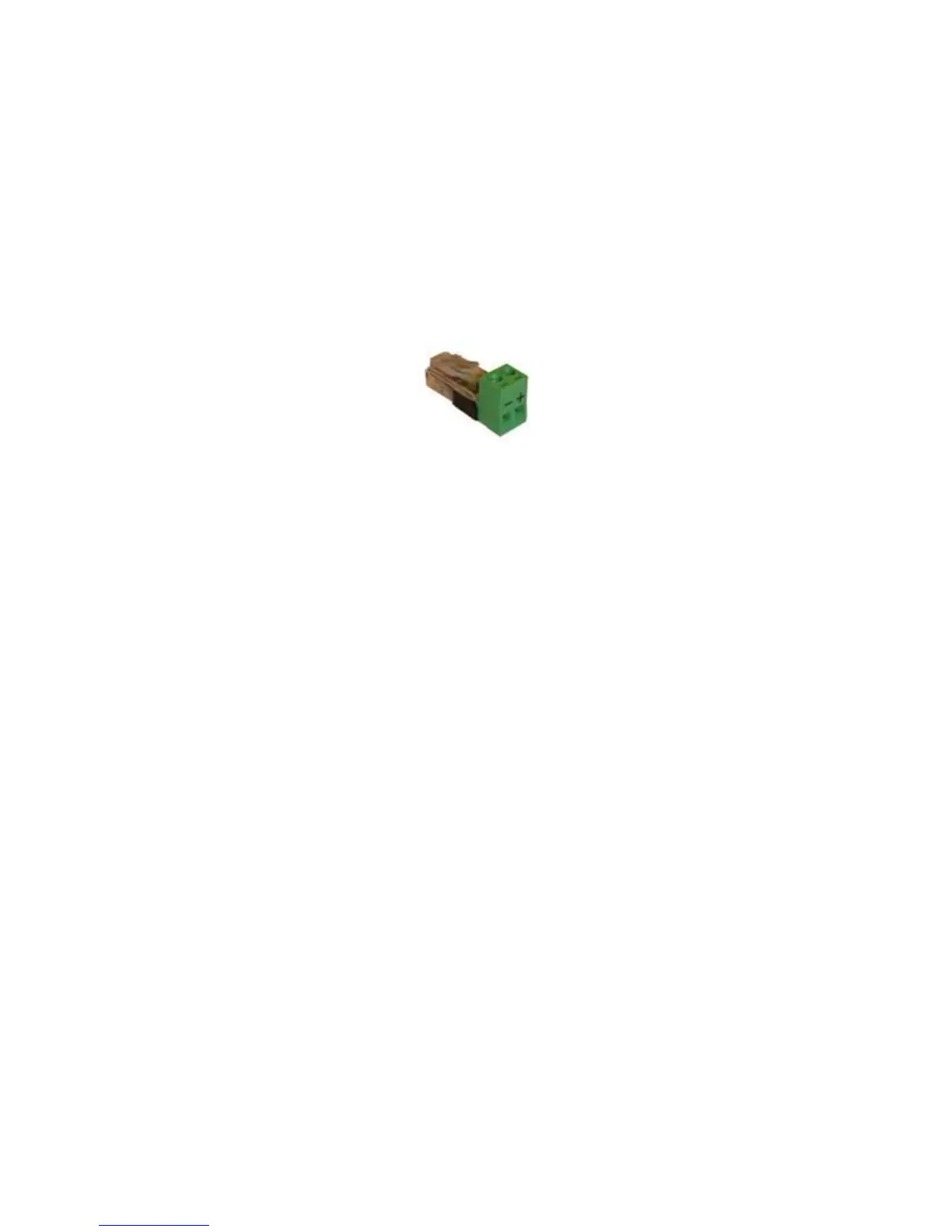

Figure 2-3 PoE-DC RJ45 Adapter
