SIM900 Hardware Design
Figure 38Bottom Mechanical dimensions of module Unit: mm

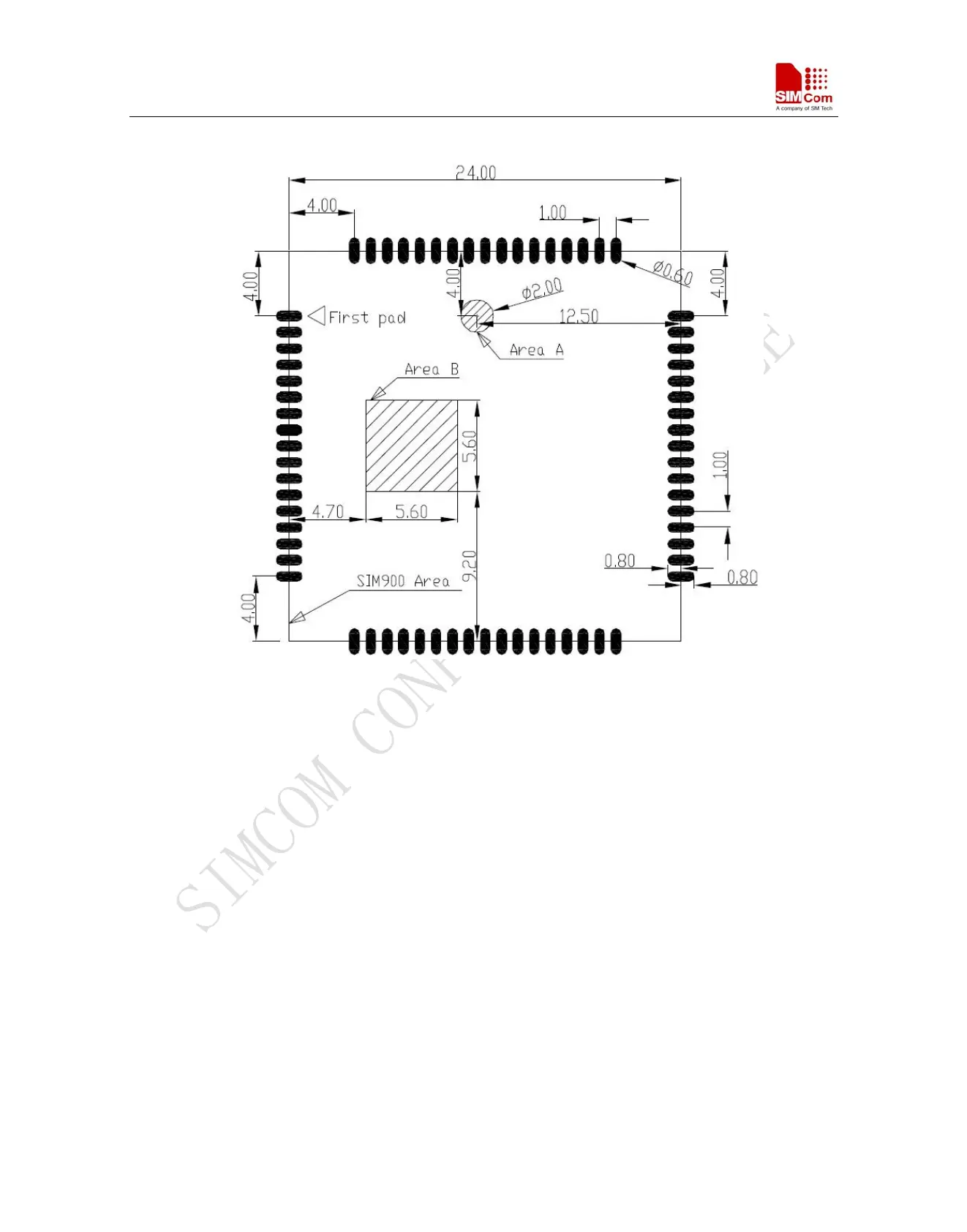

Figure 39: Recommended PCB decalUnit: mm
Note: Area A is keep route out area. Area B should be covered by silkscreen to prevent from the short
between the via on customer board and the test points on the bottom side of the module.
SIM900_HD_V1.05 06.23.2010
54
