Extension 9
RN2
1
RN2
2
RN2
3
RN2
4
RN2
4a
RN2
4b
RN2
4c
RN2
5
RN2
Initiator
DI 1 (2)
DI 1 (2)
DI 1 (2)
DI 1 (1)
DI 1 (1)
DI 1 (2)
DI 1 (1)
DI 1 (1)
DI 1 (1)
RN2-3 transmits data packet (cable connection or radio connection if
cable connection failed or not available).
Target partner Input signal and input counter reading
RN2-4
RN2-4A
1 (2)

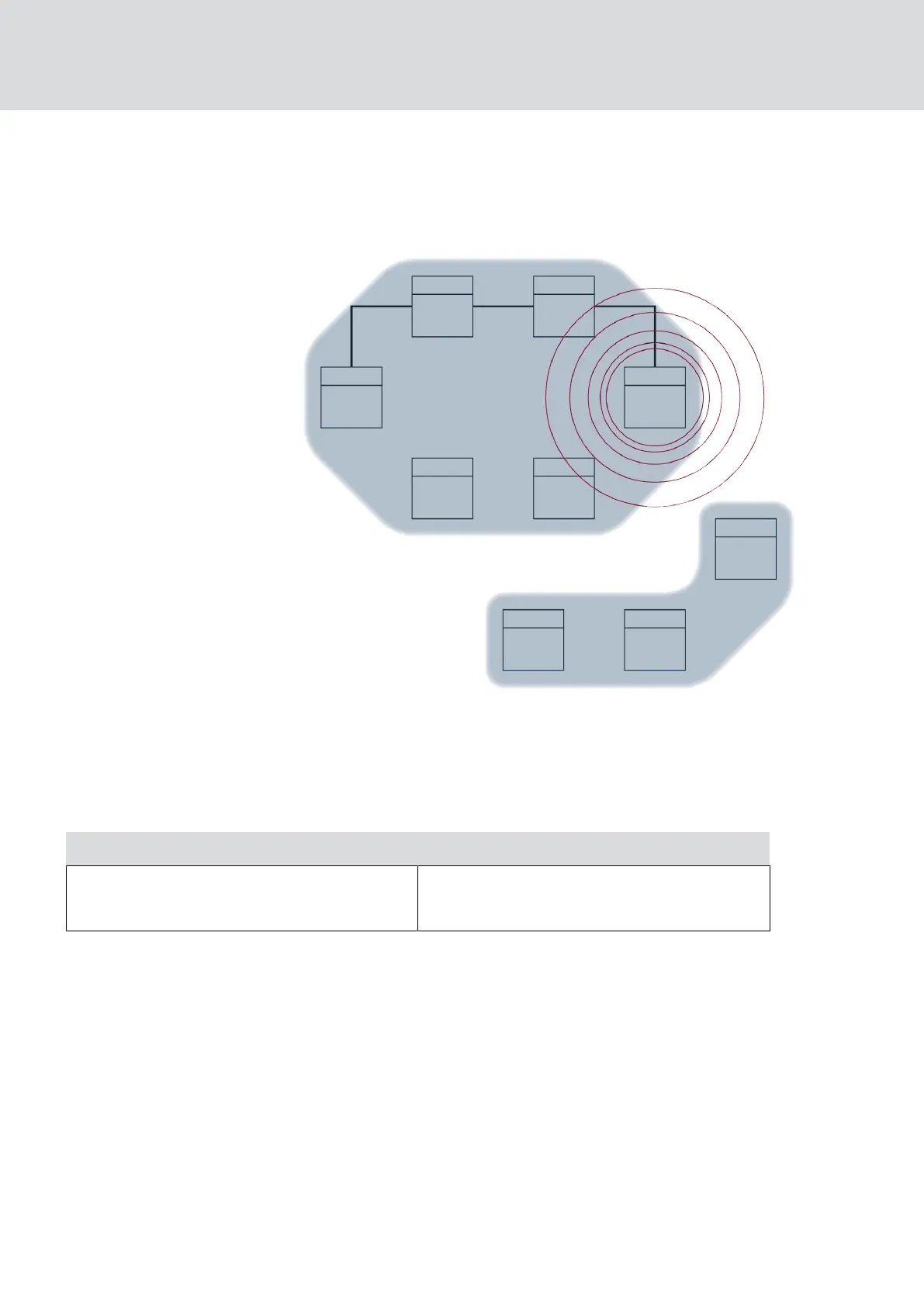

The WaveNet Manager recognises that the radio networks of RN2-4 and
RN2-4A do not influence each other and can therefore simultaneously
propagate the input signal. This accelerates the RingCast.
