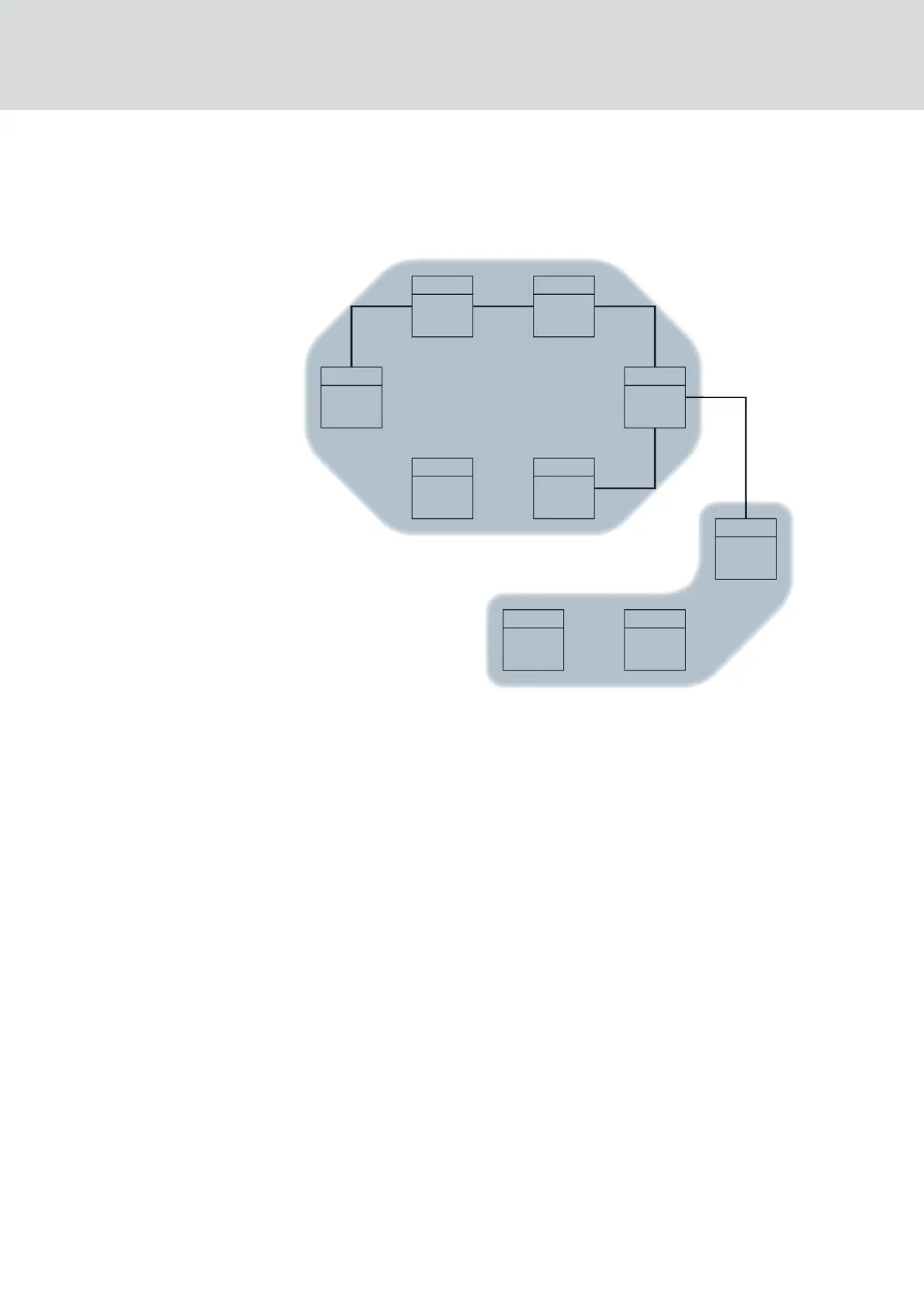

Extension 10
RN2
1
RN2
2
RN2
3
RN2
4
RN2
4a
RN2
4b
RN2
4c
RN2
5
RN2
Initiator
DI 1 (2)
DI 1 (2)
DI 1 (2)
DI 1 (2)
DI 1 (1)
DI 1 (2)
DI 1 (2)
DI 1 (1)
DI 1 (1)
RN2-4 and RN2-4 receive the data packet and checks the conditions one
after the other Actual target partner
and Input counter reading
in data package > currently stored input counter reading.
Both conditions are met →
RN2-4 and RN2-4 accept the data packet and
save the input counter reading of the data packet in its own input counter
reading.
If the data packet is transmitted wirelessly, then other router nodes within
range will also receive the data packet. The condition Actual target partner
is not fulfilled, these RouterNodes discard the data packet.
WaveNet (Manual)
5. WaveNet Manager
107 / 210
