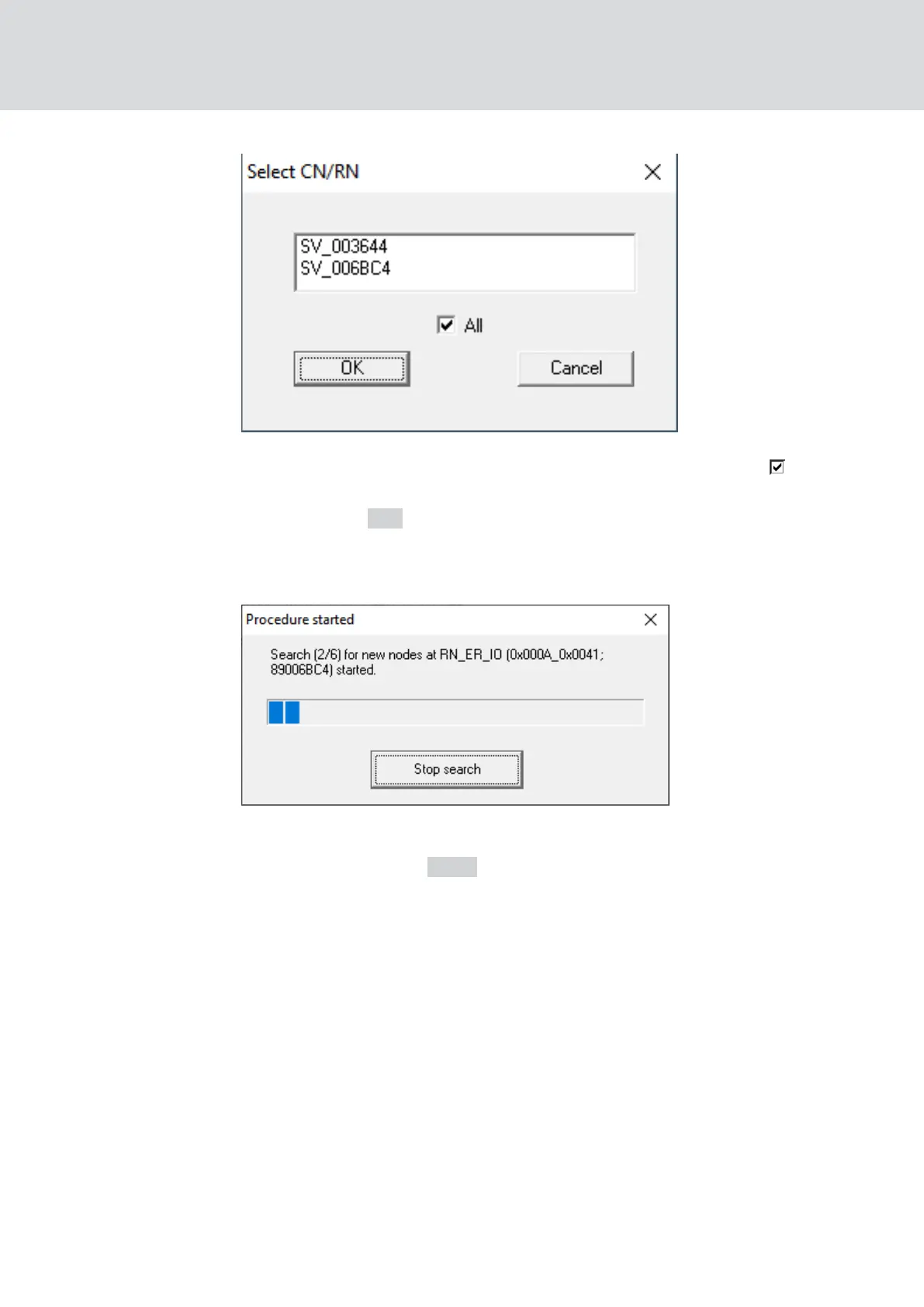

4. Select all RouterNodes you want to search with or check the all
checkbox to automatically configure your entire WaveNet.
5. Click on the OK button.
9 The window "Select CN/RN" closes.
9 The "Procedure started" window opens temporarily.
9 Accessed devices (RouterNodes, LockNodes) are listed.
6. Click on the button Save .
9 Accessed devices (RouterNodes, LockNodes) are added. LockNodes
have been assigned to the RouterNodes from your selection that are
best accessible.
5.4.2.2 Restricted (select RouterNode directly)
ü WaveNet Manager opened via LSM (see
Best Practice: From the LSM
software [}37]
)
ü RouterNodes/LockNodes within range.
1. Right-click on the entry of the RouterNode from which you want to
automatically search and configure.
9 The window "Administration" opens.
WaveNet (Manual)
5. WaveNet Manager
46 / 210
