Data package Depending on the transmission path, a RouterNode may have one or more
other RouterNodes as target partners. Sending RouterNodes transmit a
data packet consisting of:
Target partners who are to receive the data packet
Input signal to be forwarded
Counter reading of the corresponding input at the initiator
Stand-alone The information which RouterNodes have which target partners is also
stored in the RouterNodes themselves. The RingCast therefore functions
independently of connected computers.
5.4.5.1 Procedure at the individual RouterNode viewed

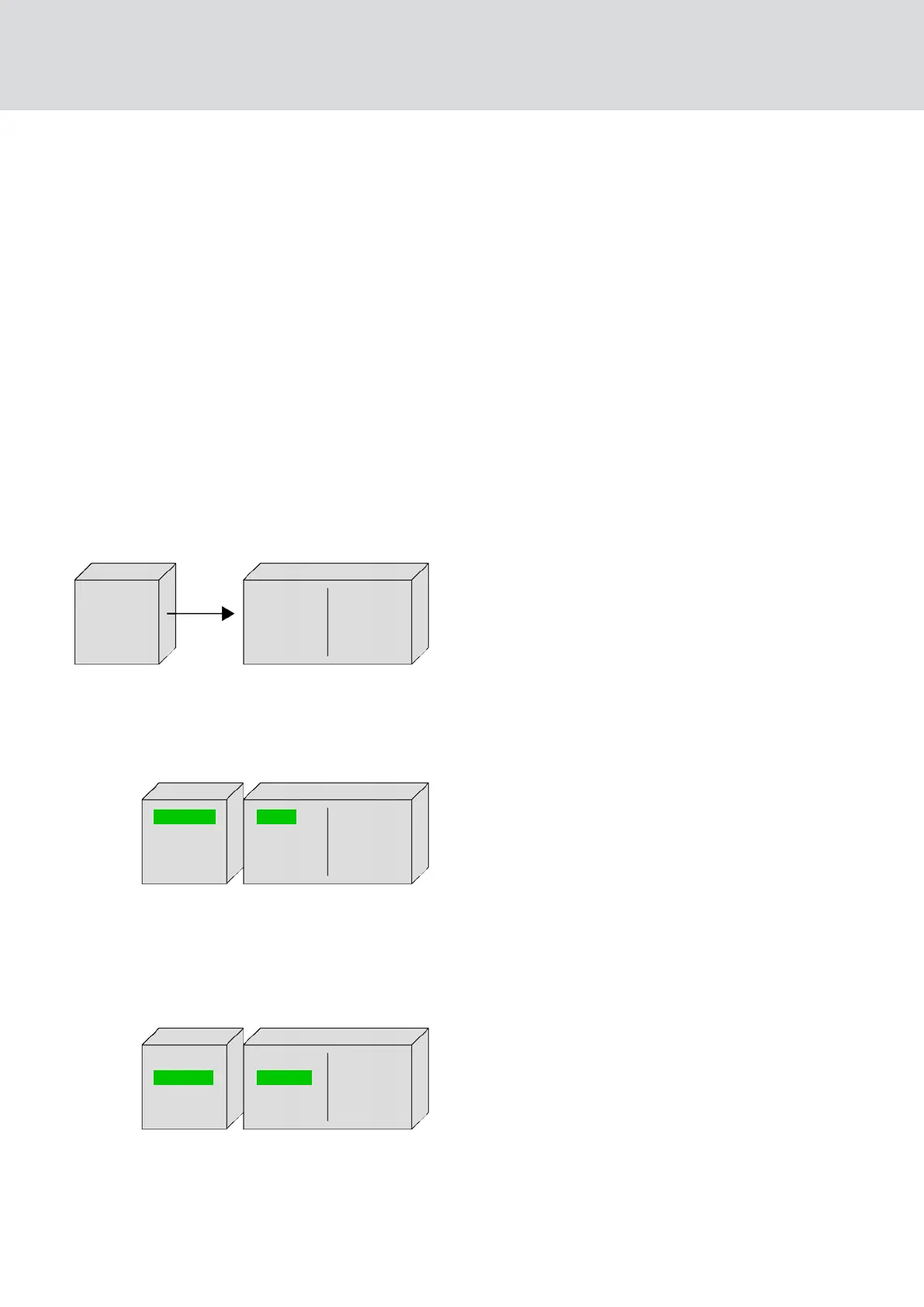

Sequence of the RingCast at a RouterNode 2:
1. Receive data packet
To: RN2-3
Input 1: 10
RN2-3
Input 1: 9
Input 2: 6
Input 3: 12
Target partner
RN2-4
2. Check data package: Actual target partner
If the check fails, the data packet is discarded.
To: RN2-3
Input 1: 10
RN2-3
Input 1: 9
Input 2: 6
Input 3: 12
Target partner
RN2-4
3. Check data package: Input counter reading in data package >
currently stored input counter reading
If the check fails, the data packet is discarded.
To: RN2-3
Input 1: 10
RN2-3
Input 1: 9
Input 2: 6
Input 3: 12
Target partner
RN2-4
4. Save input counter reading of the package
WaveNet (Manual)
5. WaveNet Manager
95 / 210
