NOTE
Transmission behaviuor after terminal recognition of the RingCast
The termination detection means that the shortest possible intact path of
the RingCast has been passed and all RouterNodes on this path have re-
ceived the input signal.
Transmission is still possible on (longer) redundant paths or branches.
The terminal recognition therefore does not say anything about whether
participating RouterNodes are still sending.
5.4.5.2 Sequence considered at several RouterNodes

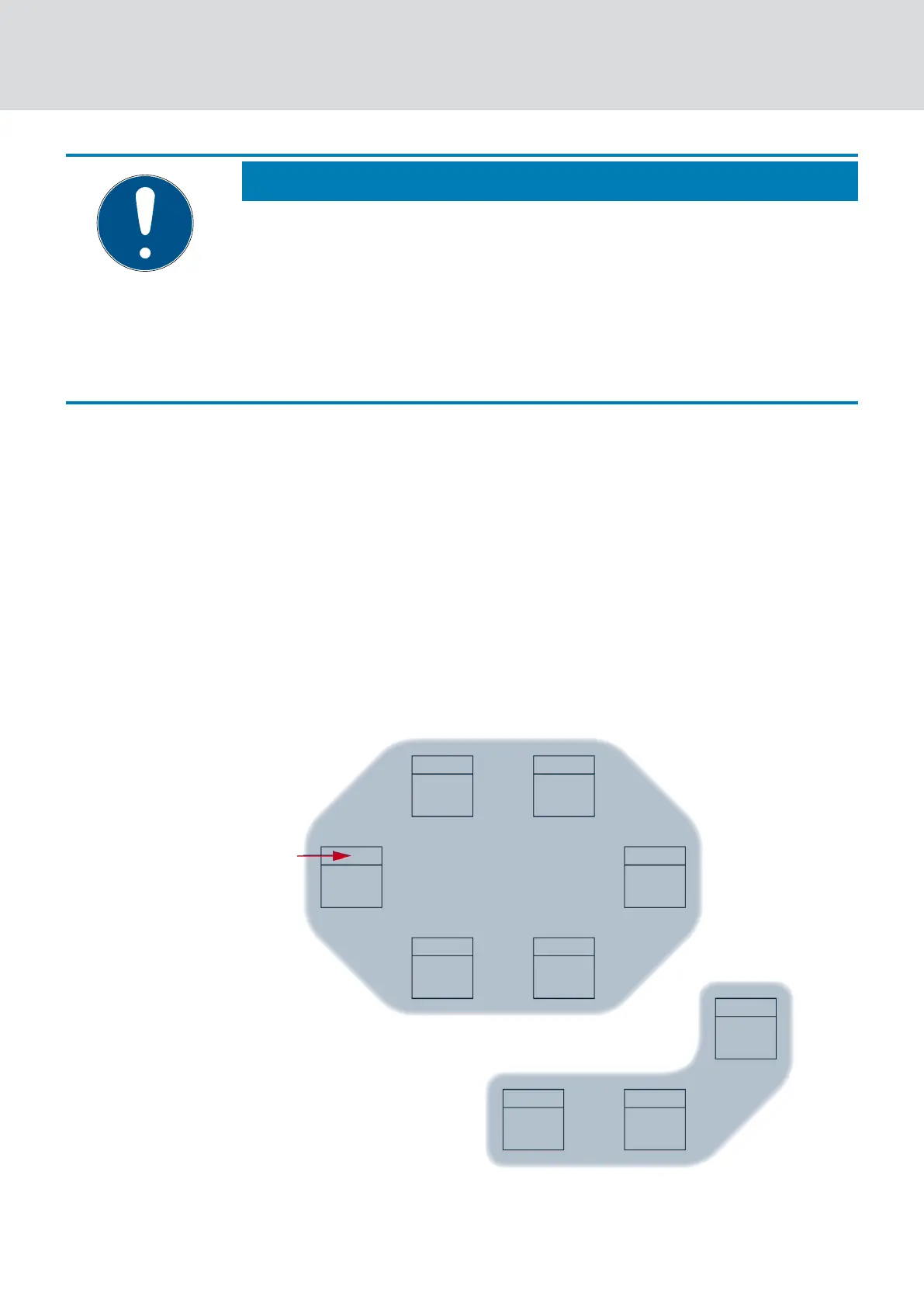

With this example you can follow the process of a RingCast. This RingCast
contains:
 Branches
 Redundant paths of different lengths
The input signal in this example is 1.
Extension 1
RN2
1
RN2
2
RN2
3
RN2
4
RN2
4a
RN2
4b
RN2
4c
RN2
5
RN2
Initiator
1
DI 1 (1)
DI 1 (1)
DI 1 (1)
DI 1 (1)
DI 1 (1)
DI 1 (1)
DI 1 (1)
DI 1 (1)
DI 1 (1)
