6 - 37
6 General Repair
6C Foot Controls Repair

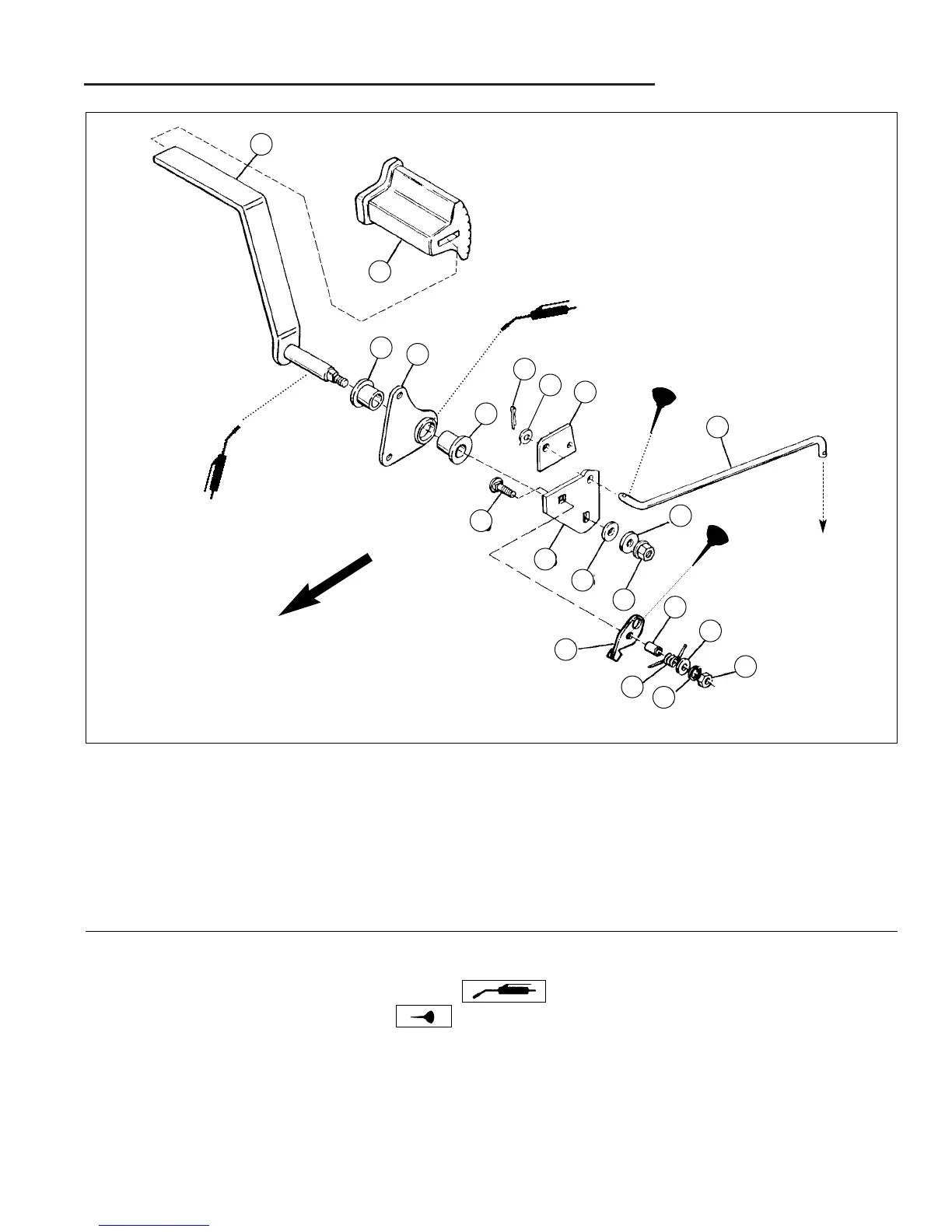

Figure C–11. Broadmoor Hydro Foot Control - Brake Pedal Assembly Parts - Hydro-Gear 0750 / 0800
A. Brake Pedal Assembly
B. Foot Pedal Pad
C. Plastic Bushing
D. Lift Cam
E. Cotter Pin
F. 5/16" Plain Washer
G. Parking Brake Cam
H. Clutch Rod
I. 13/32" x 1-1/2" x 1/16" Washer
J. Spacer
K. 5/16" Washer
L. 5/16-18 Hex Nut
M. 5/16 Lockwasher
N. Tension Spring
O. Switch Actuator
P. 3/8-16 ESNA Hex Nut
Q. Washer
R. Foot Pedal Arm
S. 5/16-18 x 1-1/4" Carriage Bolt
A
B
C
D
E
G
G
S
R
Q
I
P
O
J
K
L
M
N
C
To Idler Arm
Assembly
F
FRONT
NOTES:
1. Unless specified, use torque specifications shown on standard hardware torque specification chart.
2. Grease locations indicated by grease gun symbol:
3. Oil locations indicated by oil can symbol:
