Simplicity LTH Series Service Manual

6 General Repair
6C Foot Controls Repair
6 - 38

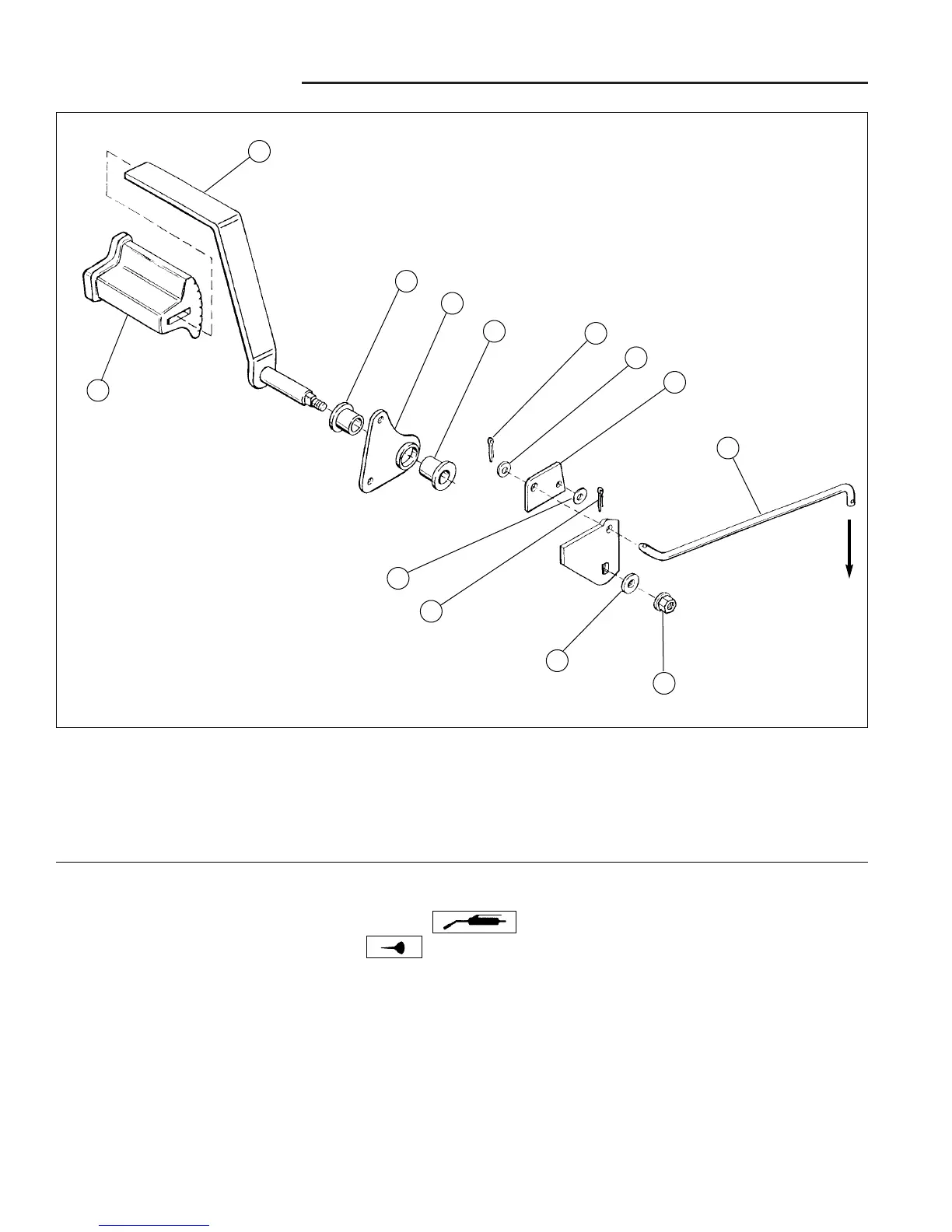

Figure C–12. Broadmoor HYDRO Foot Control - Brake Pedal Assembly Parts - Eaton 750 / 751 & Tuff Torq
K60
A. Brake Pedal Assembly
B. Plastic Bushing
C. Lift Cam
D. Cotter Pin
E. 11/32" Washer
F. Parking Brake Cam
G. Clutch Rod
H. 3/8-16 ESNA Hex Nut
I. 3/8" Washer
J. 9/32 Washer
K. Cotter Pin
L. Foot Pedal Pad
NOTES:
1. Unless specified, use torque specifications shown on standard hardware torque specification chart.
2. Grease locations indicated by grease gun symbol:
3. Oil locations indicated by oil can symbol:
A
B
L
C
B
D
E
F
G
J
K
I
H
To Clutch
Lever
