6 - 43
6 General Repair
6C Foot Controls Repair

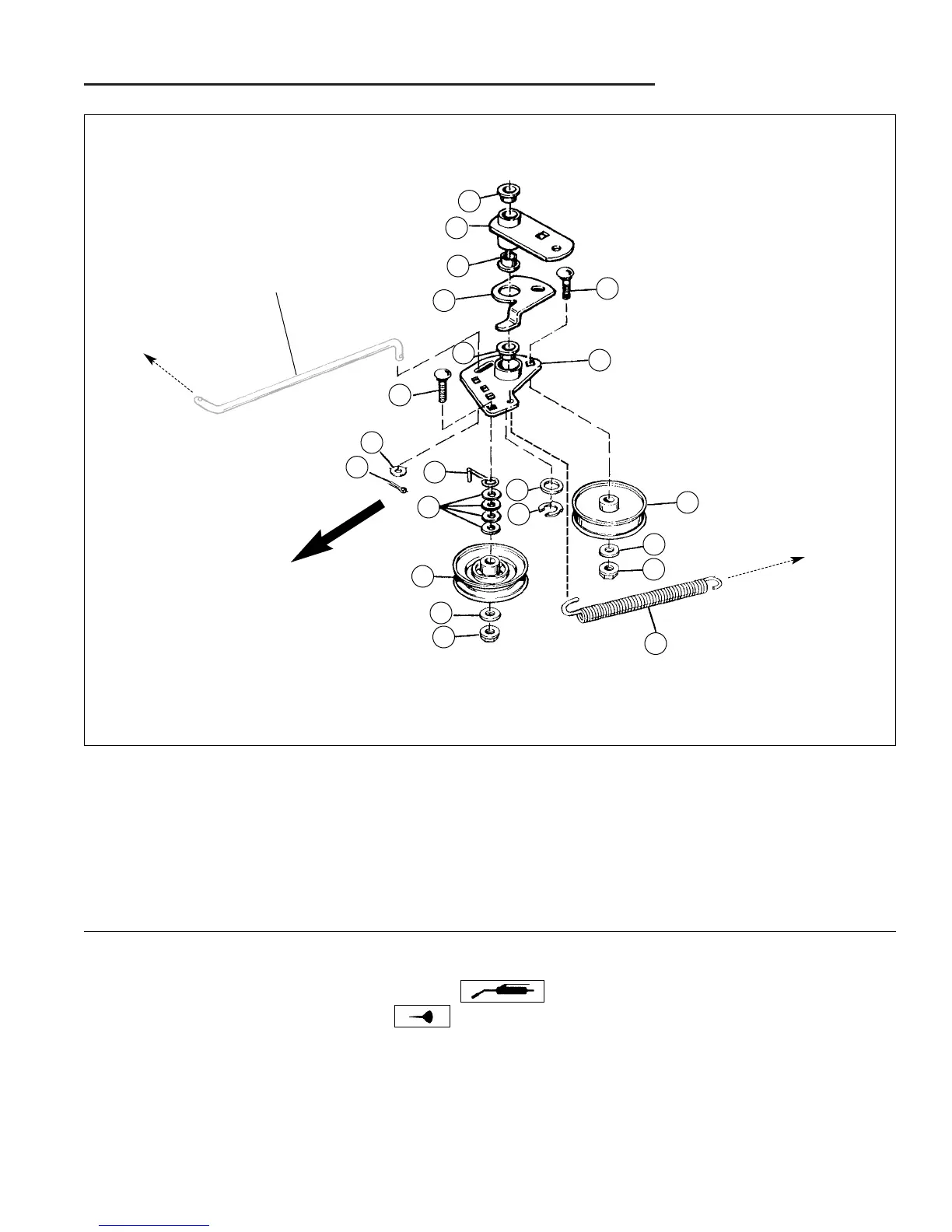

Figure C–23. Broadmoor Hydro Foot Control - Idler Arm Assembly Parts - Hydro-Gear
A. Plastic Bushing
B. 3/8-16 x 1-3/4" Carriage Bolt
C. Idler Arm Assembly
D. Flat Idler Pulley
E. 13/32 Washer
F. 3/8-16 Flange Whizlock Nut
G. Drive Spring
H. "V" Pulley
I. 5/8" Clip ring
J. 5/8"Washer
K. Belt Stop
L. Cotter Pin
M. 5/16" Washer
N. Lockout Lever
O. Shift Pivot Assembly
A
O
A
N
B
C
A
B
M
L
K
E
J
I
H
E
F
D
E
F
G
To Foot Pedal
Arm Linkage
Clutch Rod
To Slot In
Transmission
Bracket
FRONT
NOTES:
1. Unless specified, use torque specifications shown on standard hardware torque specification chart.
2. Grease locations indicated by grease gun symbol:
3. Oil locations indicated by oil can symbol:
To Next Page
