6 General Repair
6C Foot Controls Repair

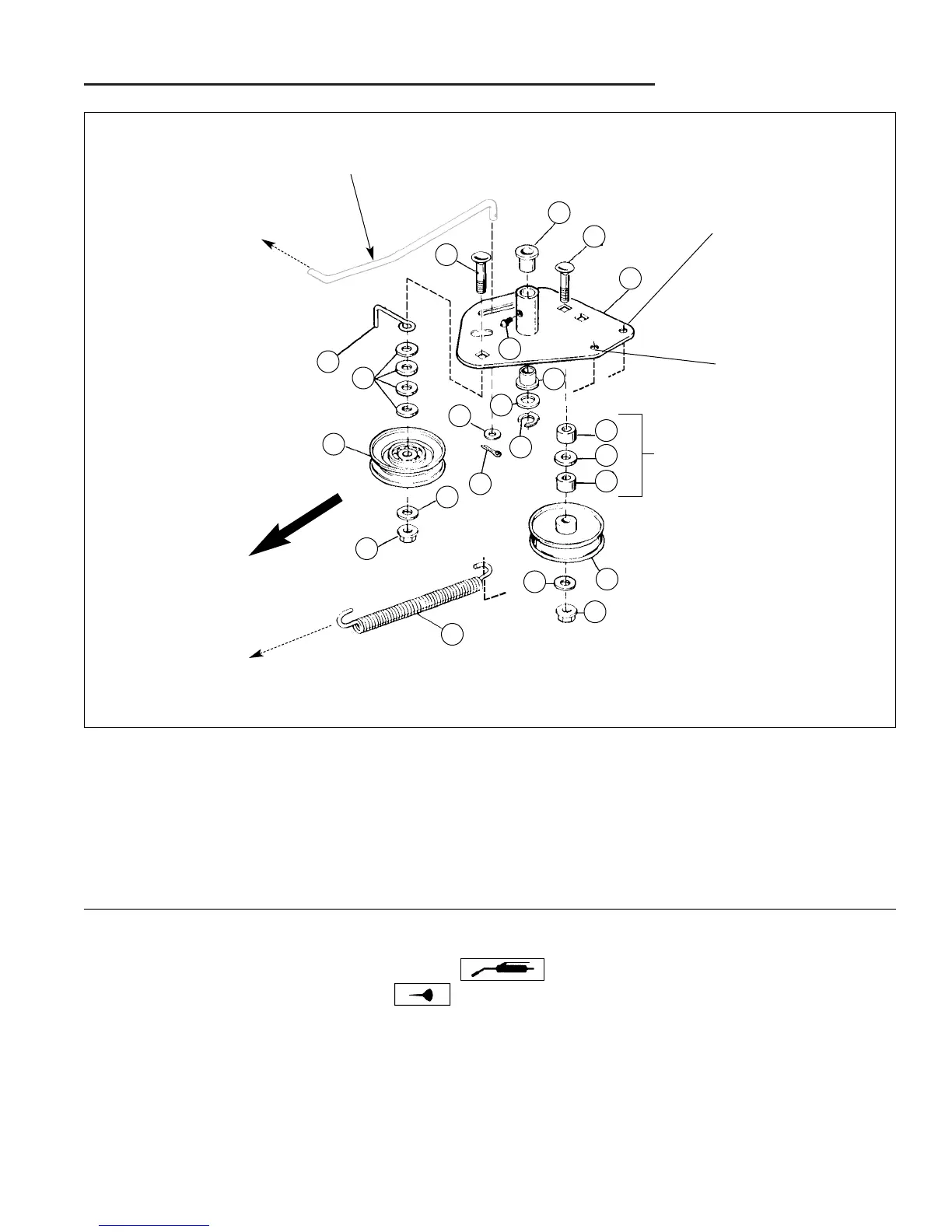

Figure C–25. Broadmoor Gear Foot Controls - Idler Arm Assembly Parts - Peerless 801
A. Plastic Bushing
B. 3/8-16 x 1-3/4" Carriage Bolt
C. Idler Arm Assembly
D. 5/8" Washer
E. 5/8 Clip ring
F. Idler Pulley
G. 3/8-16 Whizlock Flange Nut
H. 13/32" Washer
I. Cotter Pin
J. Drive Spring
K. "V" Pulley
L. 11/32" Washer
M. Belt Stop
N. Spacer
O. Spacer
P. Grease Fitting
To Foot
Pedal Arm
Linkage
A
P
B
C
B
M
H
A
D
L
K
E
I
H
G
H
F
G
J
Clutch
Rod
FRONT
Attach To Front
End Of Frame -
Steering Mounting
Area
NOTES:
1. Unless specified, use torque specifications shown on standard hardware torque specification chart.
2. Grease locations indicated by grease gun symbol:
3. Oil locations indicated by oil can symbol:
Initial Mounting Hole
For Drive Spring "J"
Mounting Hole For
Drive Spring "J"
After Belt Wear-In
N
H
O
Early Models
