7 Transmission Repair
7B Eaton 750 / 751
7 - 38

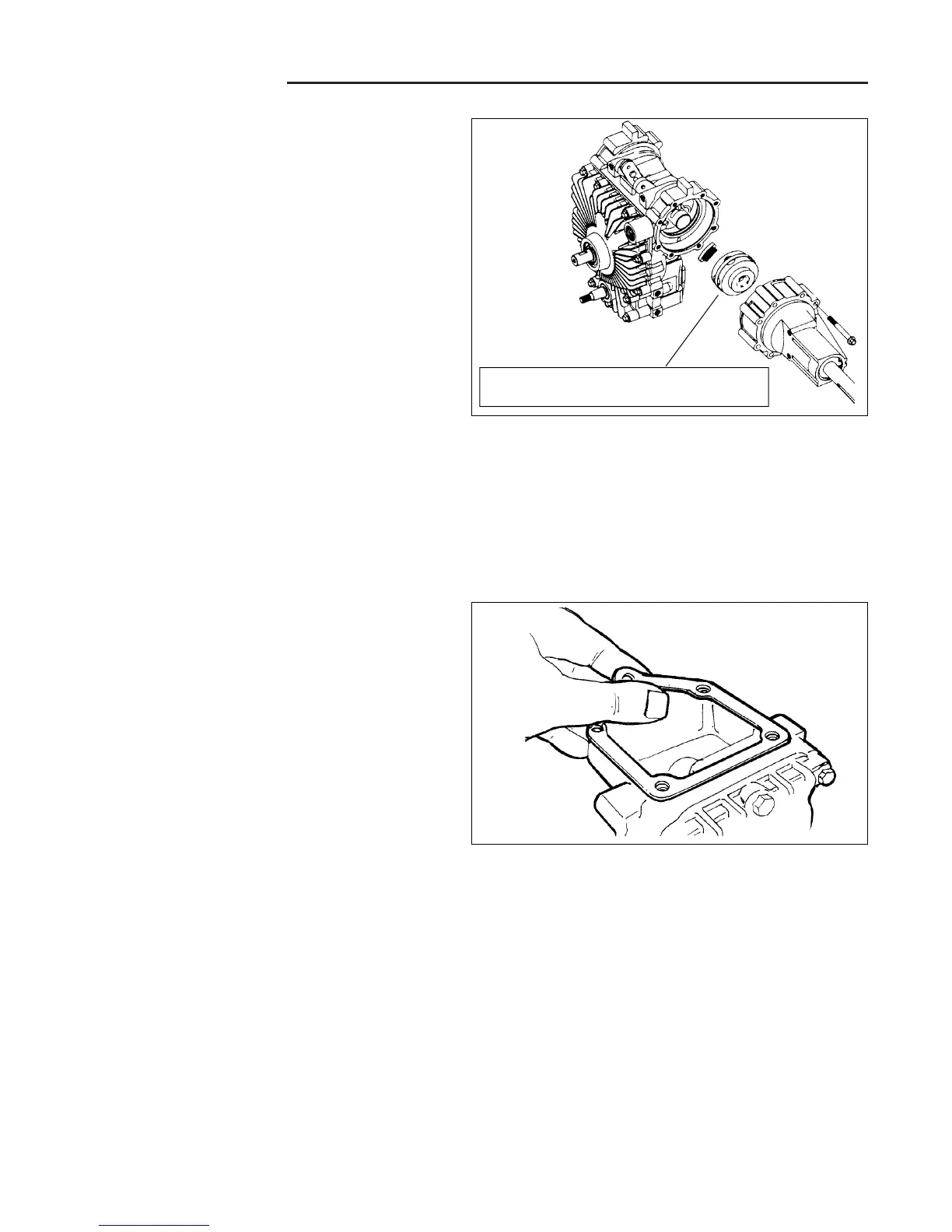

Figure B–100. Install Axle Housing On Transaxle
22. Reposition and clamp the transaxle housing to the
bench. Install the motor rotor assembly.
23. Install the friction brake pad into its recess located in
the housing assembly.
24. Carefully retain the planetary assemblies in position.
Install the axle housing assembly on the housing
assembly.
25. Install the axle housing flange screws and torque to
125 lb-in .(14 Nm).
Repeat the above assembly steps for the other axle.
Figure 4H 101. Install Gasket and Valve Cover
26. Reposition the transaxle and install the gasket, inter-
nal filter and valve cover (position metal side of filter
toward housing and gasket).
27. Aligning the screw holes, install five (5) flange
screws.
28. Torque screws to 125 lb-in. (14 Nm) in a cross pat-
tern.
