7 Transmission Repair
7C Tuff Torq K60
7 - 60
51. Remove the center case from motor shaft.
NOTE: Use care when removing the center case to pre-
vent damage to the center case and cylinder blocks.

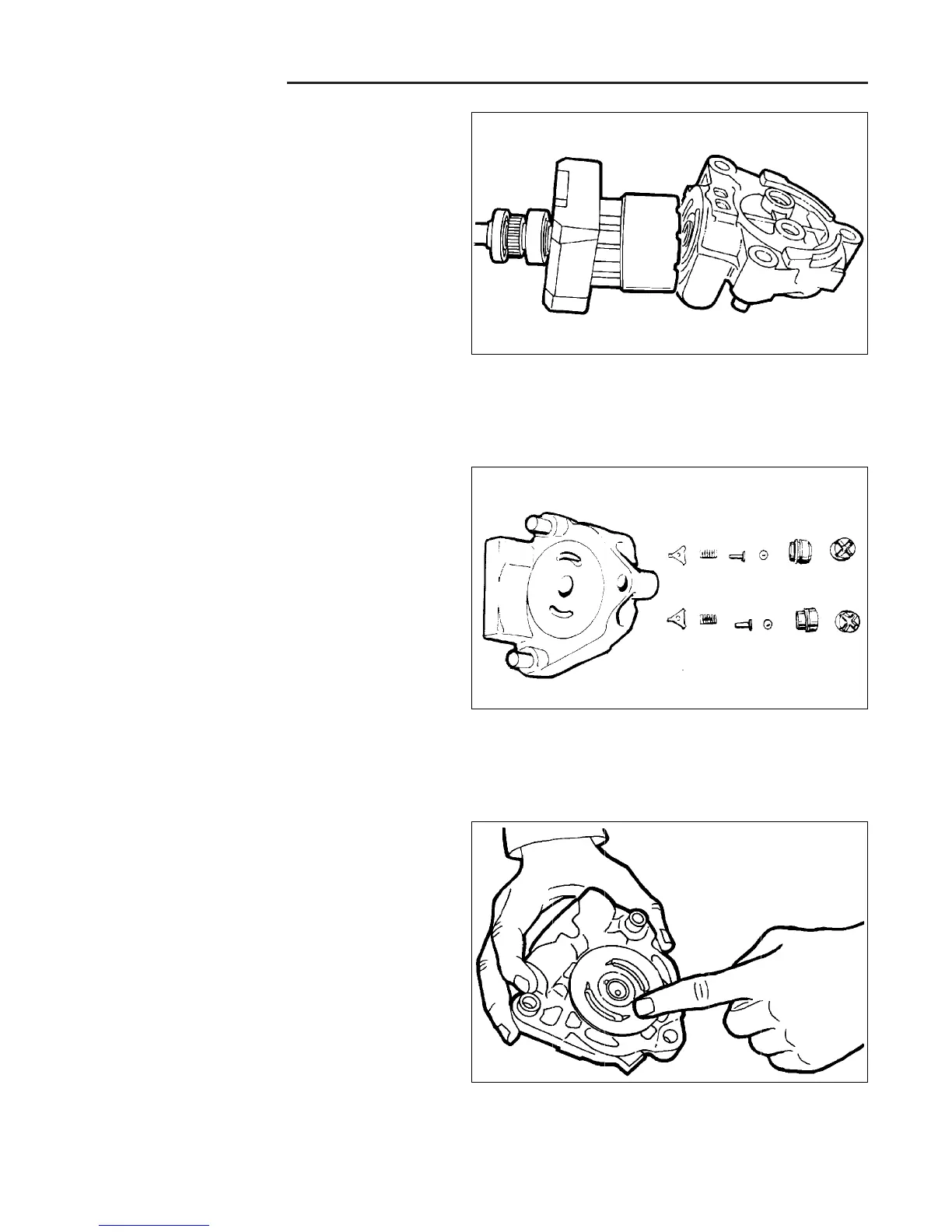

Figure C–50. Remove Center Case
52. Remove the two sleeves, back-up rings, packings,
balls, ball holders, springs, and retainers from the
center case. Keep all the parts in proper order and do
not switch parts side to side.
NOTE: If the bypass valve components cannot be
removed, flushing the components will be sufficient
cleaning.
NOTE: Be careful not to damage the cylinder block or
center case. If either is damaged the center case, pump
cylinder block and motor cylinder block should be
replaced as a set.
53. Inspect the center case for wear or damage.
Figure C–51. Remove Bypass Valve Components
Figure C–52. Inspect Center Case
