Simplicity LTH Series

7 - 59
7 Transmission Repair
7C Tuff Torq K60
43. Remove the left and right axle shaft assemblies from
the differential pinion gear assembly.
44. Inspect the differential gears and thrust washers for
wear or damage.
45. Remove the differential pinion shaft and two differen-
tial pinion gears from the inside large axle gear.
46.Inspect the differential pinion gears and shaft for
wear or damage.
47. Measure the pinion shaft and gears. Replace worn
parts as needed:
Pinion Gear ID: 0.589–0.590“ (14.96–14.99 mm)
Pinion Shaft OD: 0.592-0.593“ (15.03–15.06 mm)
Clearance: 0.002–0.004“ (0.04–0.10 mm)
Clearance (Max): 0.012“ (0.5 mm)

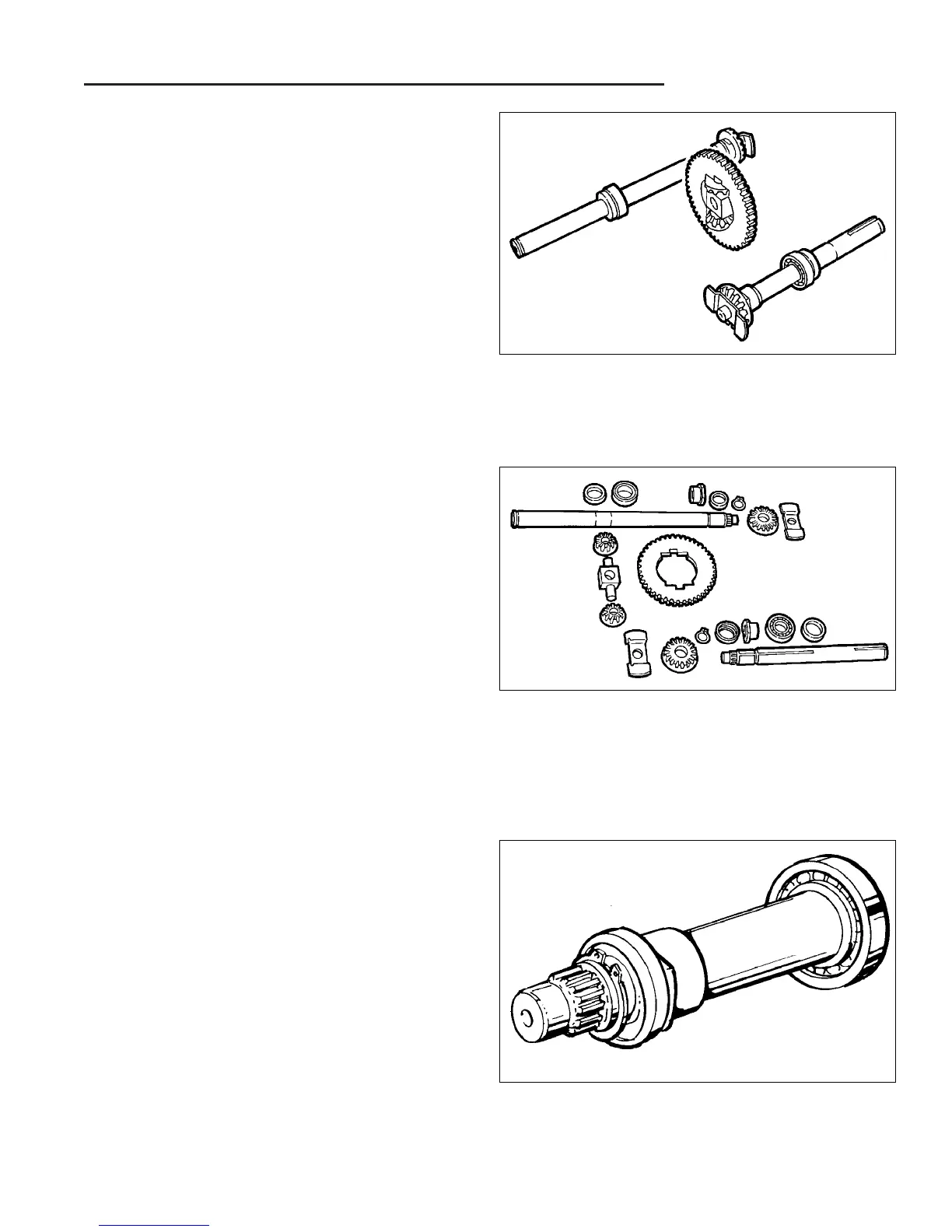

Figure C–47. Remove Differential Gear Assemblies
Figure C–48. Differential Disassembly
48. Remove the snap-ring from the axle shaft. Remove
the collar, bushing, bearing and seal from each axle
shaft.
49. Inspect all parts for wear or damage. Replace if
required:
Axle Bushing ID: 22.06–22.15 mm (0.868—0.872“)
Axle Shaft OD: 21.98–22.00 mm (0.865–0.866“)
Clearance: 0.06–0.17 mm (0.002–0.007“)
Clearance (Max): 0.5 mm (0.020“)
50. Replace seal for assembly.
Figure C–49. Axle Shaft Disassembly
