7 - 69
7 Transmission Repair
7C Tuff Torq K60
27. Apply clean transmission fluid to the motor thrust
bearings and retainer.
28. Assemble three pieces of thrust bearing, and install
into retainer.
NOTE: Install thin race first inside swash plate.

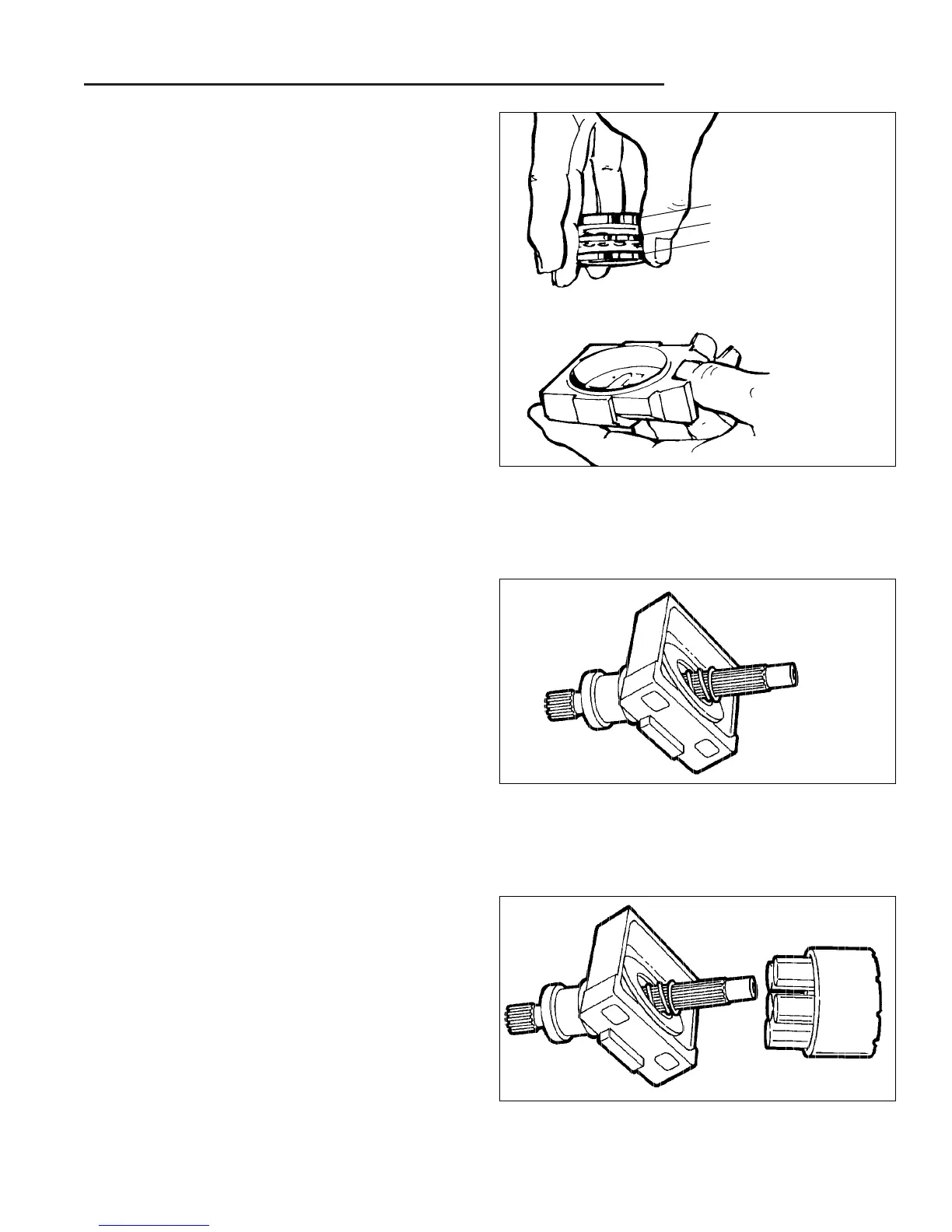

Figure C–75. Assembly Thrust Bearings
Figure C–76. Install Motor Shaft Through Retainer
NOTE: Install the motor shaft retainer rings if not previ-
ously installed.
29. Install the motor shaft through the retainer.
30. Install the motor shaft spring.
Figure C–77. Install Motor Cylinder Block on Shaft
31. Clean and apply clean transmission fluid to the motor
piston components.
32. Install the five springs, washers, and pistons to the
motor cylinder block.
33. Install the motor cylinder block on the motor shaft. Be
sure pistons do not fall out of the block and become
damaged during installation.
Thrust Plate (Thick)
Thrust Bearing
Thrust Plate (Thin)
To Next Page
