7 Transmission Repair
7C Tuff Torq K60
7 - 68
22. Clean, lubricate and install the five springs, washers
and pistons in the pump cylinder block. The pistons
can be installed in any of the ports of the cylinder
block.
23. Install the cylinder block onto input shaft with the pis-
tons making contact with the thrust bearing retainer.
Make sure the pistons do not fall out of the block and
become damaged during installation.
24. Apply clean transmission fluid to all assembled parts.

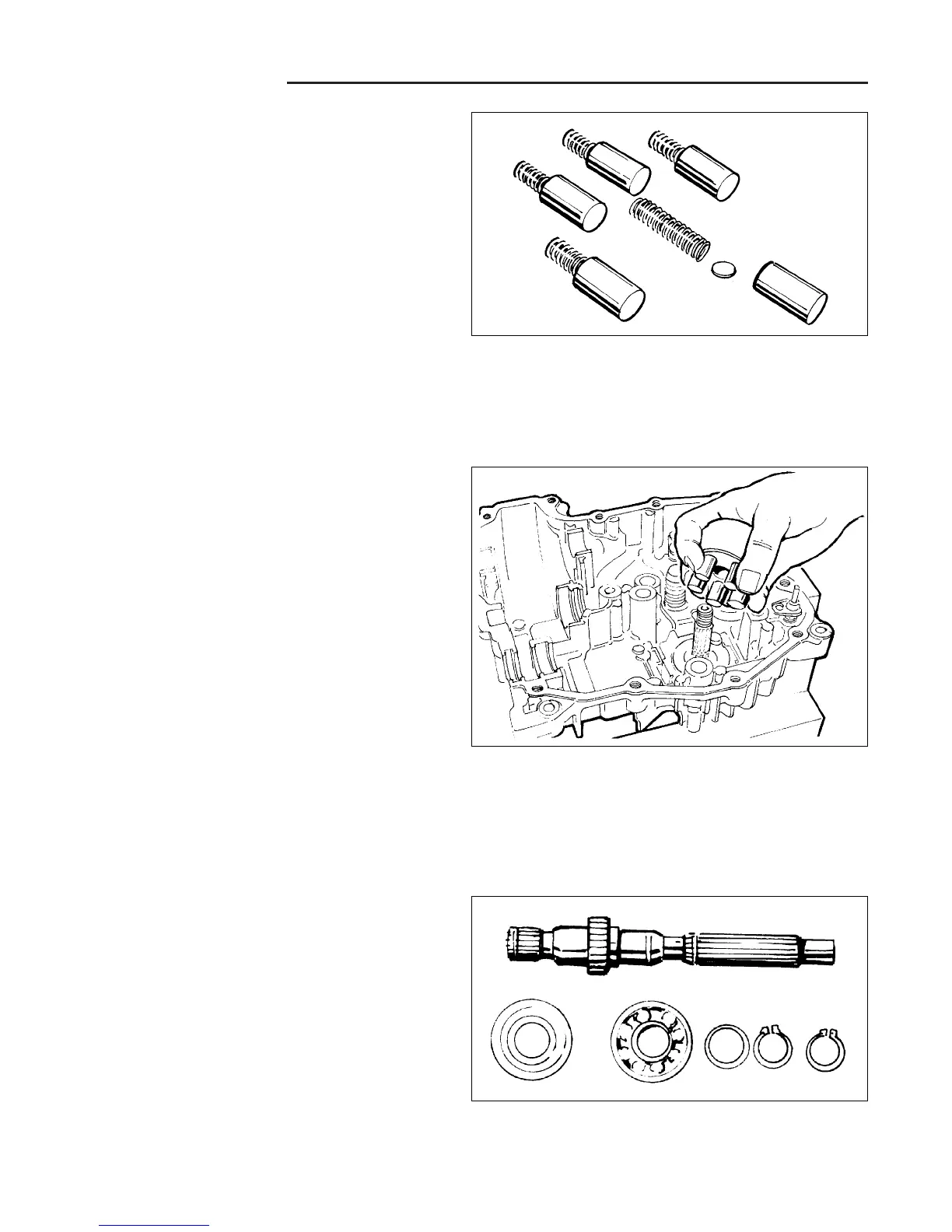

Figure C–72. Install Pump Pistons In Cylinder Block
Figure C–73. Install Pump Cylinder Assembly Onto
Input Shaft
Figure C–74. Assemble Pump Shaft
25. If the motor shaft bearings were removed, install the
bearing, washer, and retaining rings, on the shaft.
26. Apply grease to the lip of the new seal and install on
the shaft.
