7 Transmission Repair
7C Tuff Torq K60
18. Install the swash plate over the pump shaft and set
into the case on the swash plate bushings. Be sure to
align the shift blocks in the groove of the swash plate.
Apply transmission oil to all parts.

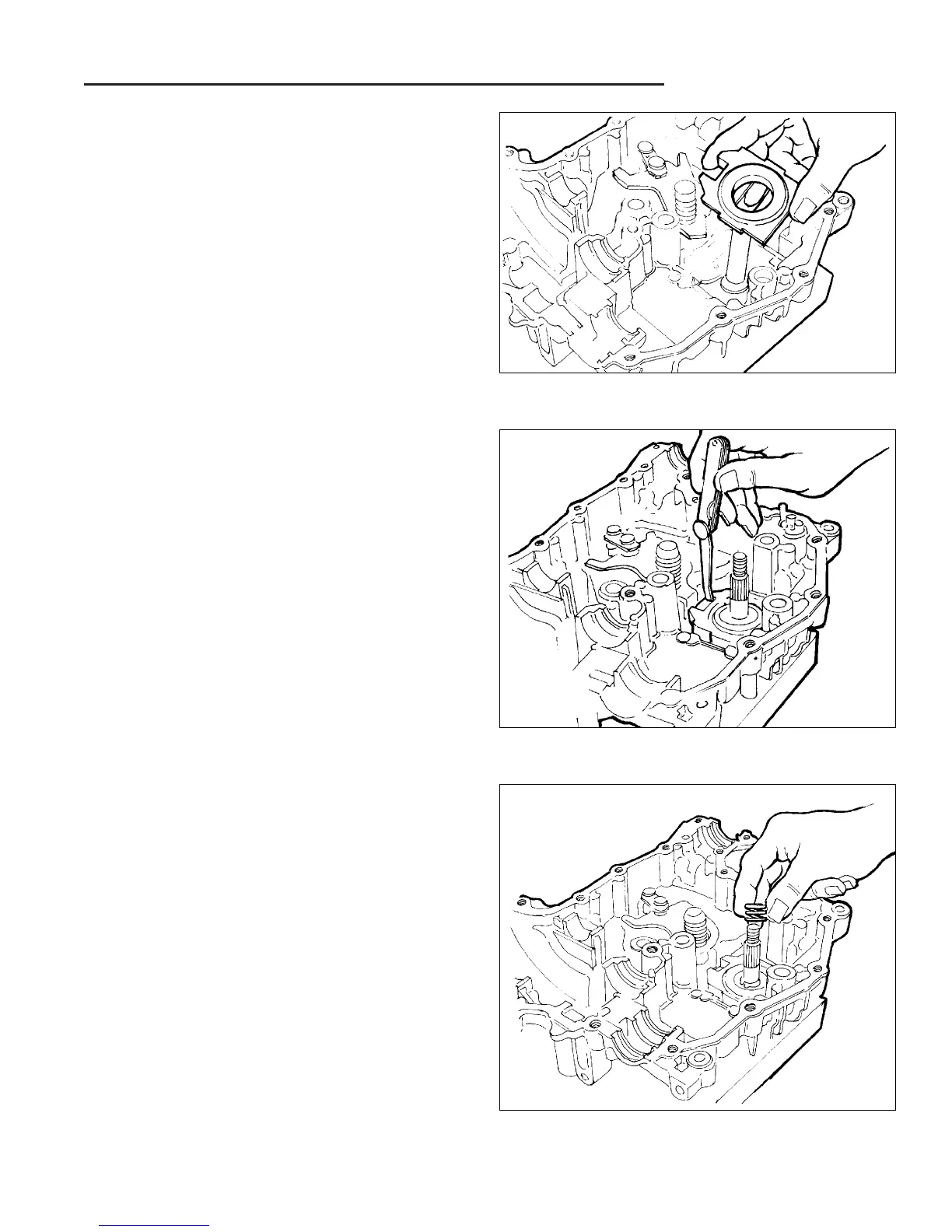

Figure C–69. Install Swash Plate
Figure C–70. Measure Shift Blocks Clearance
19. Using a feeler gauge, check the clearance between
the shift blocks and the swash plate.
Clearance: 0–0.008” (0–0.20 mm)
Clearance (max.): 0.012” (0.3 mm)
An excess amount of clearance at these points
can make it difficult or impossible to adjust neutral.
Figure C–71. Install Retaining Ring and Spring
20. Install the retaining ring on the input shaft.
21. Install the pump spring on the input shaft.
To Next Page
