7 Transmission Repair
7C Tuff Torq K60
7 - 66
15. Install the swash plate bushings into the transaxle
case. Apply transmission fluid generously to the
bushings when installed.

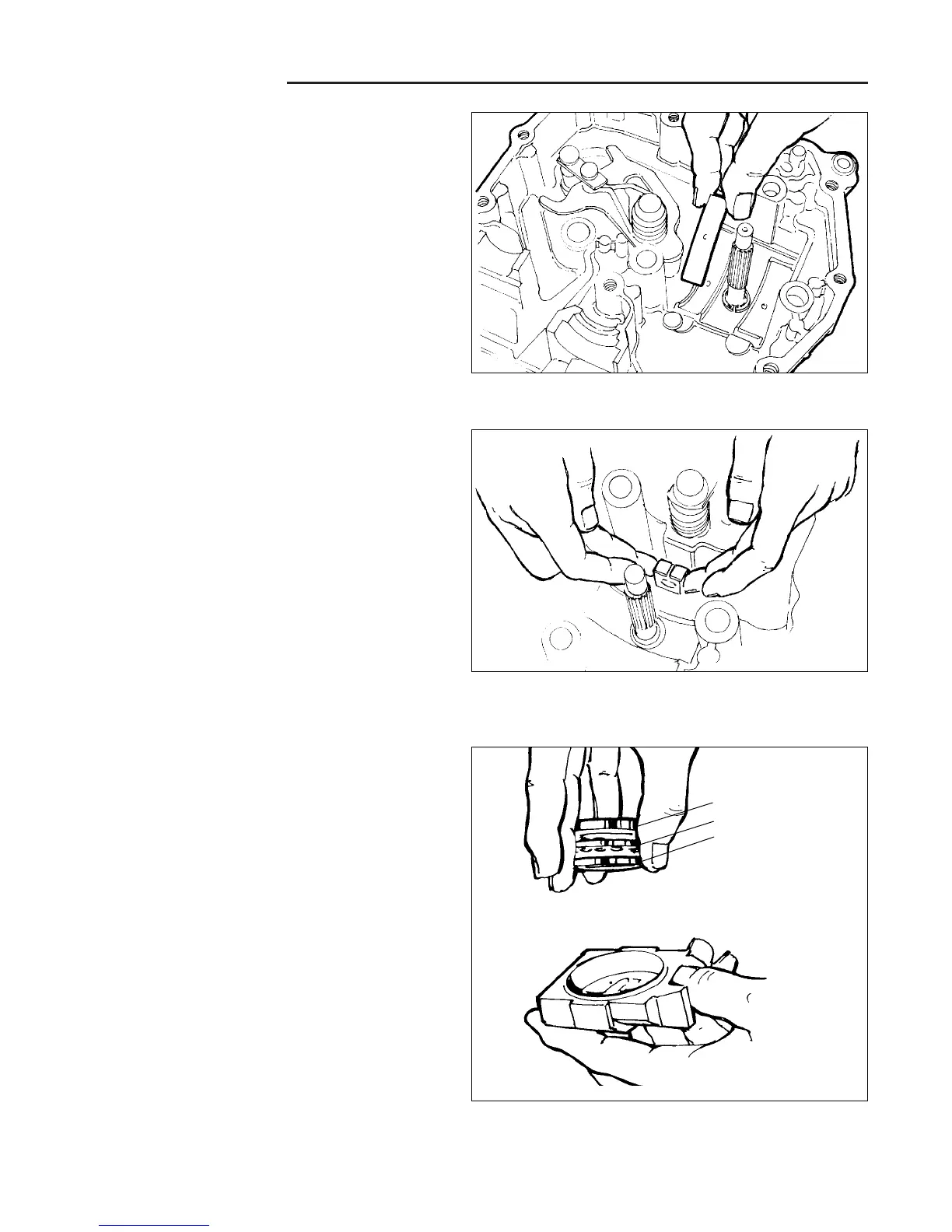

Figure C–66. Install Swash Plate Bushing
16. Apply petroleum jelly to the inside of the shift blocks
and install the blocks on the control shaft.
Figure C–67. Install Shift Blocks
Figure C–68. Install Thrust Plate
17.Install the thrust bearing into the swash plate as
shown. Apply transmission oil generously to all parts.
NOTE: Be sure to install the thin race first inside the
fixed swash plate.
Thrust Plate (Thick)
Thrust Bearing
Thrust Plate (Thin)
