7 Transmission Repair
7C Tuff Torq K60
11. Spread the torsion spring out over the fulcrum pin as
shown.

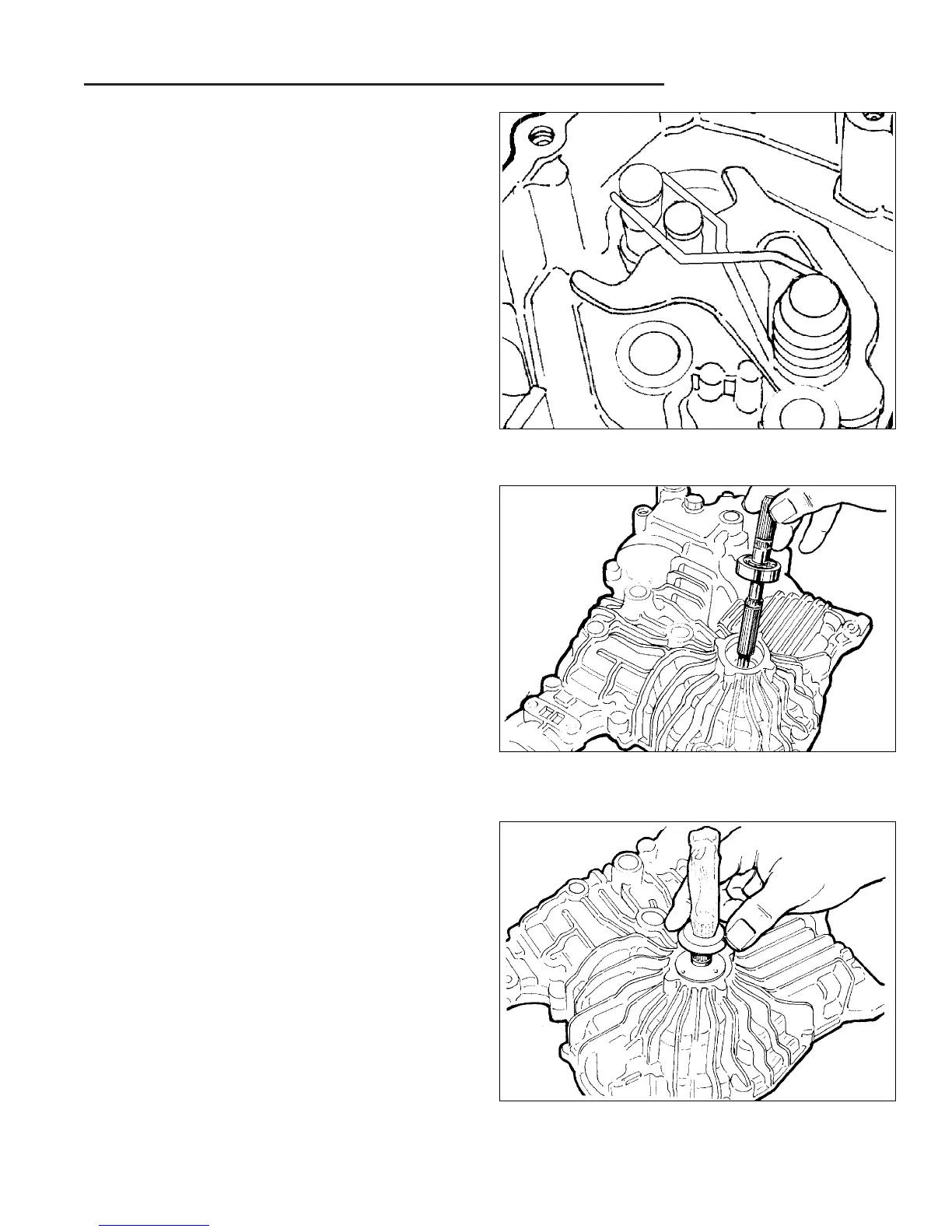

Figure C–63. Install Torsion Spring
12. Install the input shaft into the transaxle case, and
secure with a retaining ring.
Figure C–64. Install Input Shaft in Case
Figure C–65. Install Input Shaft Seal
13. Wrap tape over the splines of input shaft. Apply
grease to the shaft, tape, and lip of the input shaft
seal.
14. Install the seal over the tape using care not to dam-
age the lip of seal. Drive the seal into housing apply-
ing force only to the outside edge of the seal.
