7 Transmission Repair
7C Tuff Torq K60
7 - 72
43. Install the final pinion shaft into the transaxle case.
NOTE: Be sure flats of final pinion shaft bushing are fac-
ing up and down when seated into case.
NOTE: The large gear will have a bit of side-to-side wob-
ble; this is normal. The bevel teeth on the large gear
may face either direction.

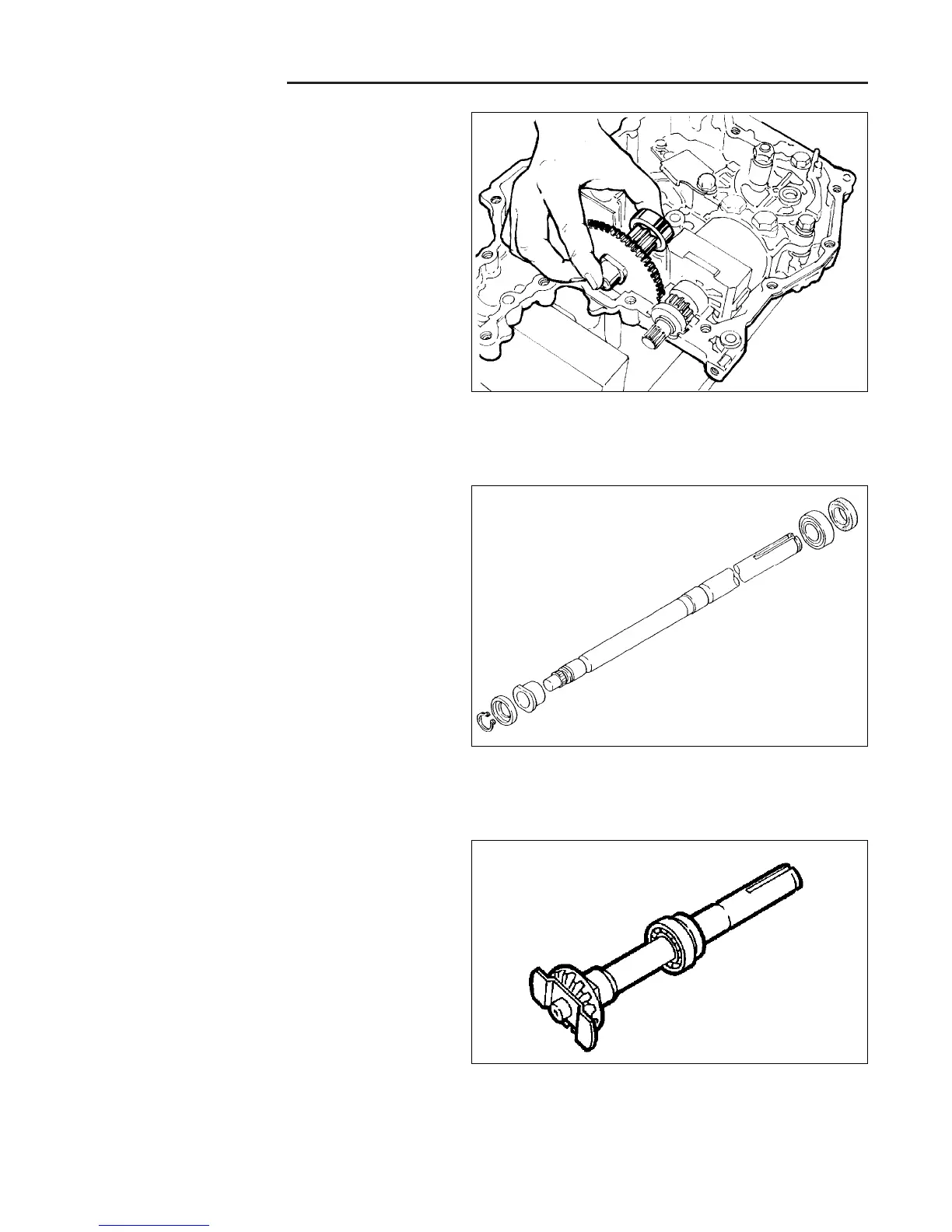

Figure C–84. Install Final Pinion Shaft
44. Install the new seals and bearings on the left and
right axle shafts (right axle shown).
NOTE: Apply grease to the lip of the seal, and install
from the smaller end of the axle shaft.
45.Install the bushing, collar (stepped notch of collar
faces center of transaxle), and retaining ring to left
and right axle shafts.
Figure C–85. Assemble Axle Shaft
46. Install the differential gear and thrust washer to the
left and right axle shafts.
Figure C–86. Install Differential Gear and Washer
To Next Page
