Simplicity LTH Series Service Manual

7 - 73
7 Transmission Repair
7C Tuff Torq K60
47. Install the two differential pinions to the pinion shaft.

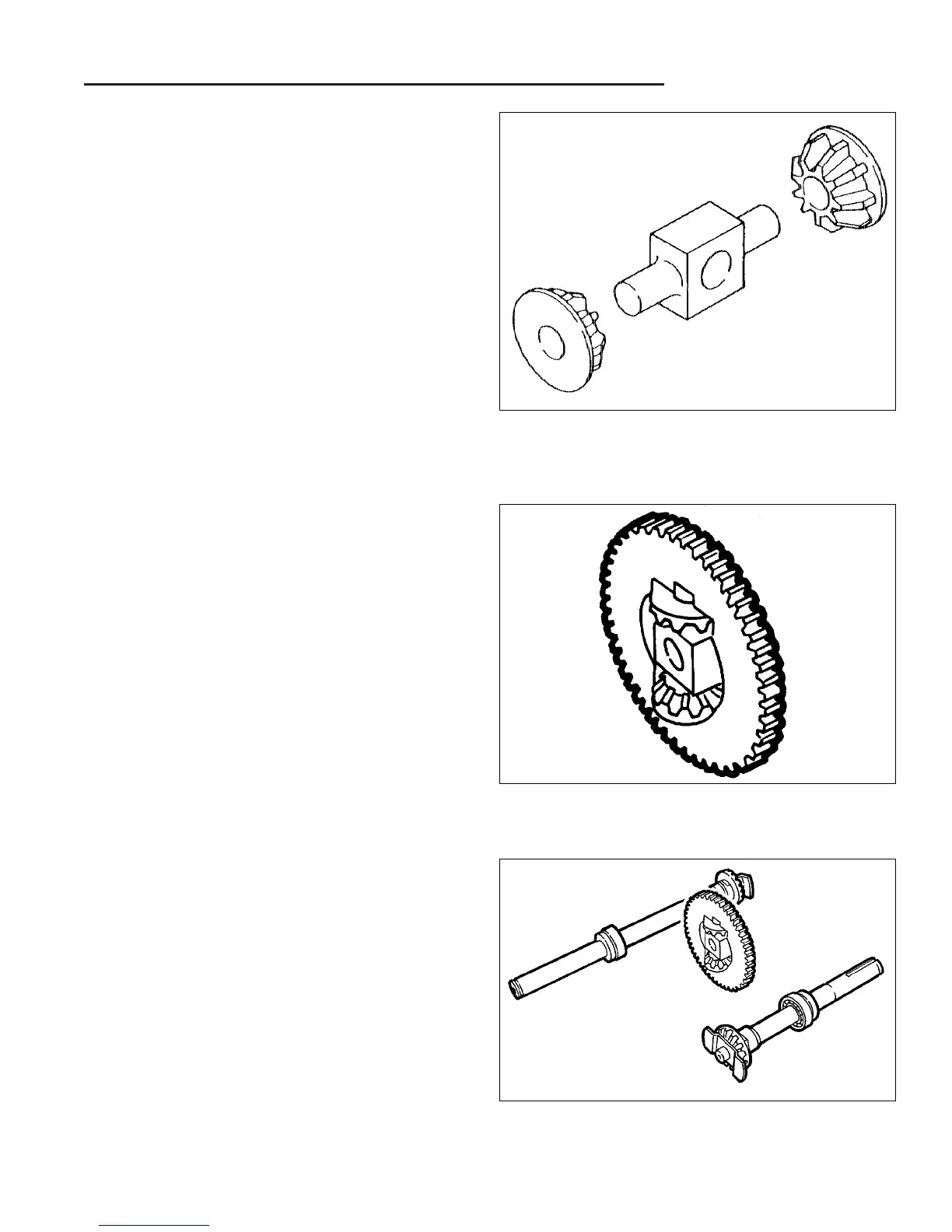

Figure C–87. Install Pinion Gears
Figure C–88. Assemble Pinion Gears
48. Install the pinion assembly into the center of the axle
gear.
Figure C–89. Assemble Axles to Gear
49. Install the assembled axle shafts to the differential
gear assembly. Stand one axle on end to assemble
the differential. If the differential does not rotate
freely, check the position of the thrust washers.
