7 Transmission Repair
7C Tuff Torq K60
7 - 74
50. Apply silicone sealant in double grooves of transaxle
case bore where left and right axle seals contact
case.
51. Install axle assembly into transaxle case being sure
seals and bearings drop into proper bores in case.
52. Turn bushings on left and right axle shafts so that
machined flats are facing up and down to match flats
on transaxle case. Turn the axle by hand to make
sure all gears turn properly.

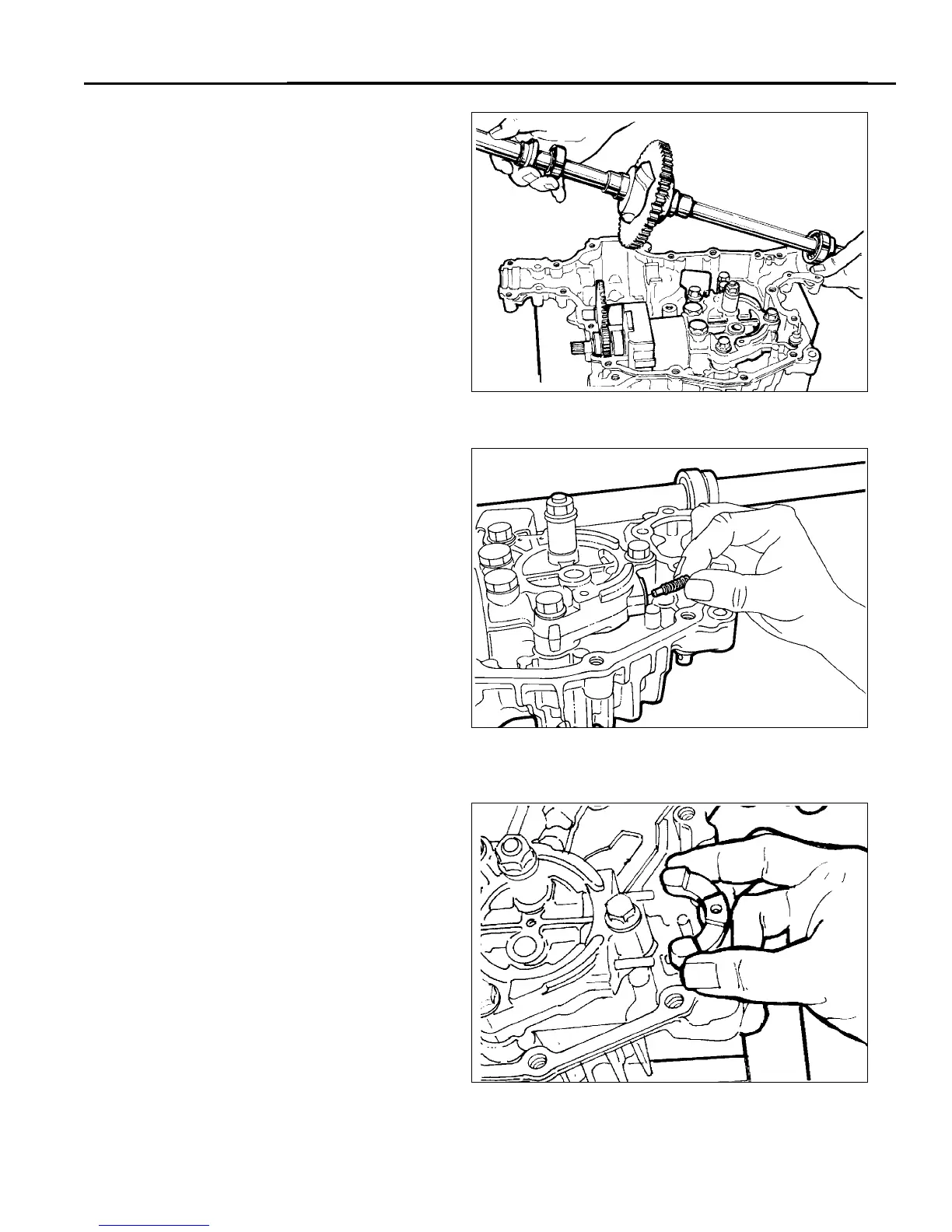

Figure C–90. Install Axle In Transaxle Case
53. Install bypass valves, caps, pins and springs if not
previously done.
54. Install bypass arm on pin on bypass shaft. Check for
free movement of arm and pins into pump.
Figure C–92. Install Bypass Arm
Figure C–91. Install Bypass Valve
