7 Transmission Repair
7D Hydro-Gear 0750 / 0800
7 - 92
11. Install the washers and a new lip seal onto the motor
shaft. Install one washer on each side of the retain-
ing ring.
12. Install the motor shaft into the center section.

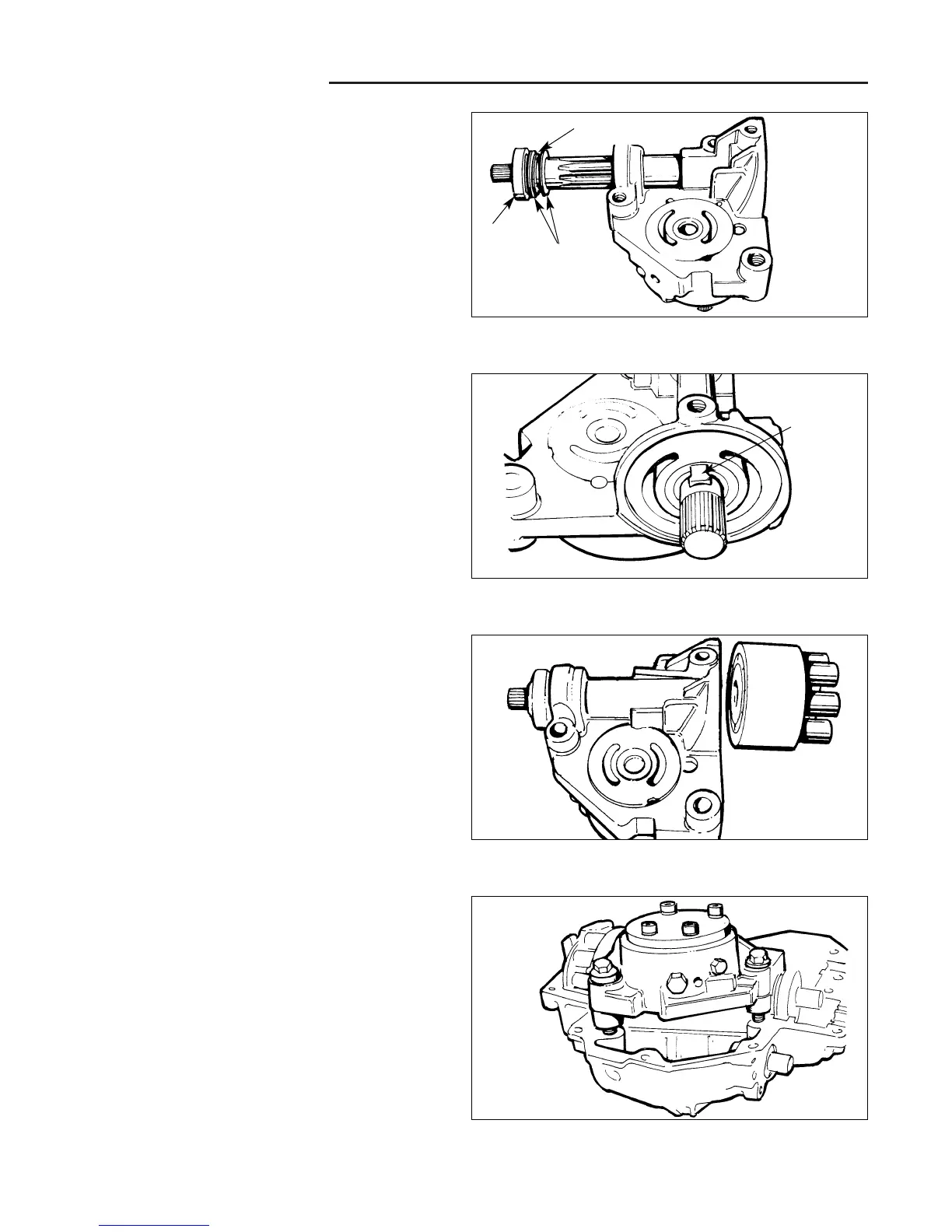

Figure D–32. Install Motor Shaft
Figure D–33. Install Bypass Plate
Figure D–34. Install Motor Block Kit
Figure D–35. Position Center Section Assembly
13. Install the bypass plate (small end first) into the center
section.
14.Lubricate the running faces and install the motor
block kit onto the motor shaft.
15. Position the washers and seal and install the center
section assembly onto the aligning pins and pump
input shaft.
Note: Be sure the center section is completely seated by
hand. Do not pull the section down with the cap-
screws. If the center section cannot be be pushed
down by hand, remove the center section and check
the alignment of the bypass actuator; otherwise dam-
age to the to the bypass plate will occur.
