Simrad AP25 Autopilot

100 20221495F

4.4 Dockside settings

Note ! If the autopilot has no rudder feedback unit installed (configured

for Virtual feedback), refer to the Dockside settings on page

109-

112.

The following menu items are accessible and can be set up in the

Dockside Menu:

• Boat type

• Drive Unit voltage

• Rudder Feedback calibration

• Rudder test

• Motor drive output

• Drive engage

• Rudder deadband

When Sail is selected as Boat type the following menu items are

also accessible in the Dockside Menu:

• Wind setup

• Min. wind angle

If Wind setup is set to RACING the following items are added to

the menu.

• Separate (port, stbd) wind angle limits

• Tack angle

• Tack time

• Wind shift limit

Select STANDBY mode and enter the Installation Menu as

previously described. Select Dockside by pressing STBD button

and confirm by rotating the course knob clockwise.

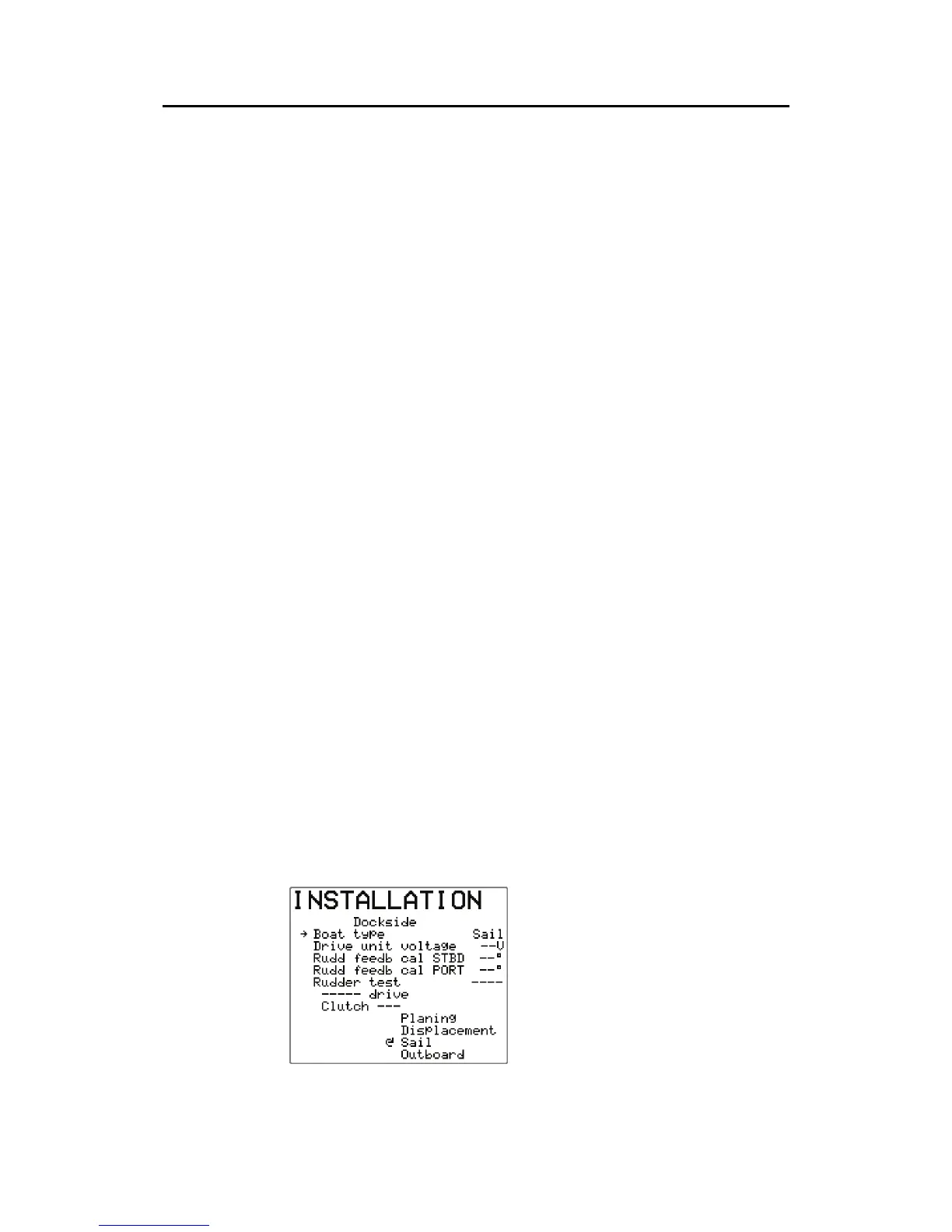

Boat type

Actual boat type is selected by

turning the rotary course knob. The

options are: Planing, Displacement,

Sail and Outboard.

Type of boat selected will affect the

steering parameters, and the

functions available in the autopilot

system. Select appropriate Boat

type and press STBD button.
