two washers and the cap nut provided. Adjust the location of the
LF3000 Linear Feedback to allow full travel of the hydraulic
cylinder without causing the retainer plate to hit the end of the
cylinder. Check that the outboard motor can be tilted freely.
Tighten all nuts and the mounting bracket.
Turn the helm slowly by hand to the stop on either side, check that
the rod does not bind up in any direction. Make a “drip nose” (c)
on the cable to the unit and clamp the cable to allow full engine
movement to port and starboard.
LF3000
BRACKET
CYLINDER
(END VIEW)
RETAINER PLATE
LOCK NUT
FLAT WASHERS (2)
LF3000
LINEAR FEEDBACK
ALLEN HEX SCREWS (2)
FLAT WASHERS (2)
MOUNTING BRACKET
CLAMPS (2 HALVES)

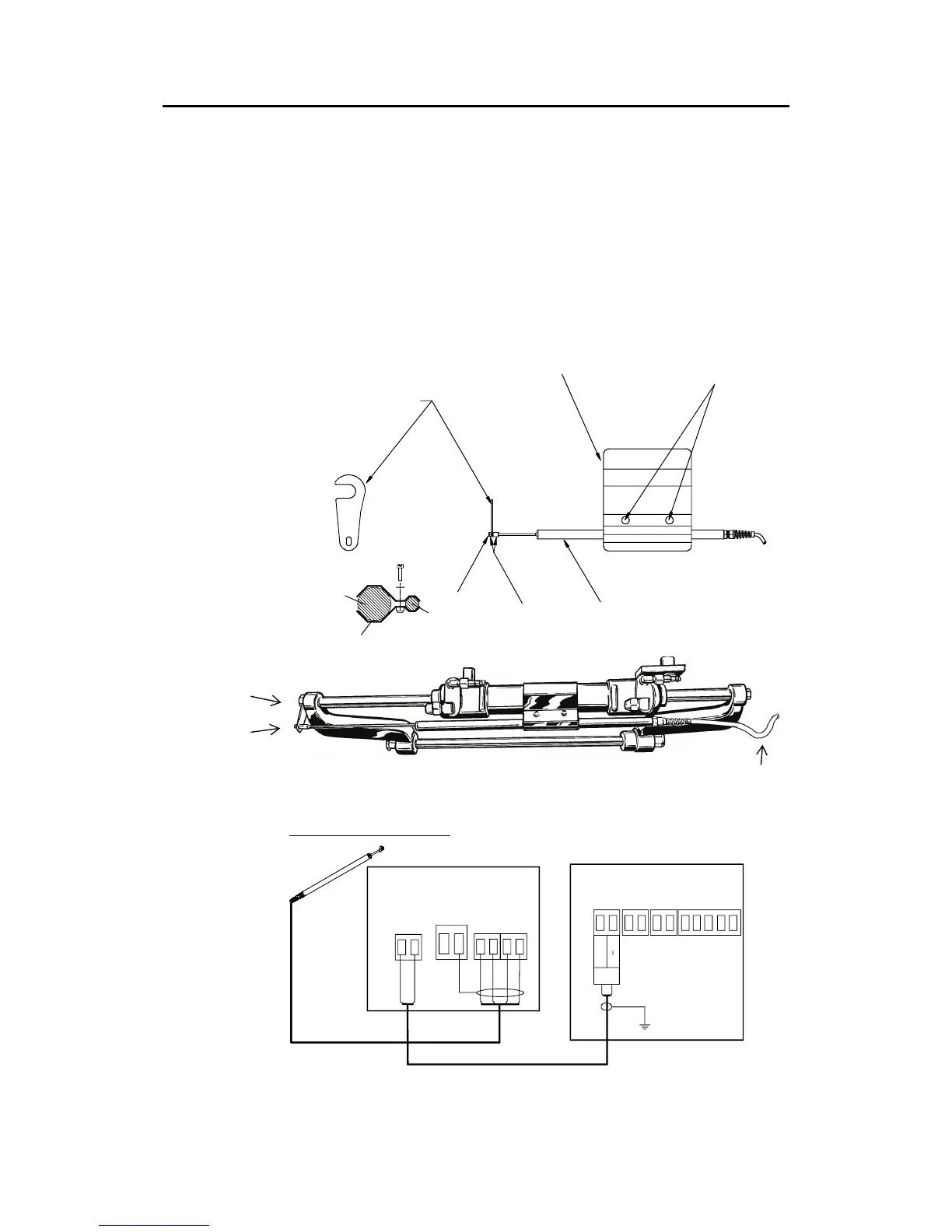

Figure 3-29 LF3000 mounting
Electrical connection
AUTOPILOT COMPUTER
MAIN PCB
RF
RF+
Rudder
Feedb.
LFI3000 Mk2
LINEAR FEEDBACK
INTERFACE
TB1
White
Brown
TB2
White
Brown
Green
Yellow
Figure 3-30 LF3000/LFI3000 Mk2 connections
